Combination ratchet wrenches
Combination ratchet wrenches

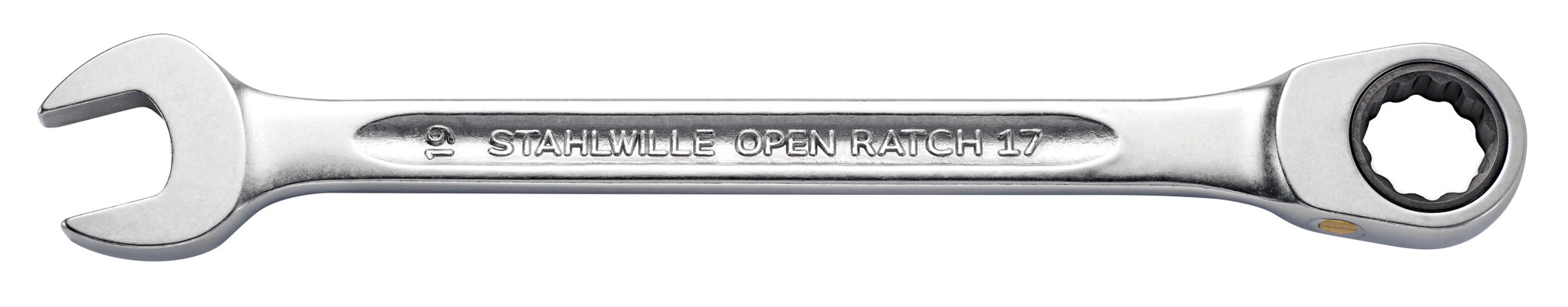

OPEN RATCH 17F
- Premium quality metric combination ratcheting wrenches.
- The integrated ratchet with 72 teeth makes it possible to ratchet at an angle of just 5°.
- The flat design makes it easier to work in tight spaces.
- Easy direction change by simply flipping the wrench over.
- The distinctive STAHLWILLE rounded finish ensures the combination ratcheting wrench is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands.
Produktvideo
Produkt-Varianten

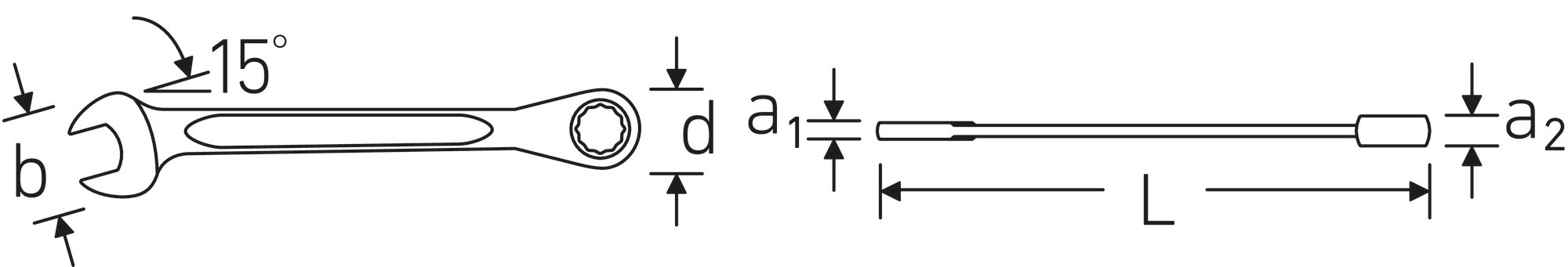

| Product no. | Model | Size 1 [mm] | Size 2 [mm] | Length mm (L) | Width mm (b) | Number of teeth | Working angle | d | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 40170808 | OPEN RATCH 17F | 8 mm | 8 mm | 145 mm | 15 mm | 72 | 5 ° | 18,0 mm | 38 g | Jetzt entdecken |
| 40170909 | OPEN RATCH 17F | 9 mm | 9 mm | 150 mm | 20 mm | 72 | 5 ° | 19,5 mm | 50 g | Jetzt entdecken |
| 40171010 | OPEN RATCH 17F | 10 mm | 10 mm | 160 mm | 20 mm | 72 | 5 ° | 21,0 mm | 58 g | Jetzt entdecken |
| 40171111 | OPEN RATCH 17F | 11 mm | 11 mm | 165 mm | 20 mm | 72 | 5 ° | 22,0 mm | 69 g | Jetzt entdecken |
| 40171212 | OPEN RATCH 17F | 12 mm | 12 mm | 170 mm | 25 mm | 72 | 5 ° | 23,5 mm | 88 g | Jetzt entdecken |
| 40171313 | OPEN RATCH 17F | 13 mm | 13 mm | 180 mm | 25 mm | 72 | 5 ° | 25,0 mm | 98 g | |
| 40171414 | OPEN RATCH 17F | 14 mm | 14 mm | 185 mm | 25 mm | 72 | 5 ° | 26,5 mm | 115 g | Jetzt entdecken |
| 40171515 | OPEN RATCH 17F | 15 mm | 15 mm | 200 mm | 30 mm | 72 | 5 ° | 28,0 mm | 133 g | Jetzt entdecken |
| 40171616 | OPEN RATCH 17F | 16 mm | 16 mm | 225 mm | 30 mm | 72 | 5 ° | 29,0 mm | 154 g | Jetzt entdecken |
| 40171717 | OPEN RATCH 17F | 17 mm | 17 mm | 230 mm | 35 mm | 72 | 5 ° | 30,5 mm | 176 g | Jetzt entdecken |
| 40171818 | OPEN RATCH 17F | 18 mm | 18 mm | 240 mm | 40 mm | 72 | 5 ° | 32,0 mm | 210 g | Jetzt entdecken |
| 40171919 | OPEN RATCH 17F | 19 mm | 19 mm | 255 mm | 40 mm | 72 | 5 ° | 34,0 mm | 241 g | Jetzt entdecken |
| 40172121 | OPEN RATCH 17F | 21 mm | 21 mm | 275 mm | 42 mm | 72 | 5 ° | 38,0 mm | 283 g | Jetzt entdecken |
| 40172222 | OPEN RATCH 17F | 22 mm | 22 mm | 285 mm | 45 mm | 72 | 5 ° | 41,0 mm | 343 g | Jetzt entdecken |
| 40172424 | OPEN RATCH 17F | 24 mm | 24 mm | 295 mm | 47 mm | 72 | 5 ° | 45,0 mm | 447 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Offset Shaft Design
Eigenschaften
- metric, identical end sizes
- flat version

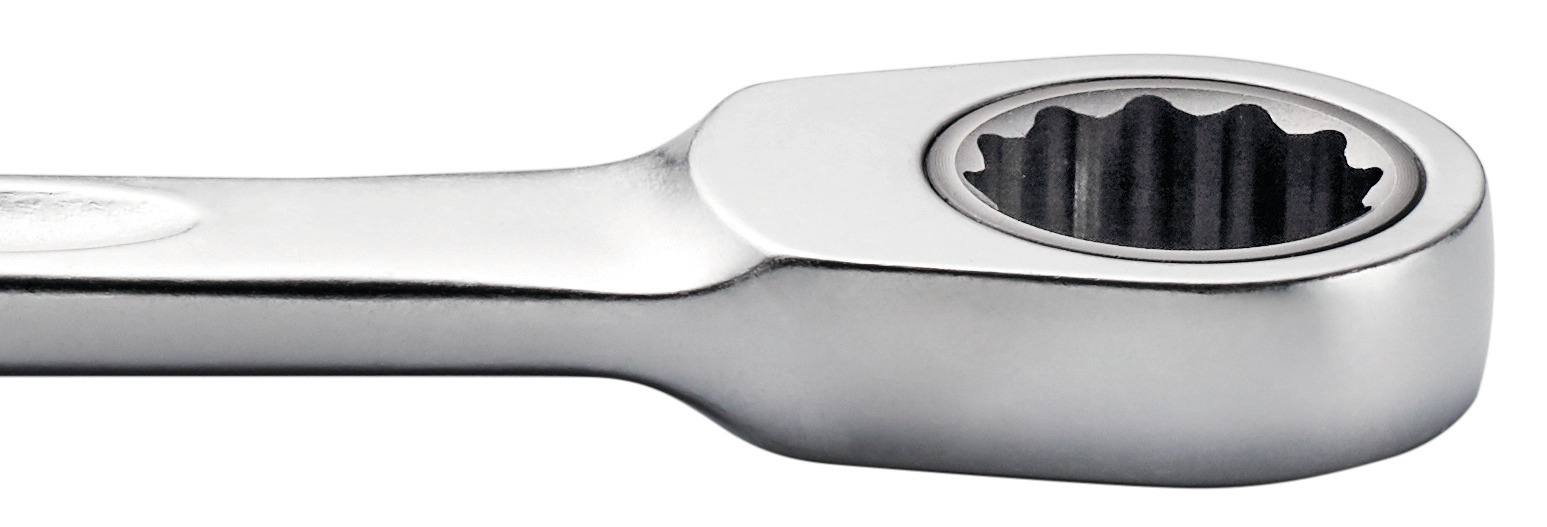

- ring with bi-hex
- jaw angled 15°
- integrated ratchet with 72 teeth, with a working angle of 5°
- change direction by flipping the wrench over
- reinforced connection between jaw and shaft
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
Produkt-Highlights

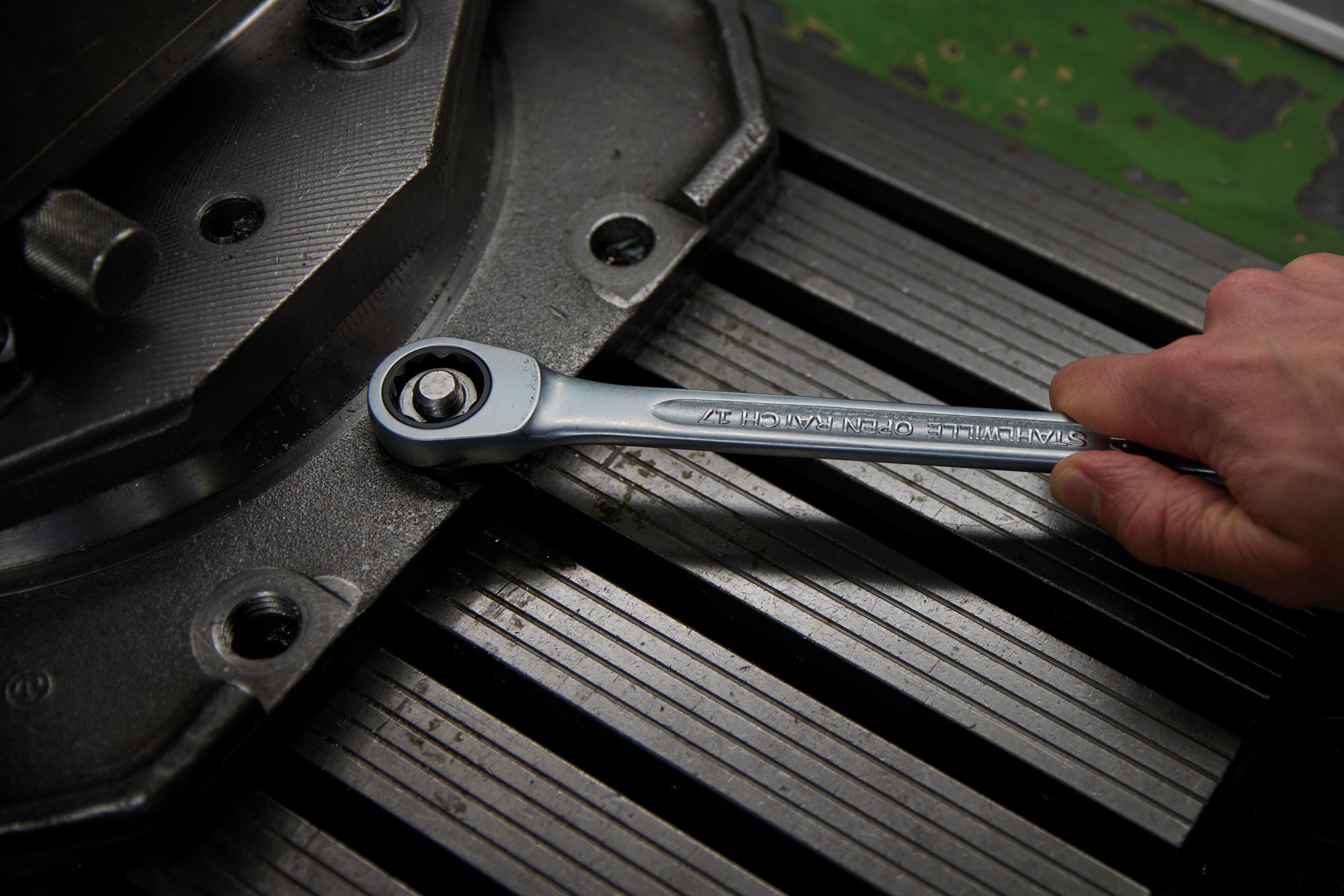

Integrated ratchet.
Our combination ratcheting wrenches have an integrated fine-toothed ratchet. You do not need to change your grip or remove and reattach the tool multiple times. The bolt can be tightened quickly and efficiently without stopping, as when using a ratchet.
For tight installation spaces.
The flat design of the combination ratcheting wrench makes it easier to work in tight spaces.
Excellent workmanship.
Our wrenches are made from high-quality forged chrome alloy steel, giving them outstanding robustness and durability, even in continuous and prolonged use. The also have a corrosion-resistant chrome-plated finish.
Non-slip surface.
The STAHLWILLE wrenches have a high-quality surface structure with a good grip, which even allows you to work safely and securely with oily hands. The non-slip property increases handling control.
A solution for every situation.
Our combination ratcheting wrenches are available in different versions (metric, imperial, angled, flat) and as sets in tool rolls or TCS inlays.
