Ratchet wrench
Ratchet wrench

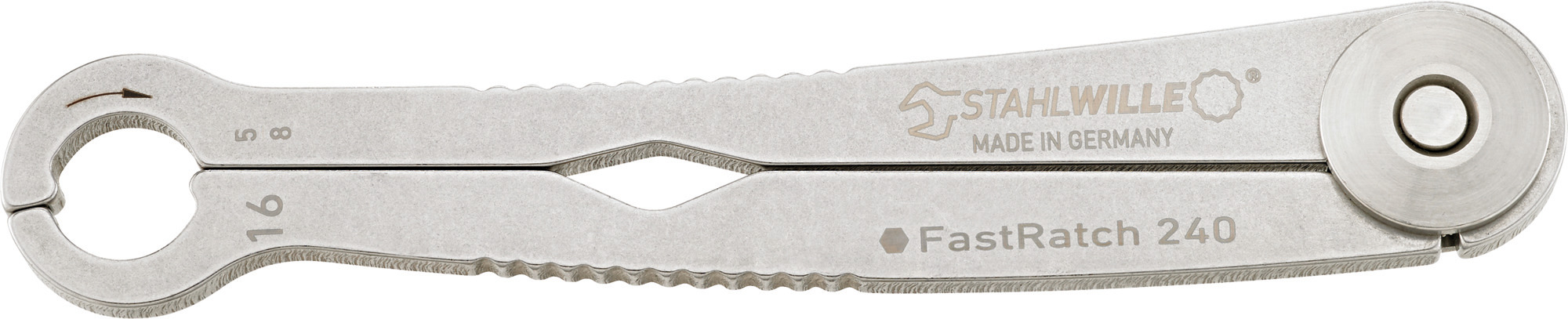

FastRatch 240
- Unrivalled ratchet spanner FastRatch – ; Length 191,3 mm; 41101616.
- Thanks to the patented technology of the “opening ring”, it can operate without any problems even in installation positions that are difficult to access, e.g., cable glands.
- Universal use for metric and imperial screw connections.
- Thanks to the integrated closing spring, it reliably grips rounded screws and nuts, even when tension is relieved.
- High quality: the ratchet spanner is made of stainless, tempered steel.
Produkt-Varianten
| Product no. | Wrench width 1 [mm] | Wrench width 1 [inch] | Length mm (L) | Width mm (b) | a | Weight | |
|---|---|---|---|---|---|---|---|
| 41100808 | 8 mm | 5/16 " | 121,4 mm | 16 mm | 4 mm | 60 g | Jetzt entdecken |
| 41101010 | 10 mm | 3/8 " | 133,3 mm | 20 mm | 4 mm | 70 g | Jetzt entdecken |
| 41101111 | 11 mm | 7/16 " | 140,4 mm | 23 mm | 5 mm | 103 g | Jetzt entdecken |
| 41101212 | 12 mm | 15/32 " | 146,3 mm | 25 mm | 5 mm | 100 g | Jetzt entdecken |
| 41101313 | 13 mm | 1/2 " | 168,4 mm | 26.8 mm | 6 mm | 154 g | Jetzt entdecken |
| 41101414 | 14 mm | 9/16 " | 174,6 mm | 29.6 mm | 6 mm | 180 g | Jetzt entdecken |
| 41101616 | 16 mm | 5/8 " | 191,3 mm | 32.8 mm | 7 mm | 270 g | |
| 41101717 | 17 mm | 21/32 " | 201,7 mm | 34.3 mm | 7 mm | 292 g | Jetzt entdecken |
| 41101818 | 18 mm | 11/16 " | 212,8 mm | 36.2 mm | 7 mm | 310 g | Jetzt entdecken |
| 41101919 | 19 mm | 3/4 " | 238,5 mm | 38.5 mm | 7 mm | 367 g | Jetzt entdecken |
Eigenschaften
- patented
- particularly suitable for union nuts

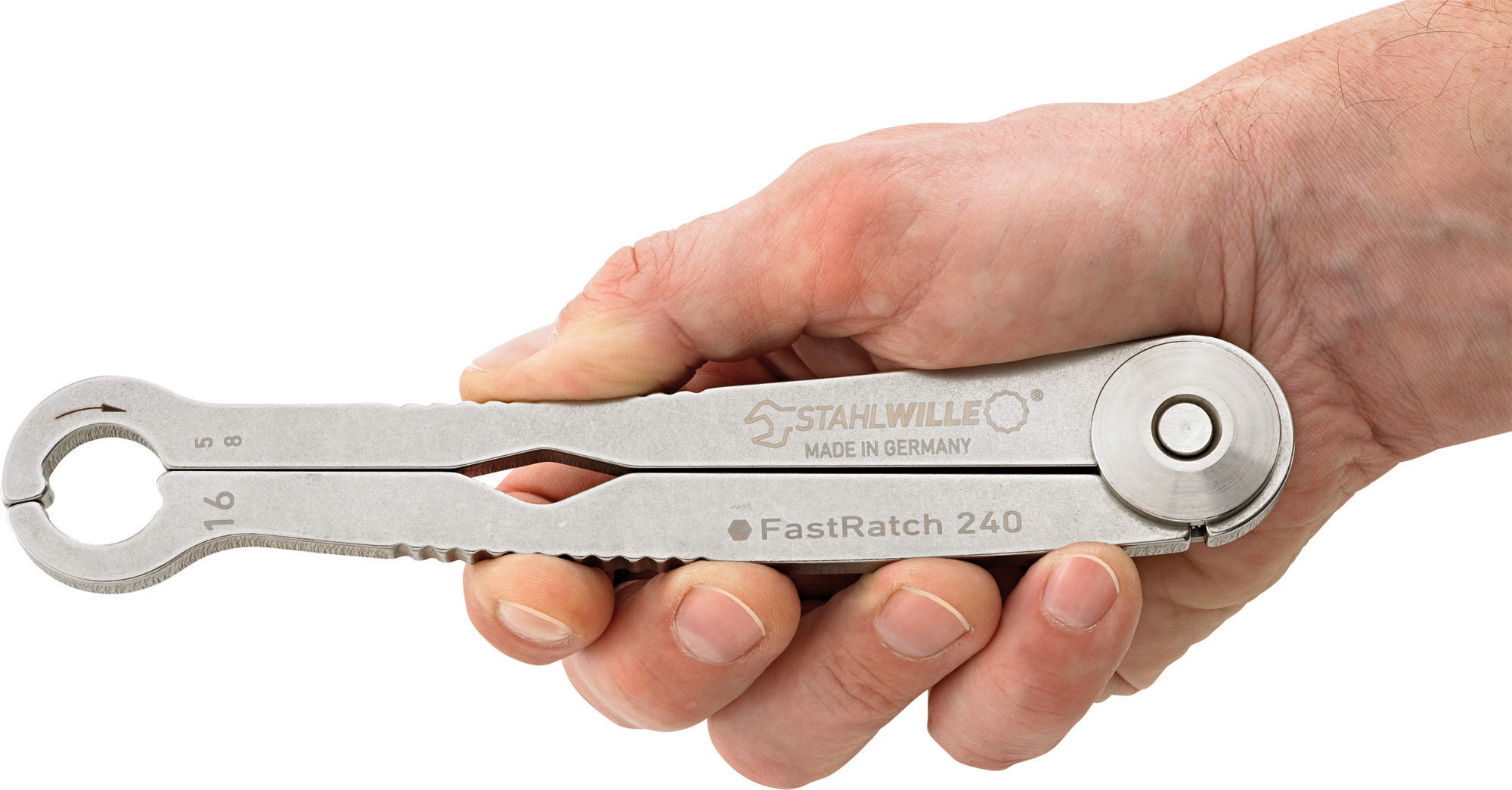

- slim ergonomic design
- made from stainless, tempered steel
- German utility model (DBGM)
Produkt-Highlights
Three in one.
The ratchet wrench is multifunctional: a combination of ring wrench, open-ended wrench and a ratchet for the highest degree of technical flexibility and reliability when carrying out work processes.
Fixed self-clamping effect.
The bolt profile consists of hinged jaws that tighten when torque is applied, transferring force to the flanks of the bolt head. The ratchet wrench's closing mechanism ensures a secure and centred fit on the bolt. When unloaded, the integrated closing spring provides a reliable connection between the tool and the bolt.
Easy to use.

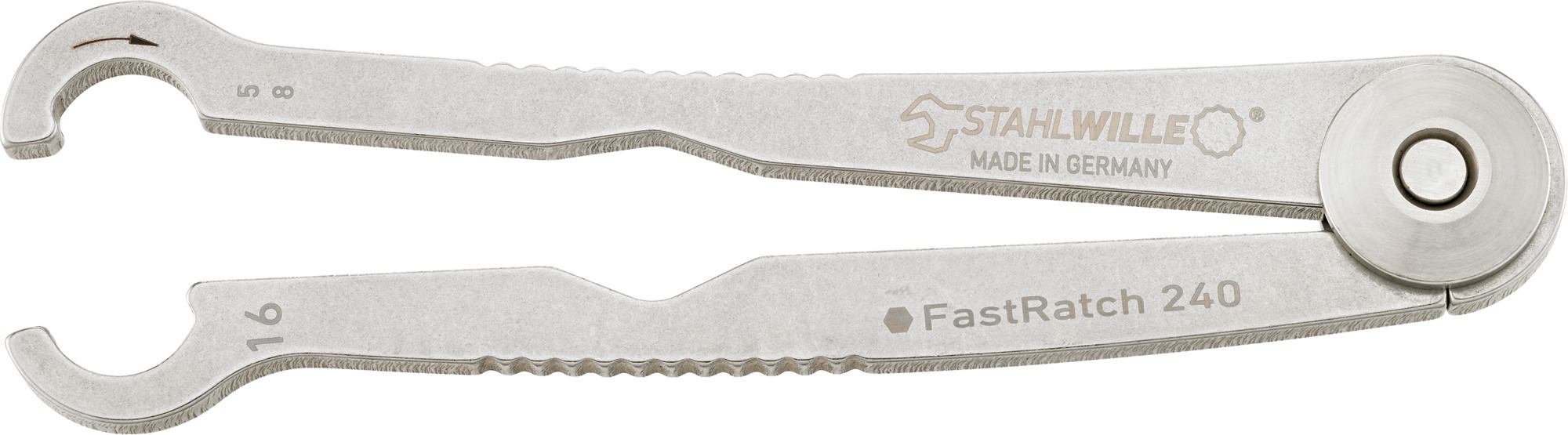

Light pressure on the thumb release opens the wrench, allowing it to be slid sideways onto the hex bolt. The arrow marking on the wrench head indicates the direction of operation.
The tool is made of high-quality stainless steel, which gives it outstanding stability and resistance to continuous use.
Wide range of applications.
Thanks to the patented system and ergonomic shape, it is ideal for tightening bolts on brake lines, tie rods, exhaust gas temperature sensors, diesel fuel lines or air conditioning pressure sensors.
