Ratchet wrench
Ratchet wrench

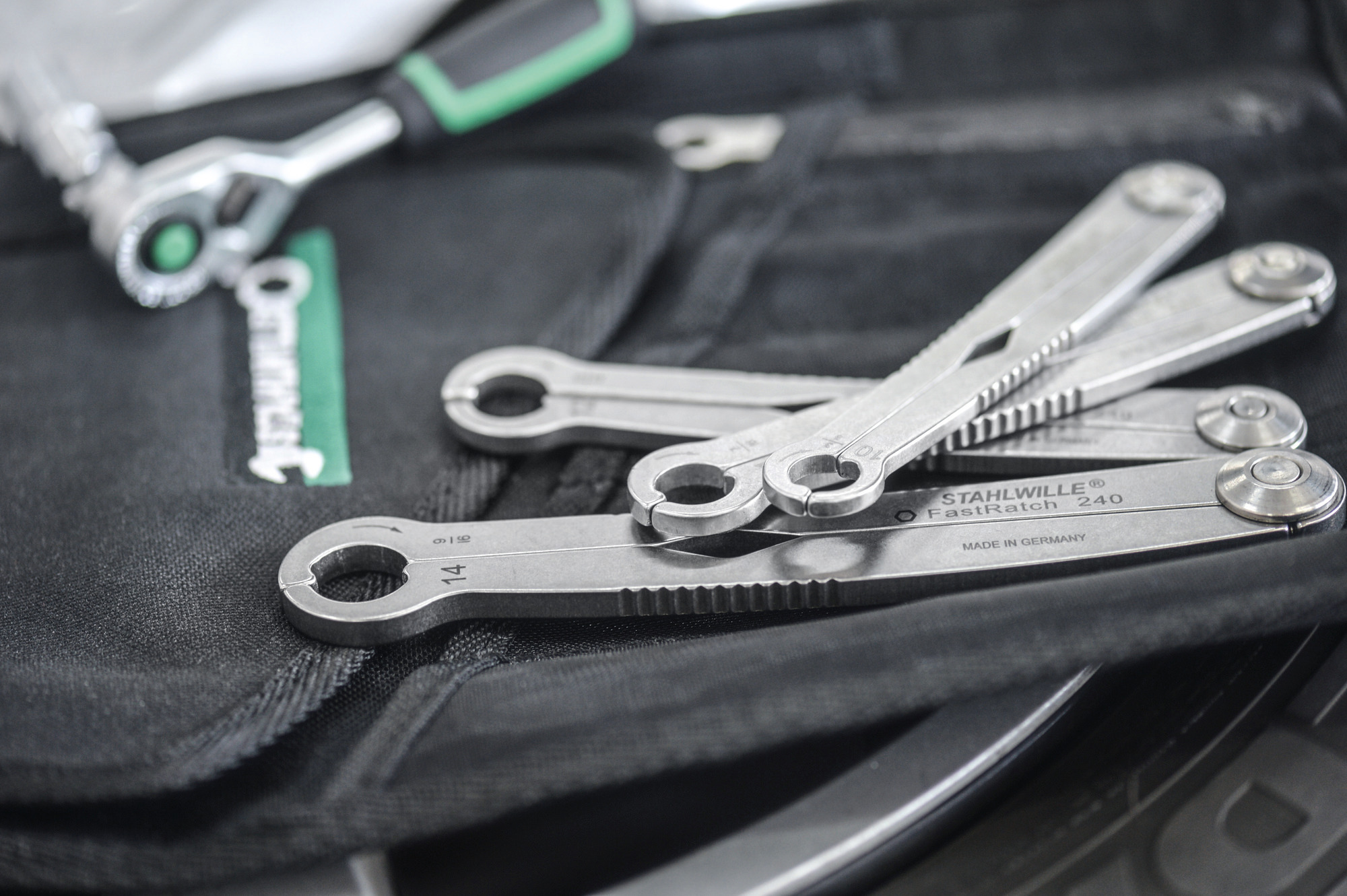

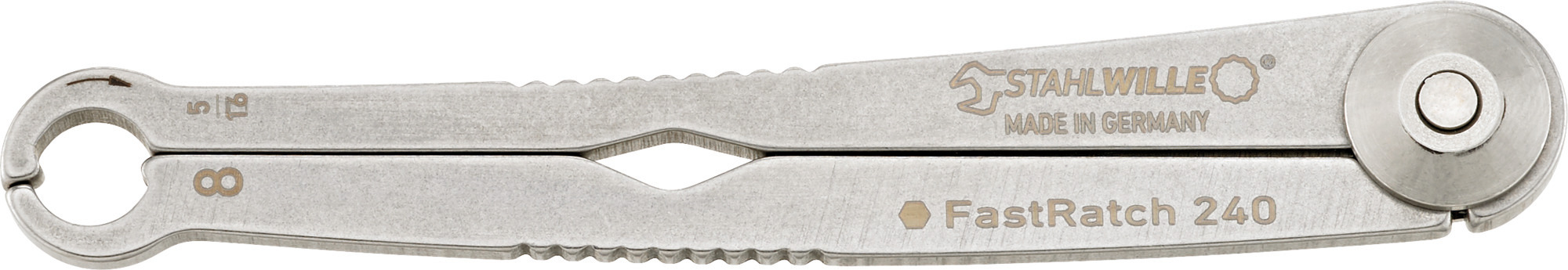

FastRatch 240
- Unrivalled FastRatch ratchet spanner for hexagon union nuts.
- Combines the advantages of several tools: Centering on the screw head of a ring spanner, lateral fitting of an open-ended spanner and the convenient ratcheting of a ratchet spanner.
- Thanks to the patented technology of the ‘opening ring’ it can perform perfectly, even in tight spaces which are difficult to access such as cable screw connections.

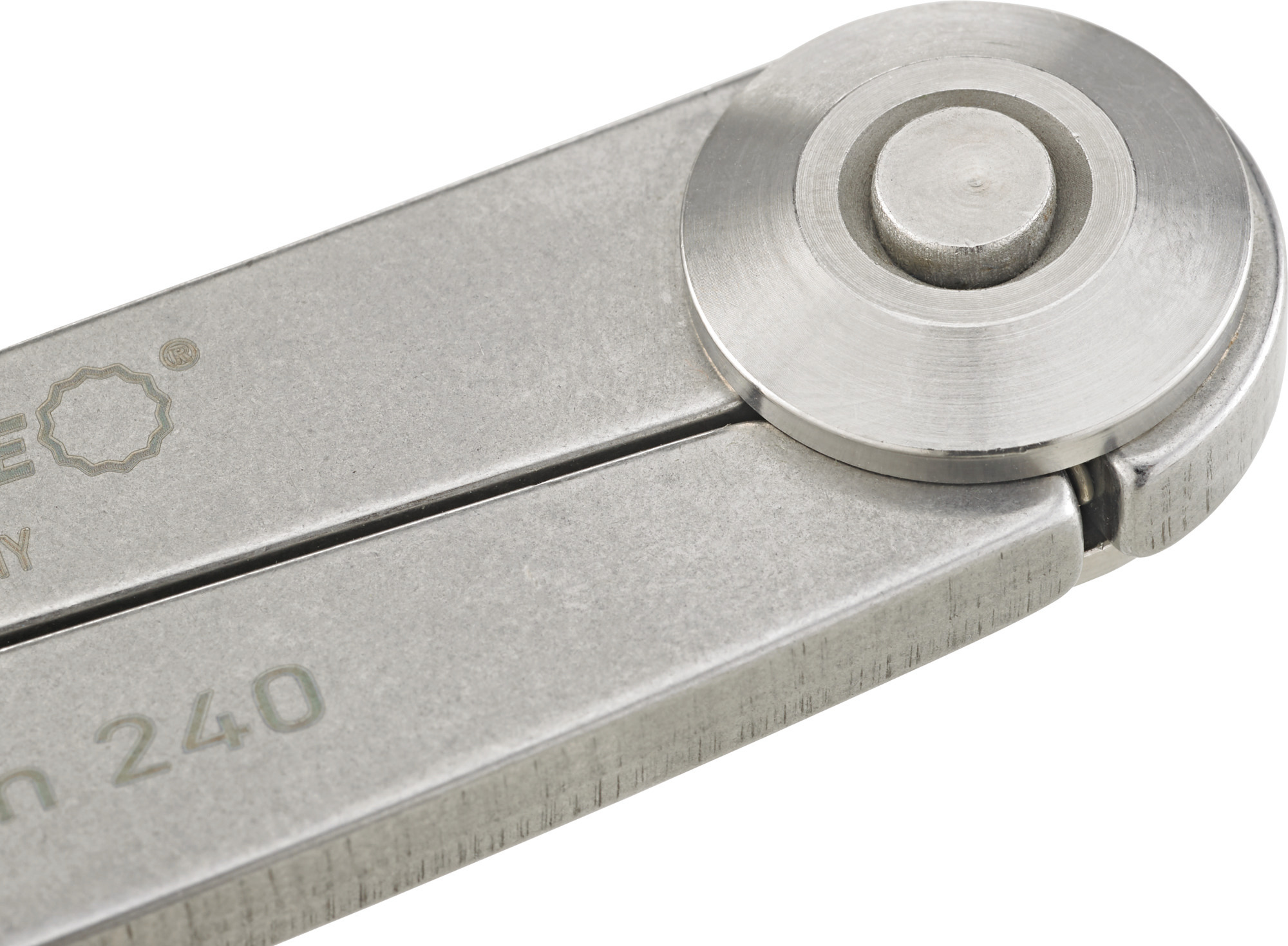

- Precise self-clamping effect: Jointed shanks with a spring system and an integrated thumb opening aid distribute the force evenly over the flanks.

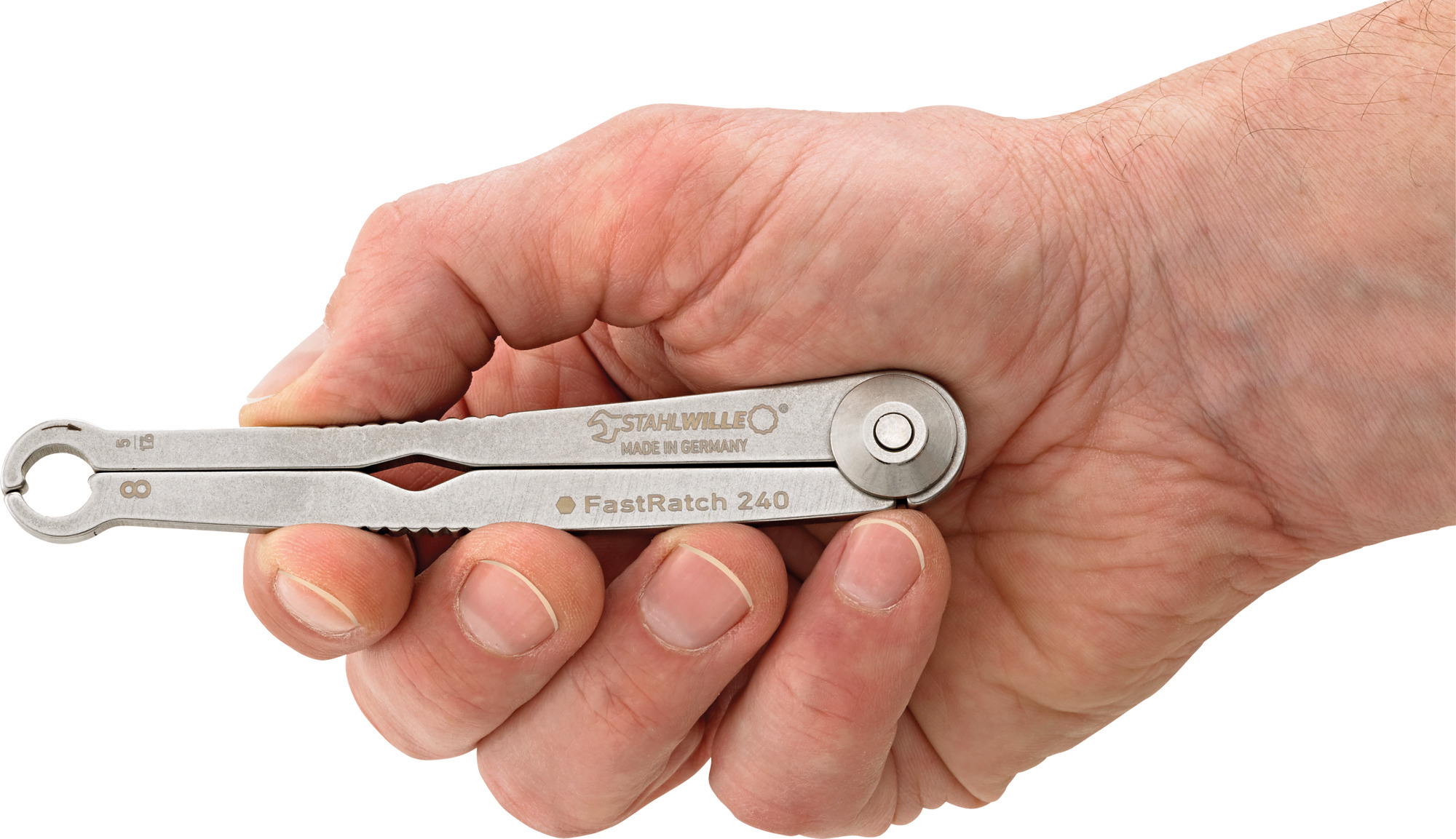

- The distinctive STAHLWILLE rounded finish ensures the combination ratcheting spanner is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands.
Produkt-Varianten
| Product no. | Model | Wrench width 1 [mm] | Wrench width 1 [inch] | Length mm (L) | Width mm (b) | a | Weight | |
|---|---|---|---|---|---|---|---|---|
| 41100808 | FastRatch 240 | 8 mm | 5/16 " | 121,4 mm | 16 mm | 4 mm | 60 g | |
| 41101010 | FastRatch 240 | 10 mm | 3/8 " | 133,3 mm | 20 mm | 4 mm | 70 g | Jetzt entdecken |
| 41101111 | FastRatch 240 | 11 mm | 7/16 " | 140,4 mm | 23 mm | 5 mm | 103 g | Jetzt entdecken |
| 41101212 | FastRatch 240 | 12 mm | 15/32 " | 146,3 mm | 25 mm | 5 mm | 100 g | Jetzt entdecken |
| 41101313 | FastRatch 240 | 13 mm | 1/2 " | 168,4 mm | 26,8 mm | 6 mm | 154 g | Jetzt entdecken |
| 41101414 | FastRatch 240 | 14 mm | 9/16 " | 174,6 mm | 29,6 mm | 6 mm | 180 g | Jetzt entdecken |
| 41101616 | FastRatch 240 | 16 mm | 5/8 " | 191,3 mm | 32,8 mm | 7 mm | 270 g | Jetzt entdecken |
| 41101717 | FastRatch 240 | 17 mm | 21/32 " | 201,7 mm | 34,3 mm | 7 mm | 292 g | Jetzt entdecken |
| 41101818 | FastRatch 240 | 18 mm | 11/16 " | 212,8 mm | 36,2 mm | 7 mm | 310 g | Jetzt entdecken |
| 41101919 | FastRatch 240 | 19 mm | 3/4 " | 238,5 mm | 38,5 mm | 7 mm | 367 g | Jetzt entdecken |
Eigenschaften
- patented
- particularly suitable for union nuts
- slim ergonomic design
- made from stainless, tempered steel
- German utility model (DBGM)
Produkt-Highlights
Three in one.
The ratchet wrench is multifunctional: a combination of ring wrench, open-ended wrench and a ratchet for the highest degree of technical flexibility and reliability when carrying out work processes.
Fixed self-clamping effect.

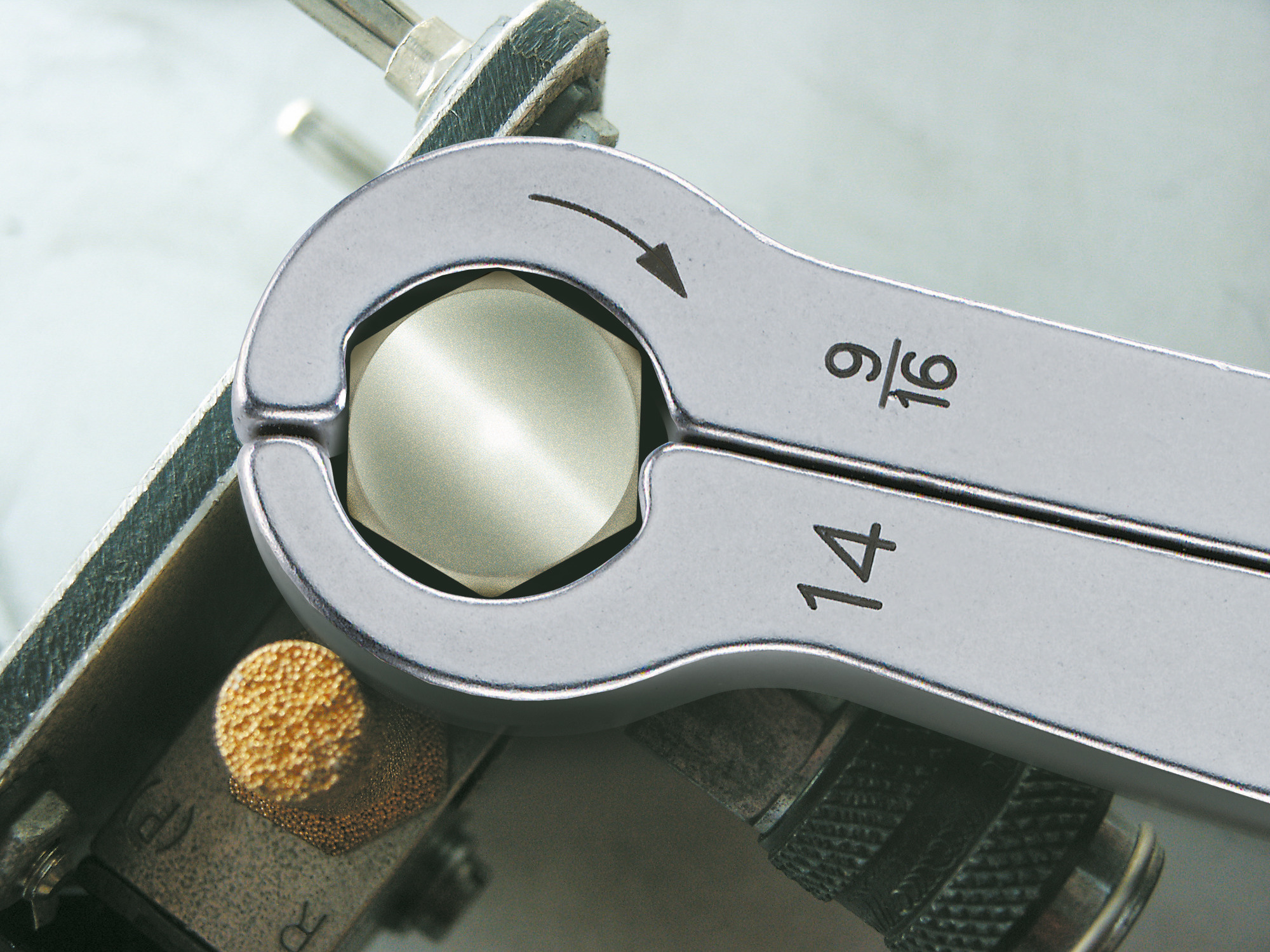

The bolt profile consists of hinged jaws that tighten when torque is applied, transferring force to the flanks of the bolt head. The ratchet wrench's closing mechanism ensures a secure and centred fit on the bolt. When unloaded, the integrated closing spring provides a reliable connection between the tool and the bolt.
Easy to use.

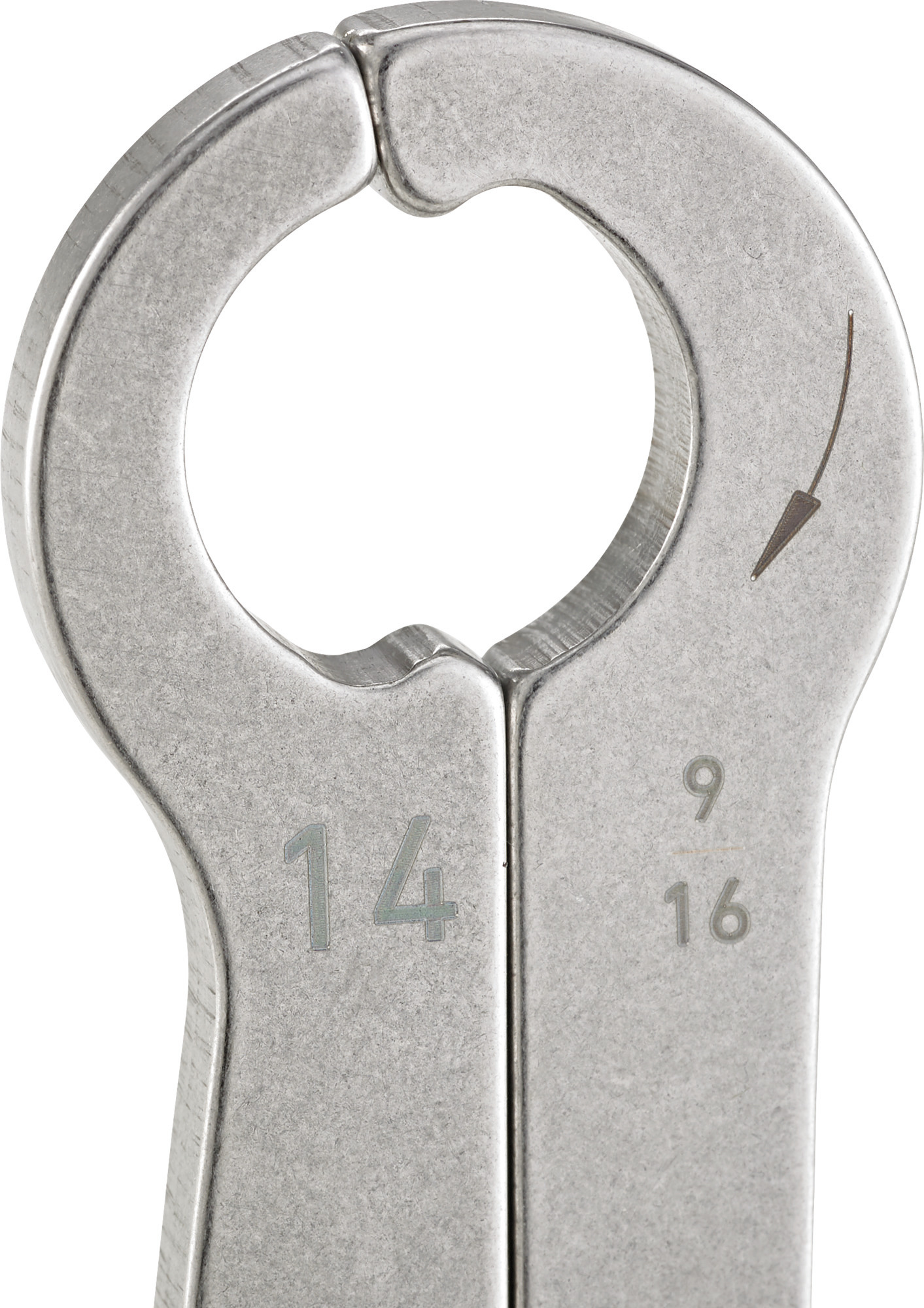

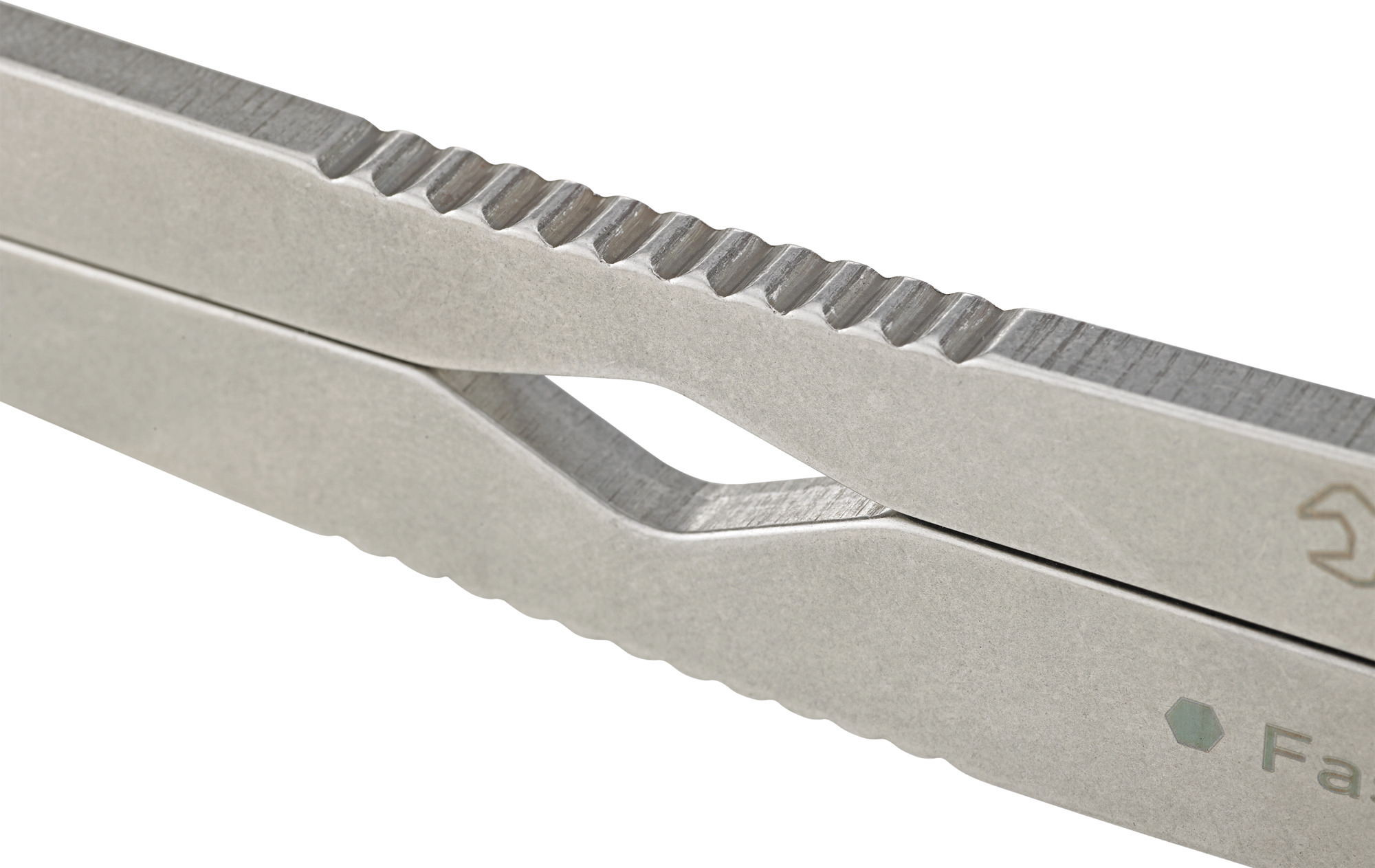

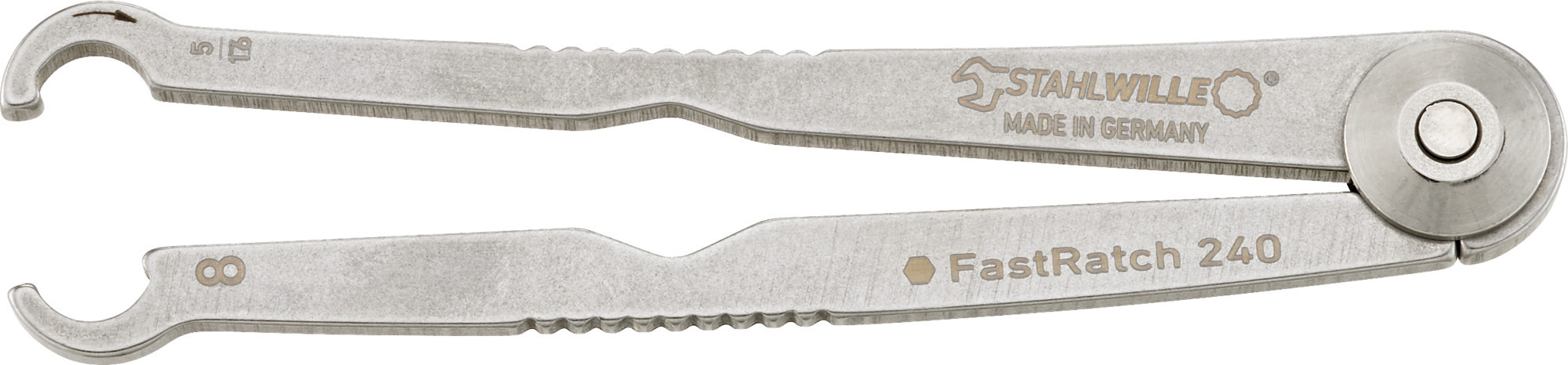

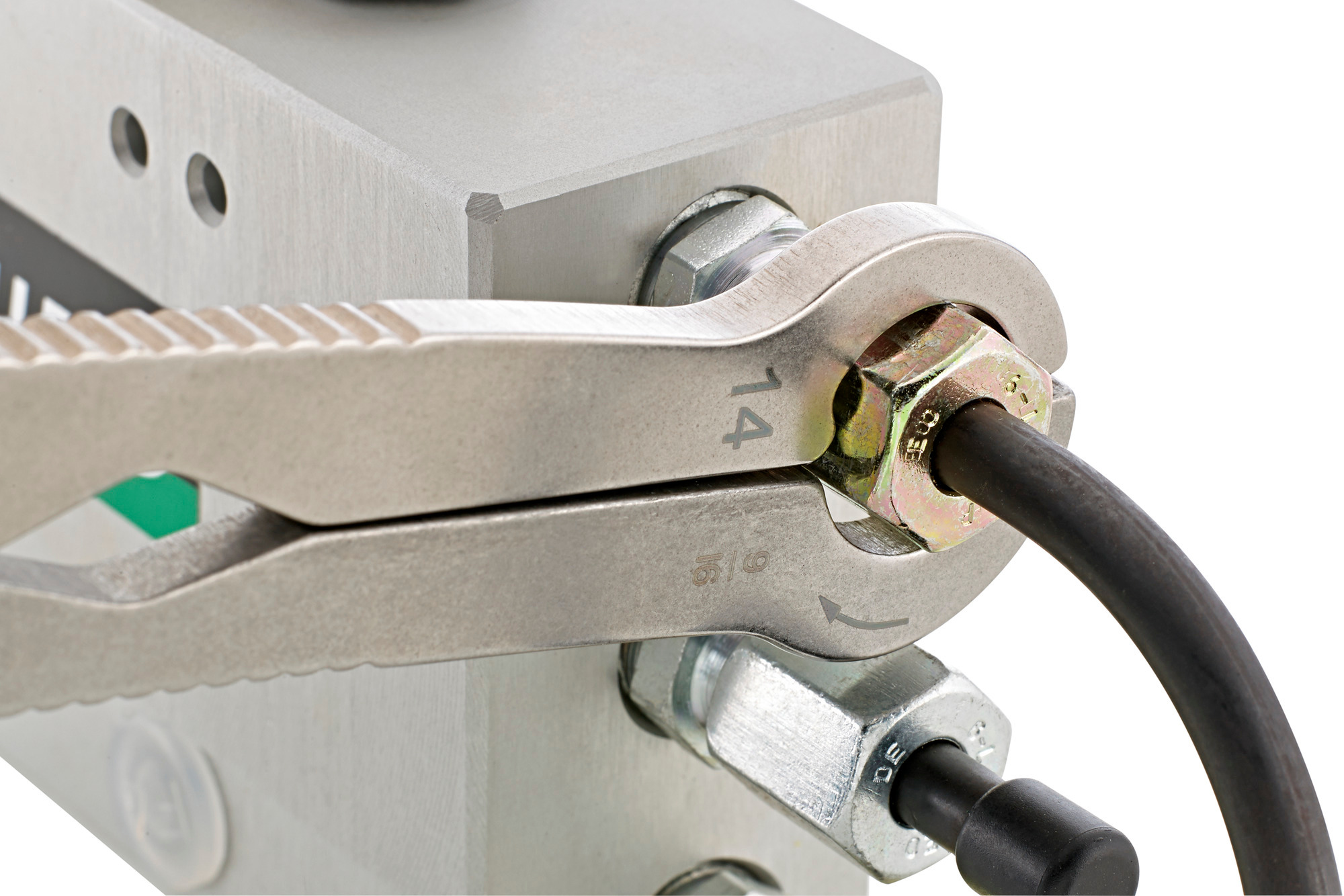

Light pressure on the thumb release opens the wrench, allowing it to be slid sideways onto the hex bolt. The arrow marking on the wrench head indicates the direction of operation.
The tool is made of high-quality stainless steel, which gives it outstanding stability and resistance to continuous use.
Wide range of applications.

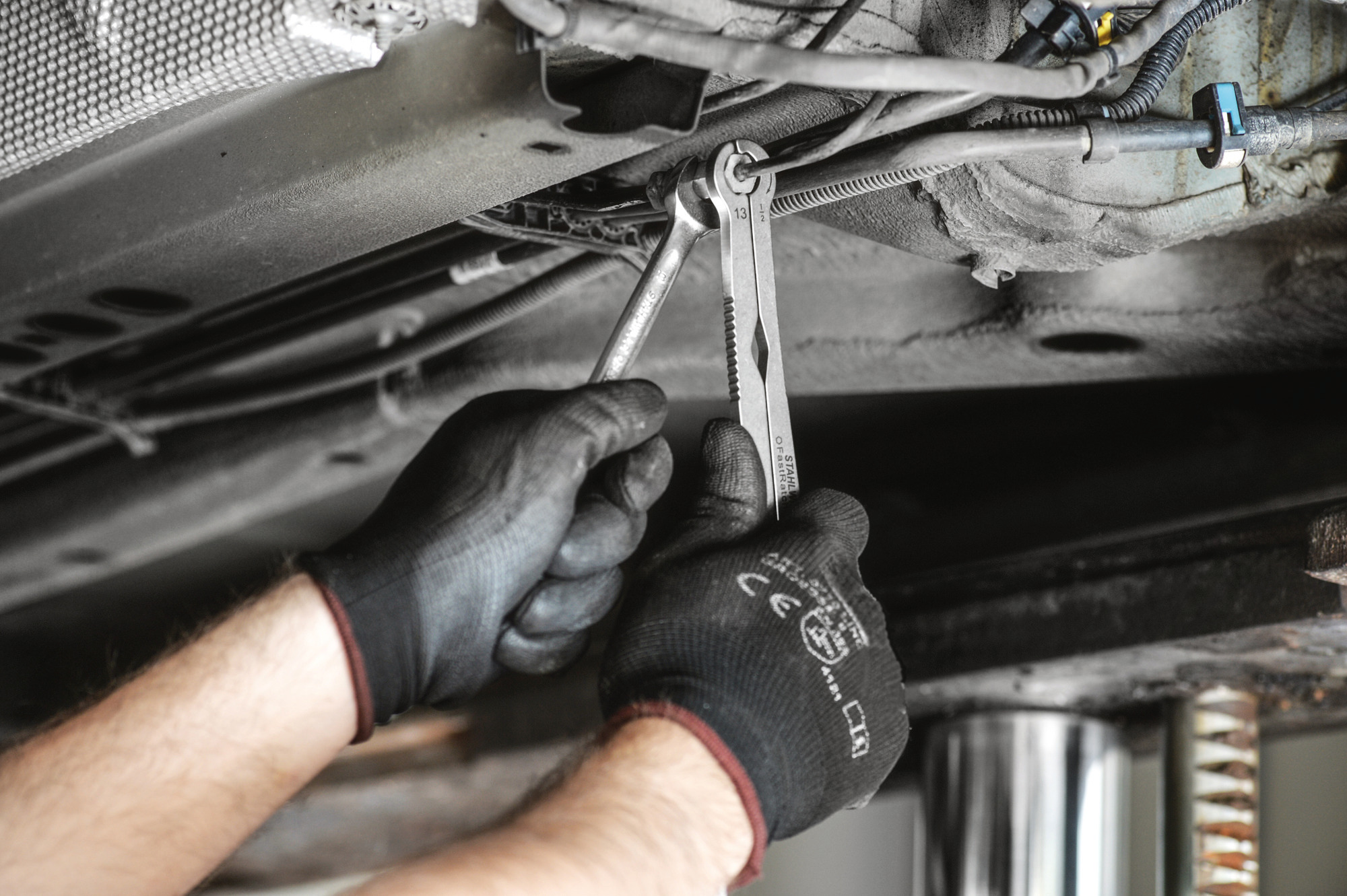

Thanks to the patented system and ergonomic shape, it is ideal for tightening bolts on brake lines, tie rods, exhaust gas temperature sensors, diesel fuel lines or air conditioning pressure sensors.
