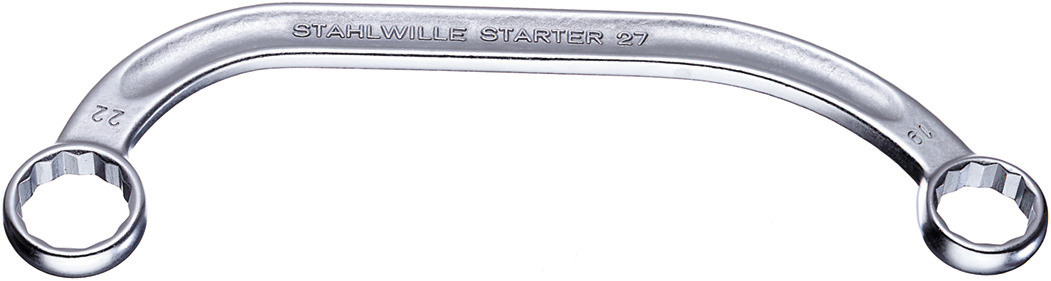

Double ring wrench
Double ring wrench
STARTER 27
Artikel-Nr. 41091012|EAN 4018754022038
- High quality STARTER double-ended ring spanner for use in difficult to access screw areas.
Produkt-Varianten

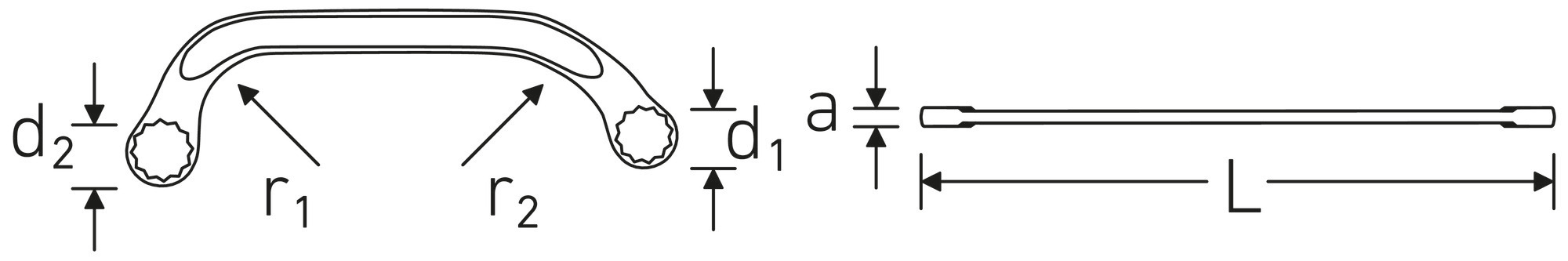

| Product no. | Wrench width 1 [mm] | Wrench width 2 [mm] | Length mm (L) | a | Drive profile | d1 | d2 | r1 | r2 | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 41091012 | 10 mm | 12 mm | 150 mm | 6,5 mm | bi-hex AS-Drive® | 16,5 mm | 19,5 mm | 35 mm | 60 mm | 53 g | |
| 41091113 | 11 mm | 13 mm | 150 mm | 6,5 mm | bi-hex AS-Drive® | 16,5 mm | 19,5 mm | 35 mm | 60 mm | 50 g | Jetzt entdecken |
| 41091416 | 14 mm | 16 mm | 179 mm | 7,5 mm | bi-hex AS-Drive® | 21 mm | 24,5 mm | 36 mm | 64 mm | 91 g | Jetzt entdecken |
| 41091417 | 14 mm | 17 mm | 179 mm | 7,5 mm | bi-hex AS-Drive® | 21 mm | 24,5 mm | 36 mm | 64 mm | 89 g | Jetzt entdecken |
| 41091517 | 15 mm | 17 mm | 184 mm | 7,5 mm | bi-hex AS-Drive® | 22,5 mm | 25 mm | 38 mm | 66 mm | 96 g | Jetzt entdecken |
| 41091618 | 16 mm | 18 mm | 200 mm | 8,5 mm | bi-hex AS-Drive® | 25,3 mm | 27,5 mm | 47 mm | 68 mm | 130 g | Jetzt entdecken |
| 41091922 | 19 mm | 22 mm | 225 mm | 9 mm | bi-hex AS-Drive® | 28 mm | 32 mm | 48 mm | 67 mm | 164 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Anti-Slip-Drive
The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the bolt head.
Thin-walled rings
The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.
Eigenschaften
- ISO 3318
- Chrome Alloy Steel, chrome plated
