Double-ended ring wrenches
Double-ended ring wrenches
230a

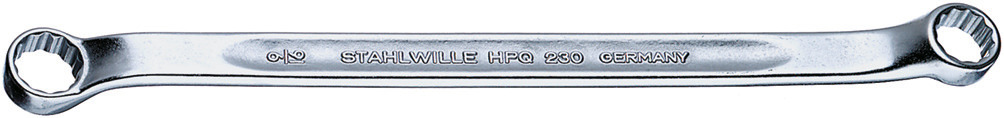

- High-quality double-ended ring wrench, flat cranked for optimum access in confined spaces, with imperial size.
- A special manufacturing process enables thin-walled rings - slim for use in confined areas and at the same time robust enough for high loads.
- The bi-hex AS-Drive profile protects bolts and nuts because the force is applied specifically to the flanks - not the edges.
- The distinctive STAHLWILLE rounded finish gives the combination wrench a non-slip and comfortable feel for safe working, even with oily hands.
- Made from robust HPQ® high performance steel and additionally chrome-plated for high durability, reliable corrosion protection and enormous wear resistance.
Produkt-Varianten

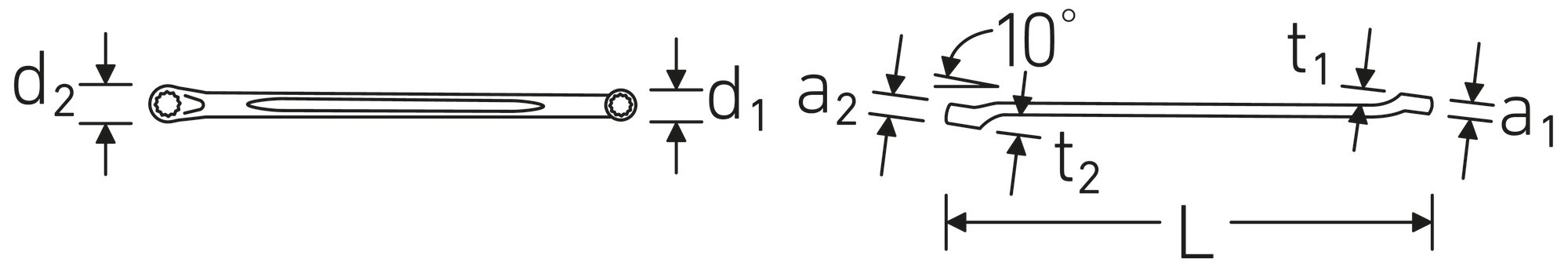

| Product no. | Model | Size 1 [inch] | Size 2 [inch] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | t1 | t2 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41611620 | 230a | 1/4 " | 5/16 " | 180 mm | 5,2 mm | 6 mm | bi-hex AS-Drive | 10,2 mm | 11,9 mm | 7,9 mm | 8,8 mm | 45 g | |
| 41612022 | 230a | 5/16 " | 11/32 " | 195 mm | 7 mm | 8 mm | bi-hex AS-Drive | 11,9 mm | 13,5 mm | 8 mm | 9 mm | 45 g | Jetzt entdecken |
| 41612024 | 230a | 5/16 " | 3/8 " | 195 mm | 6 mm | 7,9 mm | bi-hex AS-Drive | 11,9 mm | 14,6 mm | 10,8 mm | 12,4 mm | 54 g | Jetzt entdecken |
| 41612428 | 230a | 3/8 " | 7/16 " | 215 mm | 7,9 mm | 8,7 mm | bi-hex AS-Drive | 14,6 mm | 16,7 mm | 11,4 mm | 11,7 mm | 74 g | Jetzt entdecken |
| 41612832 | 230a | 7/16 " | 1/2 " | 225 mm | 8,7 mm | 9,1 mm | bi-hex AS-Drive | 16,7 mm | 19,5 mm | 11,9 mm | 12,6 mm | 105 g | Jetzt entdecken |
| 41613234 | 230a | 1/2 " | 9/16 " | 235 mm | 9,1 mm | 9,5 mm | bi-hex AS-Drive | 19,5 mm | 20,7 mm | 12,2 mm | 12,9 mm | 110 g | Jetzt entdecken |
| 41613436 | 230a | 9/16 " | 5/8 " | 245 mm | 9,5 mm | 11,5 mm | bi-hex AS-Drive | 20,7 mm | 22,6 mm | 13,8 mm | 13,9 mm | 122 g | Jetzt entdecken |
| 41613640 | 230a | 5/8 " | 3/4 " | 274 mm | 11,1 mm | 12 mm | bi-hex AS-Drive | 22,6 mm | 27,5 mm | 14,8 mm | 15,8 mm | 160 g | Jetzt entdecken |
| 41613840 | 230a | 11/16 " | 3/4 " | 275 mm | 11,1 mm | 12 mm | bi-hex AS-Drive | 25,4 mm | 27,5 mm | 15,2 mm | 15,8 mm | 190 g | Jetzt entdecken |
| 41614244 | 230a | 13/16 " | 7/8 " | 301 mm | 13,5 mm | 14,5 mm | bi-hex AS-Drive | 29,5 mm | 31,7 mm | 19 mm | 20 mm | 260 g | Jetzt entdecken |
| 41614648 | 230a | 15/16 " | 1 " | 340 mm | 14,5 mm | 15 mm | bi-hex AS-Drive | 34,1 mm | 36,5 mm | 22 mm | 23 mm | 375 g | Jetzt entdecken |
| 41614850 | 230a | 1 " | 1 1/16 " | 368 mm | 15 mm | 16 mm | bi-hex AS-Drive | 36,5 mm | 38,6 mm | 23 mm | 24 mm | 460 g | Jetzt entdecken |
| 41615256 | 230a | 1 1/8 " | 1 1/4 " | 403 mm | 16 mm | 18 mm | bi-hex AS-Drive | 40,8 mm | 45 mm | 25 mm | 27 mm | 620 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Anti-Slip-Drive
High Performance Quality (HPQ®)
Thin-walled rings
Eigenschaften
- imperial, differing end sizes
- flat cranked
- bi-hex with AS-Drive profile
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- HPQ® high performance steel, chrome-plated
- SAE AS 954 (dimensions and test values) / Fed. Spec. GGG-W-636 E / S.B.A.C. Techn. Spec. T.S. 48 to 1/2"
Produkt-Highlights
For confined areas with low headroom.
The flat cranked double-ended ring wrench shows its strength when screw connections are located close to housings, covers or adjacent components. Whether on aggregates, inside machines or during maintenance work under panelling: the flat offset keeps the wrench close to the surface and reduces collisions with surrounding components - with full wrench length for sufficient leverage and controlled, powerful work even with limited headroom.
Optimum power transmission.
Every wrench guarantees consistently outstanding quality thanks to minimal manufacturing tolerances and high reproducible precision. The jaw and ring always sit firmly on the screw, ensuring optimum power transmission.
Non-slip surface.
STAHLWILLE wrenches feature a high-quality, non-slip surface texture that enables safe working even with oily hands. The non-slip finish increases control during handling.
Solid, stable, durable.
Made from solid, extremely resistant HPQ® high performance steel, the wrench offers high stability and resilience even in continuous use - no deformation, no warping, even when used vigorously. It is also chrome-plated for corrosion resistance.
