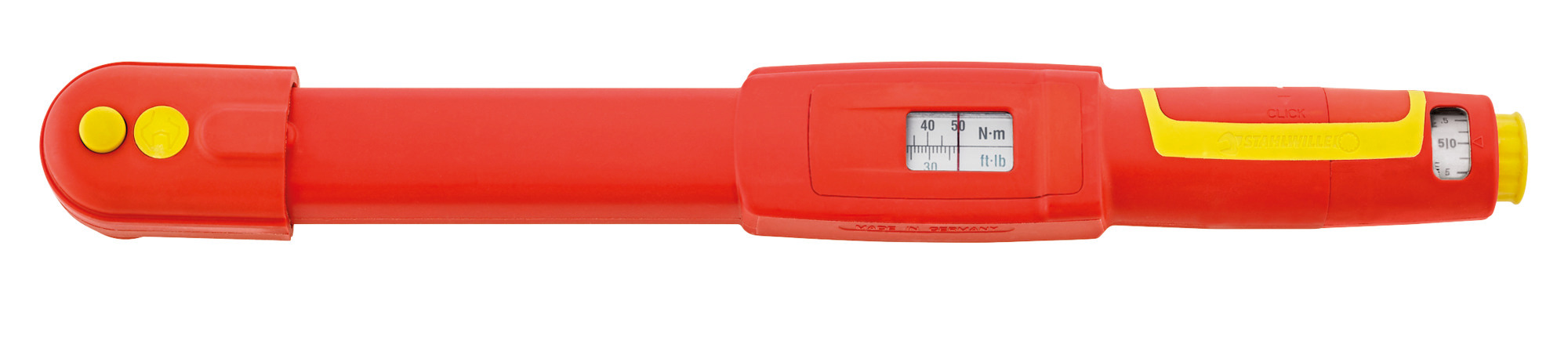

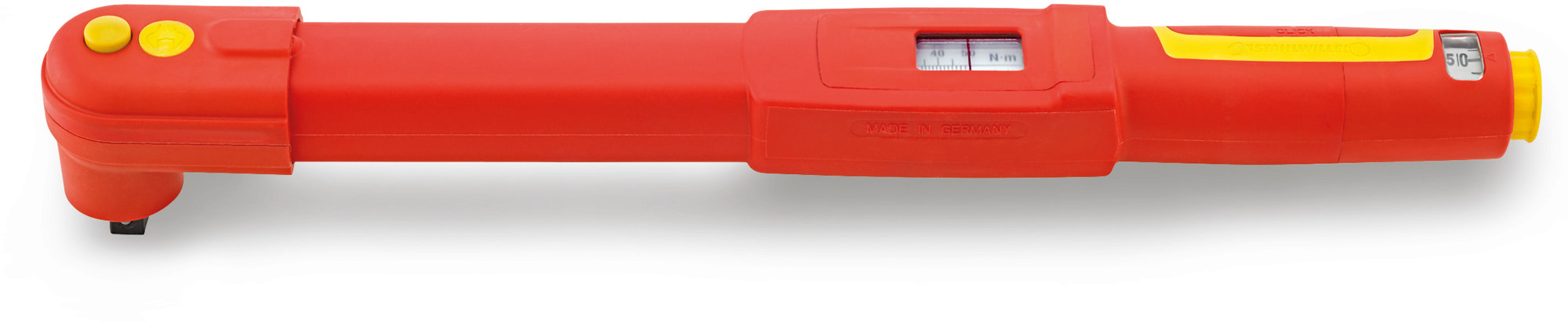

VDE MANOSKOP® torque wrench

VDE MANOSKOP® torque wrench

730R VDE

Artikel-Nr. 96550150|EAN 4018754271900
  • Mechanically setting/clicking torque wrench for controlled screw tightening.
  • The special plastic sheath of the MANOSKOP® 730R VDE offers reliable protection for safe and efficient work at voltages of up to 1,000 volts.
  • Low-wear triggering system with flexible rod ensures consistently correct and reliable measurement results.
  • Re-adjustment on your own is possible without disassembly and the associated re-testing of the torque wrench insulation.
  • Change the ratchet adapter without checking the insulation again.

Produktvideo

Produkt-Varianten

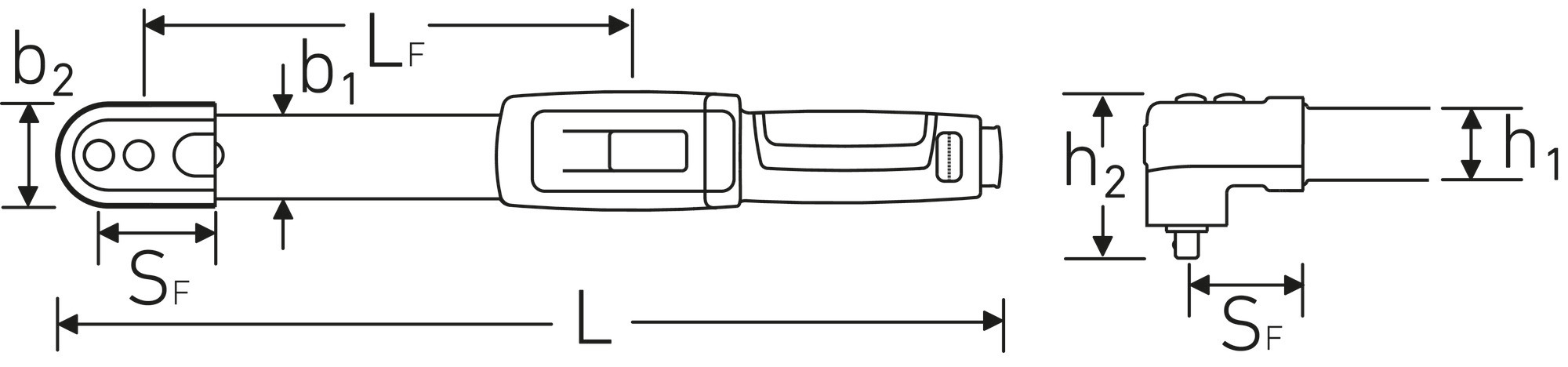

Product no.SizeMeasuring range N·mMeasuring range ft·lbMeasuring range in·lbExternal square drive (inch)Length mm (L)b1b2Height mm (h1)Height mm (h2)Fine scale divisionSize tool holder [internal square drive]LFSFWeight
965501252,54-25 N·m40-220 in·lb3/8337 mm35 mm45 mm30 mm56 mm0,2 N·m9 x 12 mm253,5 mm28 mm1030 g
Jetzt entdecken
96550150510-50 N·m7-37 ft·lb- in·lb3/8391,5 mm35 mm45 mm30 mm56 mm0,25 N·m9 x 12 mm308,5 mm28 mm1140 g

Technologien und Leistungsmerkmale

QuickRelease

The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.

Factory calibration certificate (ISO calibration)

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

Low-wear flexible rod system

Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to “0” after use.

Eigenschaften

    • tactile dual stop signal
    • with 3/8" ratchet adapter
    • replace the ratchet adapter 725QR VDE without having to check the insulation again
    • QuickRelease safety lock
    • fast, precise adjustment with QuickSelect quick adjustment
    • double insulation allows to work at voltages of up to 1,000 while compliant with VDE (in line with IEC 60900)
    • with an insulation made from glass fibre-reinforced polyamide plastic, which is resistant to fluids that often occur in working environments, such as alkaline solutions, fuels or oils
    • easy to read double scale with colour differentiation of N·m/ft·lb
    • no reset to "0" required, since measuring element is only loaded during tightening
    • low-wear triggering mechanism
    • readjustment without disassembly and without checking the insulation again
    • calibration certificate in accordance with DIN EN ISO 6789-2:2017
    • display deviation ± 3%

Produkt-Highlights

Adjustment does not require disassembly.

The VDE torque wrenches have two setting points for the upper and lower value, which allows for easy adjustment from the outside without requiring disassembly of the tool. This also means there is no need to check the insulation again.

Triggering dual stop signal.

The MANOSKOP® provides a clearly noticeable dual stop signal when the set value is reached.

Precise fine adjustment.

Thanks to QuickSelect, the target torque is set in no time at all. It is also extremely accurate, as it can be read off in very precise increments on the secondary fine scale.

Exchangeable ratchet adaptor.

The STAHLWILLE MANOSKOP® 730R VDE is the only insulated torque wrench on the market where the insert ratchet (9 x 12 mm, 3/8") can be replaced without the need for a new insulation test thanks to a mount for interchangeable insert tools (9 x 12 mm, 3/8").

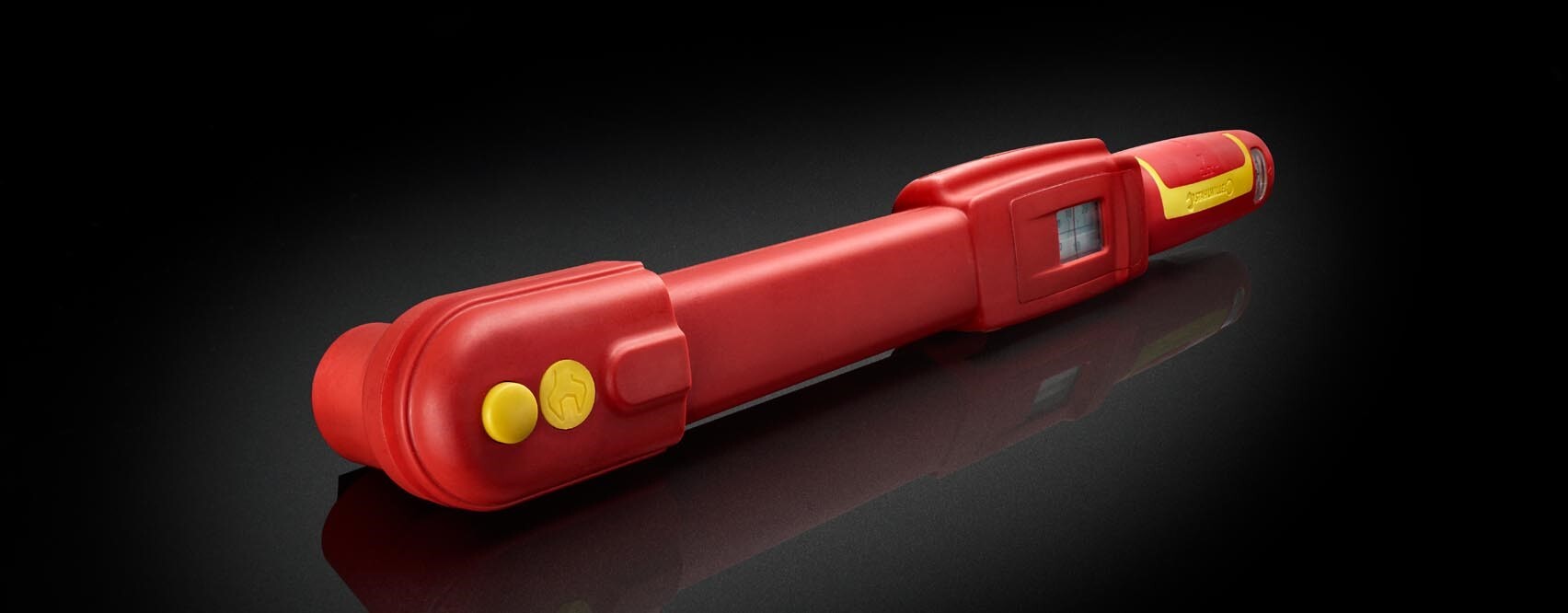

Insulating plastic sheath.

The special plastic sheath of the MANOSKOP® 730R VDE reliably protects up to 1,000 volts. It is also non-slip, abrasion-resistant and resistant to diluted alkaline solutions, hydrocarbons, fuels and oils.

Downloads

Produktdatenblatt: STAHLWILLE_96550150_730R-5 VDE_us.pdf
PDF | 2.94 MB
