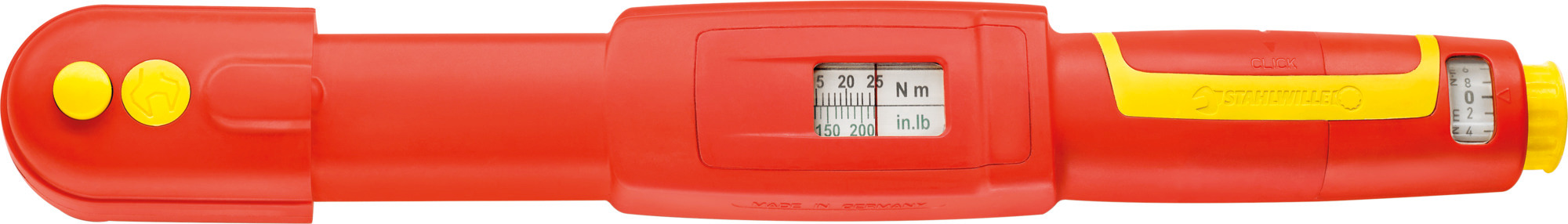

VDE torque wrench MANOSKOP®
VDE torque wrench MANOSKOP®
730R VDE
- Mechanically setting/clicking torque wrench for controlled screw tightening.
- The special plastic sheath of the MANOSKOP® 730R VDE offers reliable protection for safe and efficient work at voltages of up to 1000 volts.
- Low-wear triggering system with flexible rod ensures consistently correct and reliable measurement results.
- The torque wrench can be readjusted independently without disassembly and a new insulation test.
- Change the ratchet adapter without checking the insulation again.
Produktvideo
Produkt-Varianten
| Product no. | Size | Model | Measuring range N·m | Measuring range ft·lb | Measuring range in·lb | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | Fine scale division | Size tool holder [internal square drive] | LF | SF | Weight | Scale division N·m | Scale division in·lb | Scale division ft·lb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96550125 | 2,5 | 730R VDE | 4-25 N·m | - ft·lb | 40-220 in·lb | 3/8 | 337 mm | 35 mm | 45 mm | 30 mm | 56 mm | 0,2 N·m | 9 x 12 mm | 253,5 mm | 28 mm | 1030 g | 2 N·m | 10 in·lb | - ft·lb | |
| 96550150 | 5 | 730R VDE | 10-50 N·m | 7-37 ft·lb | - in·lb | 3/8 | 3,915 mm | 35 mm | 45 mm | 30 mm | 56 mm | 0,25 N·m | 9 x 12 mm | 308,5 mm | 28 mm | 1140 g | 5 N·m | - in·lb | 1 ft·lb | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
Factory calibration certificate (ISO calibration)
Low-wear flexible rod system
Eigenschaften
- tactile dual stop signal
- replace the ratchet adapter 725QR VDE without having to check the insulation again
- QuickRelease safety lock
- fast, precise adjustment with QuickSelect quick adjustment
- protective insulation according to IEC 60900-AC 1000 V / DC 1500 V
- with insulating sleeve made of glass-fibre reinforced polyamide plastic
- the insulation is resistant to many liquids such as alkalis, fuels or oils
- easy to read double scale with colour differentiation of N·m/ft·lb
- no reset to "0" required, since measuring element is only loaded during tightening
- low-wear triggering mechanism
- readjustment without disassembly and without checking the insulation again
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- display deviation ± 3%
Produkt-Highlights
Adjustment does not require disassembly.
The VDE torque wrenches have two setting points for the upper and lower value, which allows for easy adjustment from the outside without requiring disassembly of the tool. This also means there is no need to check the insulation again.
Triggering dual stop signal.
The MANOSKOP® provides a clearly noticeable dual stop signal when the set value is reached.
Precise fine adjustment.
Thanks to QuickSelect, the target torque is set in no time at all. It is also extremely accurate, as it can be read off in very precise increments on the secondary fine scale.
Exchangeable ratchet adaptor.
The STAHLWILLE MANOSKOP® 730R VDE is the only insulated torque wrench on the market where the insert ratchet (9 x 12 mm, 3/8") can be replaced without the need for a new insulation test thanks to a mount for interchangeable insert tools (9 x 12 mm, 3/8").
Insulating plastic sheath.
The special plastic sheath of the MANOSKOP® 730R VDE reliably protects up to 1,000 volts. It is also non-slip, abrasion-resistant and resistant to diluted alkaline solutions, hydrocarbons, fuels and oils.
