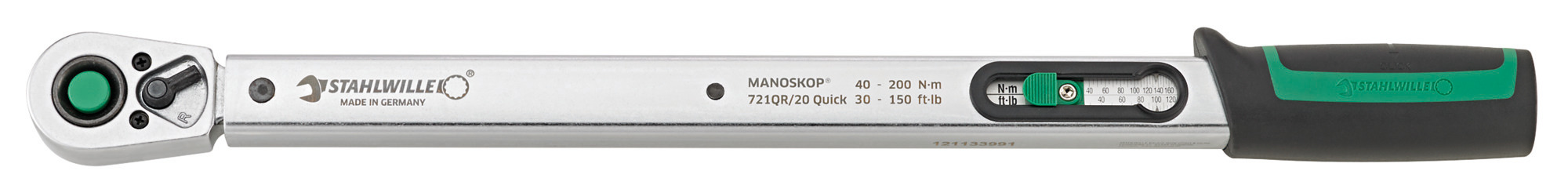

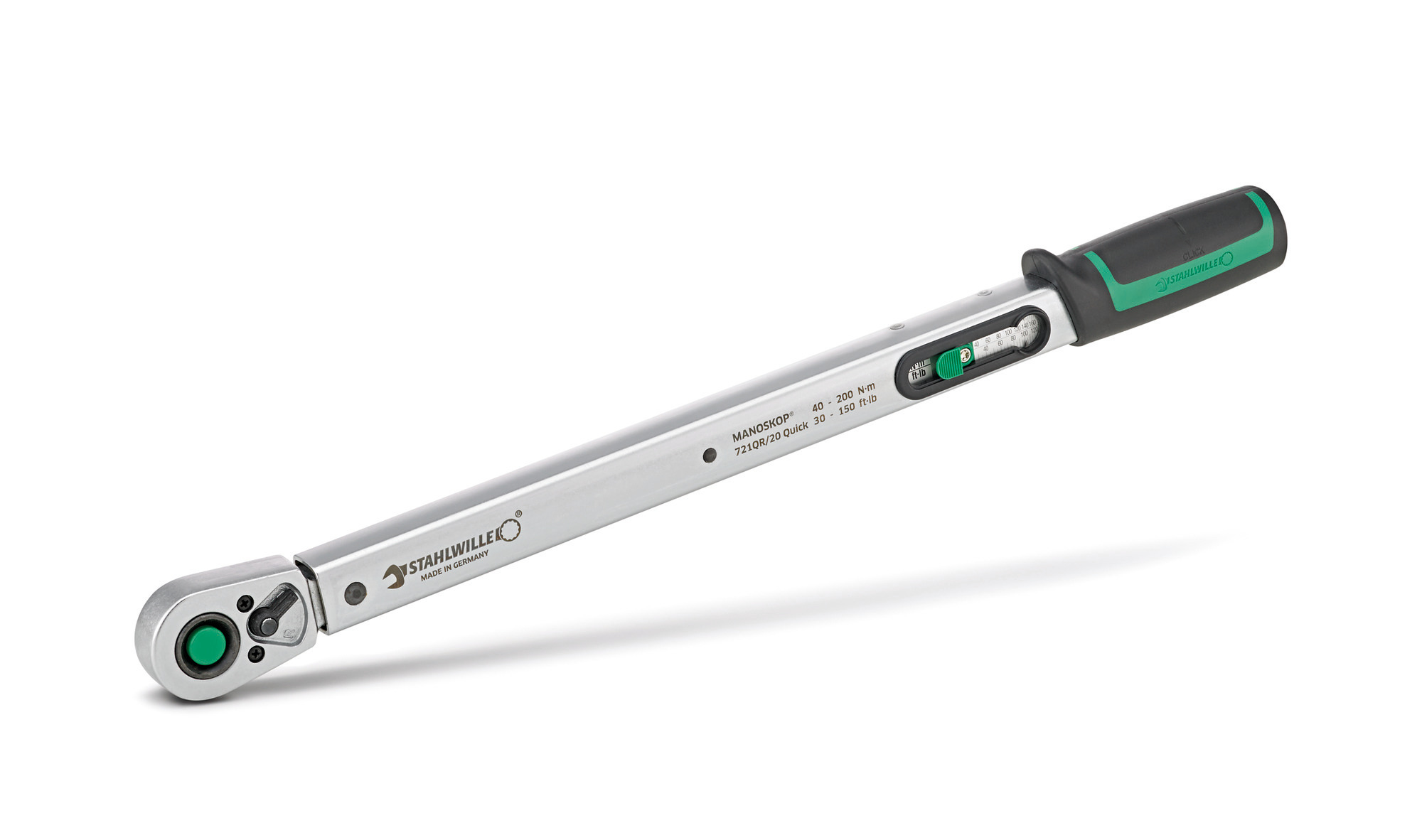

Torque wrench standard MANOSKOP® with fixed QuickRelease ratchet
Torque wrench standard MANOSKOP® with fixed QuickRelease ratchet
721QR/20 Quick
Artikel-Nr. 50204120|EAN 4018754268962
- Fast setting with easy-to-operate clamping lever in the handle, integrated lens for better readability of the set value
- Efficient. No reset to "0" necessary, as measuring element is only strained during the tightening process
- Ergonomically shaped, non-slip adjustment element with thumb recess and optimised ball handle for fatigue-free work
- Releasing torque wrench with permanently installed 1/2" QuickRelease ratchet, double stop signal (tactile and audible), left-hand tightening by turning over the plug-in tools
- With calibration certificate, display deviation ± 4%
Produkt-Varianten
| Product no. | Size | Measuring range N·m | Measuring range ft·lb | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | LF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50204115 | 15 | 30-150 N·m | 25-110 ft·lb | 30 N·m | 150 N·m | 1/2 | 452,5 mm | 28 mm | 41 mm | 23 mm | 18 mm | 387 mm | 1268 g | Jetzt entdecken |
| 50204120 | 20 | 40-200 N·m | 30-145 ft·lb | 40 N·m | 200 N·m | 1/2 | 482 mm | 28 mm | 41 mm | 23 mm | 18 mm | 416,5 mm | 1338 g |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- Triggering
- Flash adjustment by easy-to-operate clamping lever in the handle
- ergonomically shaped, non-slip adjustment element with thumb recess
- integrated magnifying glass in the reading window
- optimised ball handle for fatigue-free working
- double stop signal
- double scale N·m/ft·lb
- no resetting to "0" required, since the measuring element is only loaded during the tightening process
- Continued loading after release or loads in the opposite direction to the functional direction, e.g. in the case of stuck bolts.
- Continued load after triggering or loads against the functional direction, e.g. with stuck screws, do not act on the trigger mechanism, which is thus protected against damage.
- Protection of all sensitive parts by the robust steel tube housing
- Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly.
- Display deviation ± 4 %
- With certificate
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
