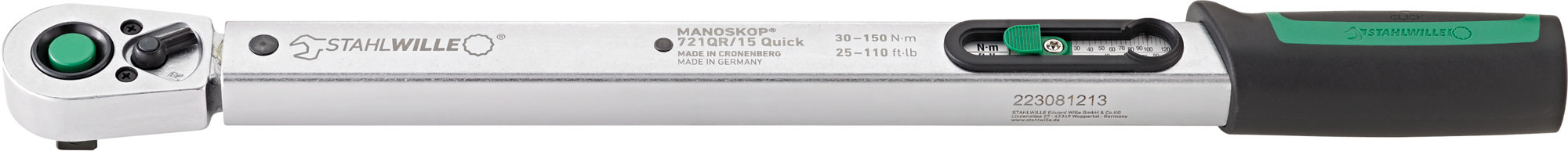

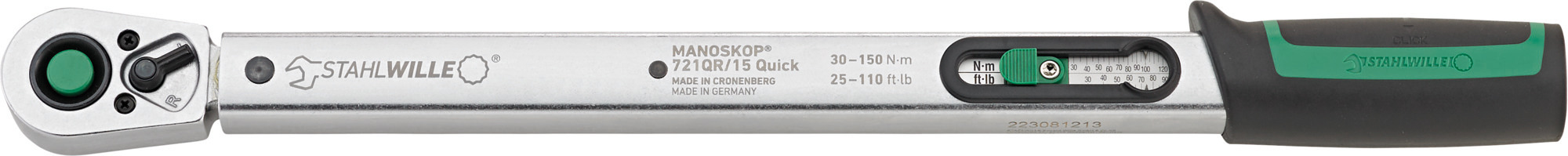

Torque wrench standard MANOSKOP® with fixed QuickRelease ratchet


Torque wrench standard MANOSKOP® with fixed QuickRelease ratchet

721QR Quick

Artikel-Nr. 50204115|EAN 4018754268955
  • Flash adjustment by easy-to-operate clamping lever in handle.
  • Efficient. No need to reset to "0" as measuring element is only loaded during the tightening process.
  • Ergonomically shaped, non-slip adjustment element with thumb recess and optimised ball handle for fatigue-free working.
  • Releasing torque wrench with permanently installed 1/2" QuickRelease ratchet, double stop signal (can be felt and heard), left-hand tightening by turning over the plug-in tools.
  • With calibration certificate, display deviation ± 4 %.

Produkt-Varianten

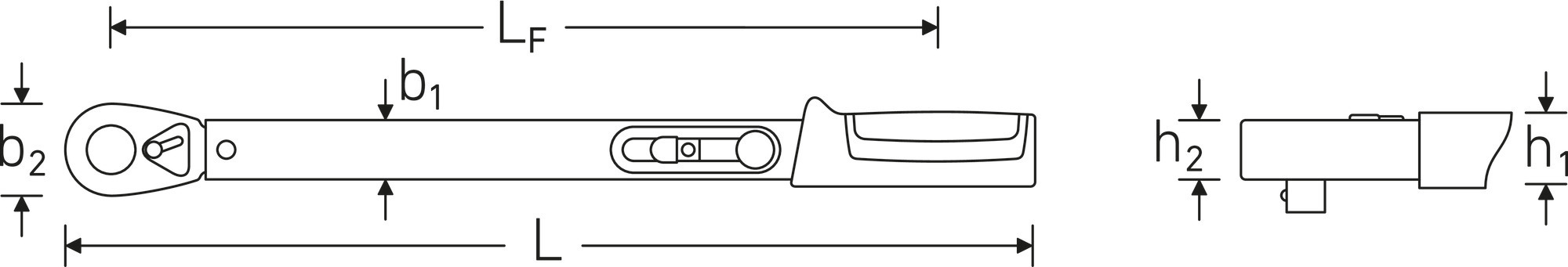

Product no.SizeModelMeasuring range N·mMeasuring range ft·lbMA N·mNominal value N·mExternal square drive (inch)Length mm (L)b1b2Height mm (h1)Height mm (h2)LFWeightScale division N·mScale division ft·lb
5020411515721QR Quick30-150 N·m25-110 ft·lb30 N·m150 N·m1/24,525 mm28 mm41 mm23 mm18 mm387 mm1268 g5 N·m5 ft·lb
5020412020721QR Quick40-200 N·m30-145 ft·lb40 N·m200 N·m1/2482 mm28 mm41 mm23 mm18 mm416,5 mm1338 g5 N·m5 ft·lb
Jetzt entdecken

Technologien und Leistungsmerkmale

QuickRelease

The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.

Factory calibration certificate (ISO calibration)

Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.

2-component handle

Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.

Eigenschaften

    • Triggering
    • Flash adjustment by easy-to-operate clamping lever in the handle
    • ergonomically shaped, non-slip adjustment element with thumb recess
    • integrated magnifying glass in the reading window
    • optimised ball handle for fatigue-free working
    • double stop signal
    • double scale N·m/ft·lb
    • no resetting to "0" required, since the measuring element is only loaded during the tightening process
    • Continued loading after release or loads in the opposite direction to the functional direction, e.g. in the case of stuck bolts.
    • Continued load after triggering or loads against the functional direction, e.g. with stuck screws, do not act on the trigger mechanism, which is thus protected against damage.
    • Protection of all sensitive parts by the robust steel tube housing
    • Calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly.
    • Display deviation ± 4 %
    • With certificate

Produkt-Highlights

Rapid adjustment.

Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess.

Adjustment does not require disassembly.

Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
