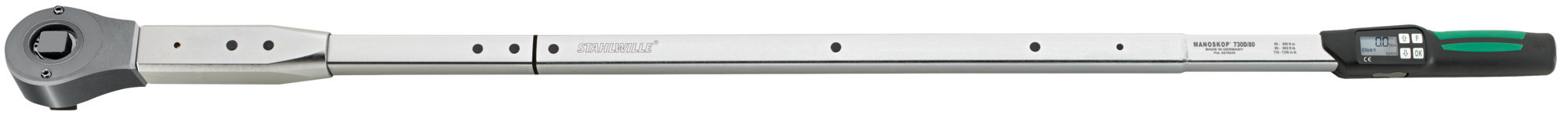

Service/series MANOSKOP® torque wrenches with reversible ratchet
Service/series MANOSKOP® torque wrenches with reversible ratchet
730DR
Artikel-Nr. 96501880|EAN 4018754240067
- Tactile and acoustic trigger signal.
Produkt-Varianten
| Product no. | Size | Measuring range N·m | Measuring range ft·lb | Measuring range in·lb | MA N·m | Nominal value N·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Number of teeth | Battery type | Setting display resolution ft·lb | Setting display resolution in·lb | Setting display resolution N·m | Size tool holder [internal square drive] | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96501800 | 100 | 100-1000 N·m | 74-750 ft·lb | 900-9000 in·lb | 100 N·m | 1,000 N·m | 3/4 | 1439 mm | 120 mm | 100 mm | 30 | Mignon (AA) 1,5V | 1,0/0,1 ft·lb | 10/1,0 in·lb | 1,0/0,1 N·m | 22 x 28 mm | 6910 g | 12500 g | Jetzt entdecken |
| 96501810 | 10 | 10-100 N·m | 7,4-75 ft·lb | 90-900 in·lb | 10 N·m | 100 N·m | 1/2 | 501 mm | 95 mm | 74 mm | 60 | Mignon (AA) 1,5V | 0,2/0,1 ft·lb | 2/1,0 in·lb | 0,2/0,1 N·m | 9 x 12 mm | 1232 g | 1657 g | Jetzt entdecken |
| 96501820 | 20 | 20-200 N·m | 15-150 ft·lb | 180-1800 in·lb | 20 N·m | 200 N·m | 1/2 | 595 mm | 95 mm | 74 mm | 60 | Mignon (AA) 1,5V | 0,5/0,1 ft·lb | 5/1,0 in·lb | 0,5/0,1 N·m | 14 x 18 mm | 1663 g | 2198 g | Jetzt entdecken |
| 96501840 | 40 | 40-400 N·m | 30-300 ft·lb | 360-3600 in·lb | 40 N·m | 400 N·m | 3/4 | 738 mm | 83 mm | 70 mm | 60 | Mignon (AA) 1,5V | 1,0/0,1 ft·lb | 10/1,0 in·lb | 1,0/0,1 N·m | 14 x 18 mm | 2232 g | 4722 g | Jetzt entdecken |
| 96501865 | 65 | 65-650 N·m | 48-480 ft·lb | 580-5800 in·lb | 65 N·m | 650 N·m | 3/4 | 975 mm | 85 mm | 70 mm | 60 | Mignon (AA) 1,5V | 1,0/0,1 ft·lb | 10/1,0 in·lb | 1,0/0,1 N·m | 14 x 18 mm | 3767 g | 6530 g | Jetzt entdecken |
| 96501880 | 80 | 80-800 N·m | 60-600 ft·lb | 720-7200 in·lb | 80 N·m | 800 N·m | 3/4 | 1255 mm | 120 mm | 90 mm | 30 | Mignon (AA) 1,5V | 1,0/0,1 ft·lb | 10/1,0 in·lb | 1,0/0,1 N·m | 22 x 28 mm | 6492 g | 12500 g | |
| 96502065 | II/65 | 65-650 N·m | 48-480 ft·lb | 580-5800 in·lb | 65 N·m | 650 N·m | 3/4 | 977 mm | 140 mm | 100 mm | 60 | Mignon (AA) 1,5V | 1,0/0,1 ft·lb | 10/1,0 in·lb | 1,0/0,1 N·m | 22 x 28 mm | 3994 g | 9000 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- tactile and acoustic trigger signal
- mount for interchangeable insert tools
- QuickRelease safety lock
- fast setting using convenient keypad
- automatic compensation to achieve correct tightening torque even if a changed extension is entered
- overload protection by means of acoustic and visual signals
- automatic keypad lock prevents inadvertent changes
- display also works for anticlockwise torque
- units of measurement: N·m, ft·lb, in·lb
- different tolerance limits can be set for each joint
- visual red and green signals in the display confirm the status of the joint
- additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code
- up to 7.500 measurements can be stored
- USB interface
- automatic notification of the next calibration date
- calibration using perfectControl® calibrating unit No 7794 or calibration system No 7791
- two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and skydrol)
- certificate in accordance with DIN EN ISO 6789‑2:2017
- in sturdy plastic box (sizes 40-100 in steel box)
- patent
- supplied with two 1.5 V AA batteries. AA/LR6, 1.2 V rechargeable cells may also be used
- display deviation value ± 2%, ± 1 digit
Produkt-Highlights
Ideal.
After clicking, the MANOSKOP® 730D indicates the torque actually applied. As a result, the user has the opportunity to optimise his/her working methods.
Reader friendly.
The LCD display is easy to read and evaluates the fastener visually by means of coloured displays. All settings can be made quickly and easily using the keyboard, which uses only four keys.
