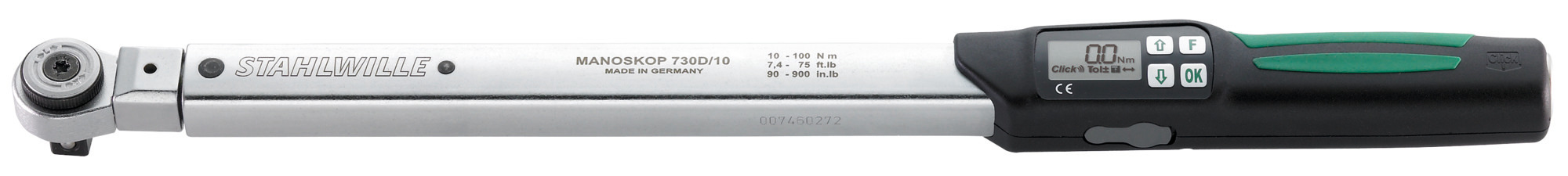

Service/series MANOSKOP® torque wrenches with reversible ratchet

730DR

Artikel-Nr. 96501810|EAN 4018754175642

With patented electromechanical cycle: precise electronic measurement combined with the familiar mechanical ‘click’.
Optical evaluation of the bolted connection.
Easy documentation of the measured values on a PC via the USB interface.
Adjustment and logical menu navigation are carried out via a clearly arranged and intuitive 4-button keypad.
Automatic correction of the tightening torque for varying centre distances for error-free working with different insert tools.

Produkt-Varianten

Product no.	Size	Model	Measuring range N·m	Measuring range ft-lb	Measuring range in-lb	MA N·m	Nominal value N·m	External square drive (inch)	Length mm (L)	Width mm (b)	Height mm (h)	Number of teeth	Battery type	Adjustment display resolution ft-lb	Adjustment display resolution in-lb	Setting display resolution N·m	Tool holder size [internal square]	Weight (g)	Weight with box	Description
96501800	100	730DR	100-1000 N·m	74-750 ft·lb	900-9000 in·lb	100 N·m	1,000 N·m	3/4	1439 mm	120 mm	100 mm	30	Mignon (AA) 1,5V	1,0/0,1 ft·lb	10/1,0 in·lb	1,0/0,1 N·m	22 x 28 mm	6910 g	12500 g	Torque wrench service/series MANOSKOP® 730DR 100-1000N·m 3/4" L. 1439mm	Jetzt entdecken
96501810	10	730DR	10-100 N·m	7,4-75 ft·lb	90-900 in·lb	10 N·m	100 N·m	1/2	501 mm	95 mm	74 mm	60	Mignon (AA) 1,5V	0,2/0,1 ft·lb	2/1,0 in·lb	0,2/0,1 N·m	9 x 12 mm	1232 g	1657 g	Torque wrench service/series MANOSKOP® 730DR 10-100N·m 1/2" L. 501mm
96501820	20	730DR	20-200 N·m	15-150 ft·lb	180-1800 in·lb	20 N·m	200 N·m	1/2	595 mm	95 mm	74 mm	60	Mignon (AA) 1,5V	0,5/0,1 ft·lb	5/1,0 in·lb	0,5/0,1 N·m	14 x 18 mm	1663 g	2198 g	Torque wrench service/series MANOSKOP® 730DR 20-200N·m 1/2" L. 595mm	Jetzt entdecken
96501840	40	730DR	40-400 N·m	30-300 ft·lb	360-3600 in·lb	40 N·m	400 N·m	3/4	738 mm	83 mm	70 mm	60	Mignon (AA) 1,5V	1,0/0,1 ft·lb	10/1,0 in·lb	1,0/0,1 N·m	14 x 18 mm	2232 g	4722 g	Torque wrench service/series MANOSKOP® 730DR 40-400N·m 3/4" L. 738mm	Jetzt entdecken
96501865	65	730DR	65-650 N·m	48-480 ft·lb	580-5800 in·lb	65 N·m	650 N·m	3/4	975 mm	85 mm	70 mm	60	Mignon (AA) 1,5V	1,0/0,1 ft·lb	10/1,0 in·lb	1,0/0,1 N·m	14 x 18 mm	3767 g	6530 g	Torque wrench service/series MANOSKOP® 730DR 65-650N·m 3/4" L. 975mm	Jetzt entdecken
96501880	80	730DR	80-800 N·m	60-600 ft·lb	720-7200 in·lb	80 N·m	800 N·m	3/4	1255 mm	120 mm	90 mm	30	Mignon (AA) 1,5V	1,0/0,1 ft·lb	10/1,0 in·lb	1,0/0,1 N·m	22 x 28 mm	6492 g	12500 g	Torque wrench service/series MANOSKOP® 730DR 80-800N·m 3/4" L. 1255mm	Jetzt entdecken
96502065	II/65	730DR	65-650 N·m	48-480 ft·lb	580-5800 in·lb	65 N·m	650 N·m	3/4	977 mm	140 mm	100 mm	60	Mignon (AA) 1,5V	1,0/0,1 ft·lb	10/1,0 in·lb	1,0/0,1 N·m	22 x 28 mm	3994 g	9000 g	Torque wrench service/series MANOSKOP® 730DR 65-650N·m 3/4" L. 977mm	Jetzt entdecken

Eigenschaften

includes reversible ratchet No. 735
patented electromechanical release
acoustic and visual trigger signal
mount for interchangeable insert tools
QuickRelease safety lock
quick setup via a convenient keypad
automatically adjust tightening torque by entering a non-standard extension length into the wrench settings
overload protection by acoustic and optical warning signal
automatic key lock prevents accidental adjustment of settings
indicating mode functions in both directions
units of measurement: N·m, ft·lb, in·lb
different tolerance limits adjustable depending on the type of bolted joint
optical evaluation of the bolted joint by green and red display
additional locking of the presets (function mode, trigger or target value, unit of measure, tolerance value, saving, extension length) by PIN
stores up to 7,500 results
USB interface
automatic warning of the next calibration date
calibration with perfectControl® calibration device No. 7794 or calibration system No. 7706
in sturdy plastic box (sizes 40-100 in steel box)
supplied with 2 x 1.5 V AA batteries
NiMH batteries AA/LR6, 1.2 V can be used
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 2%, ± 1 digit

Produkt-Highlights

Electromechanical cycle.

The MANOSKOP® with patented electromechanical cycle control measures the applied torque electronically. A visual evaluation of the bolted connection is provided by a display and signal lights on the side. Unlike a purely electronic torque wrench, the cycle and haptic user feedback are mechanical. A clearly perceptible cycle and an equally audible click indicate that the target value has been reached.

Comprehensive documentation.

Our electromechanical torque wrenches can be documented. They can be easily configured and programmed using the SensoMaster software. This means that all data can be read out, stored and subjected to further processing on the PC for better monitoring and optimization of the work processes. The digital measurement also allows the actual torque which has been applied (actual value) to be specified after triggering, as well as the target value.

Even for difficult areas of application.

STAHLWILLE electromechanical torque wrenches are ideal for areas of application where electronic torque wrenches reach the limits of their signalling capabilities - for example, when working overhead or when the display cannot be read. Even in loud, busy and very bright environments, where vibrations or optical and acoustic signals are difficult to perceive, electromechanical torque wrenches can indicate when the target value has been reached thanks to their patented haptic feedback.

Greater safety.

Our electromechanical torque wrenches minimize operating errors. For example, they can be used to parameterise and save bolted connections. The torque wrench then automatically sets the trigger torque for the selected bolted connection. The clicking torque is also specified digitally with precision, ruling out parallax effects (errors caused by an incorrect reading angle), which are possible when using a mechanical scale.

Intuitive operation with a clear display.

The LCD display is easy to read and evaluates the fastener visually by means of coloured displays. All settings can be made quickly and easily using the keyboard, which uses only four keys.

Interchangeable insert tools.

You receive our MANOSKOP® including a reversible ratchet. This is not permanently installed and can be replaced with other insert tools for your individual application.
