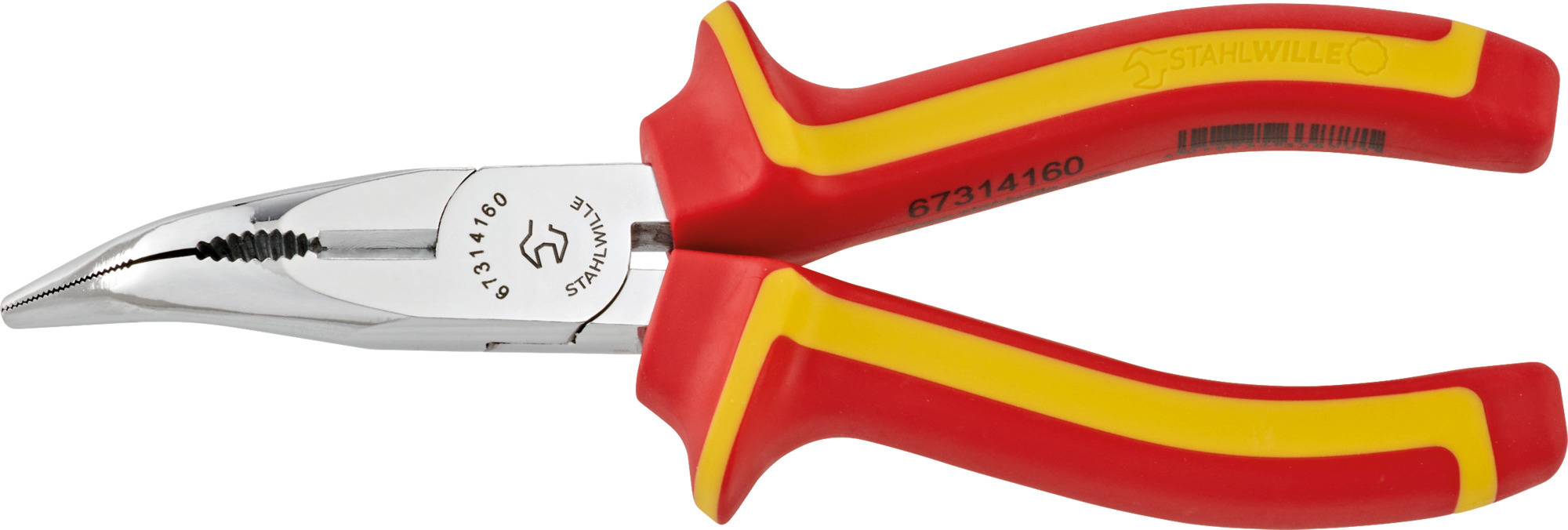

VDE telephone pliers
VDE telephone pliers
6731 VDE
Artikel-Nr. 67314160|EAN 4018754338771
Produkt-Varianten
| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Head | Handles | Head width mm (a) | Head thickness mm (T2) | Jaw length mm (b) | Tip width mm (f) | Tip thickness mm (T1) | Weight | Squares | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 67314160 | 160 mm | 56 mm | 28 mm | chrome-plated | 2-component handles | 18 mm | 9.5 mm | 43 mm | 3.5 mm | 3.5 mm | 160 g | 45 ° | |
| 67314200 | 200 mm | 58 mm | 43 mm | chrome-plated | 2-component handles | 20 mm | 11 mm | 63 mm | 5 mm | 4 mm | 220 g | 45 ° | Jetzt entdecken |
Eigenschaften
- half round pliers, curved (Form B 45°) with cutting edge and burner hole
- for gripping, holding and cutting cables as well as soft and hard wire
- with burner hole for holding nuts and stud bolts
- flat-round, curved jaws with serrated gripping surfaces
- drop-forged from tempered steel
- cutting edges with additional induction hardening to approx. 64 HRc
- VDE insulated up to 1000 V
- protective insulation according to IEC 60900-AC 1000 V / DC 1500 V
- chrome-plated
- with 2-component handle
- DIN ISO 5745
