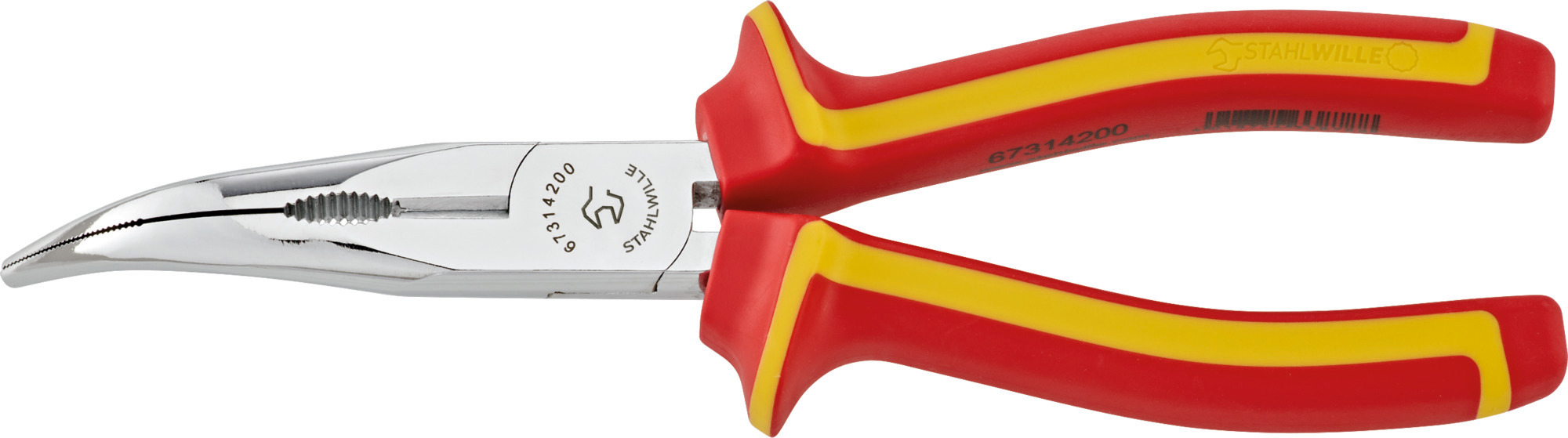

VDE telephone pliers

Produkt-Varianten

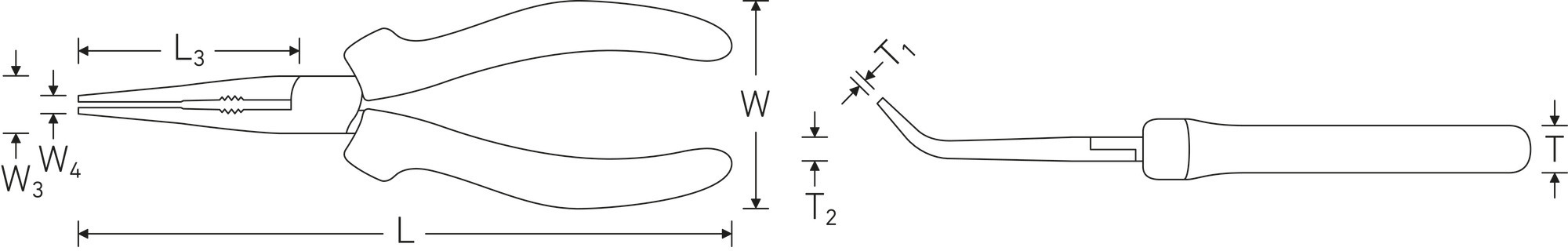

Product no.Length mm (L)Width mm (b)Height mm (h)HeadHandlesHead width mm (a)Head thickness mm (T2)Jaw length mm (b)Tip width mm (f)Tip thickness mm (T1)WeightSquares
67314160160 mm56 mm28 mmchrome-plated2-component handles18 mm9.5 mm43 mm3.5 mm3.5 mm160 g45 °
Jetzt entdecken
67314200200 mm58 mm43 mmchrome-plated2-component handles20 mm11 mm63 mm5 mm4 mm220 g45 °

Eigenschaften

    • half round pliers, curved (Form B 45°) with cutting edge and burner hole
    • for gripping, holding and cutting cables as well as soft and hard wire
    • with burner hole for holding nuts and stud bolts
    • flat-round, curved jaws with serrated gripping surfaces
    • drop-forged from tempered steel
    • cutting edges with additional induction hardening to approx. 64 HRc
    • VDE insulated up to 1000 V
    • protective insulation according to IEC 60900-AC 1000 V / DC 1500 V
    • chrome-plated
    • with 2-component handle
    • DIN ISO 5745

Downloads

Produktdatenblatt: STAHLWILLE_67314200_6731 VDE TELEFONZ. B 200,VERCHR,2KGRIFF_us.pdf
PDF | 0.17 MB
