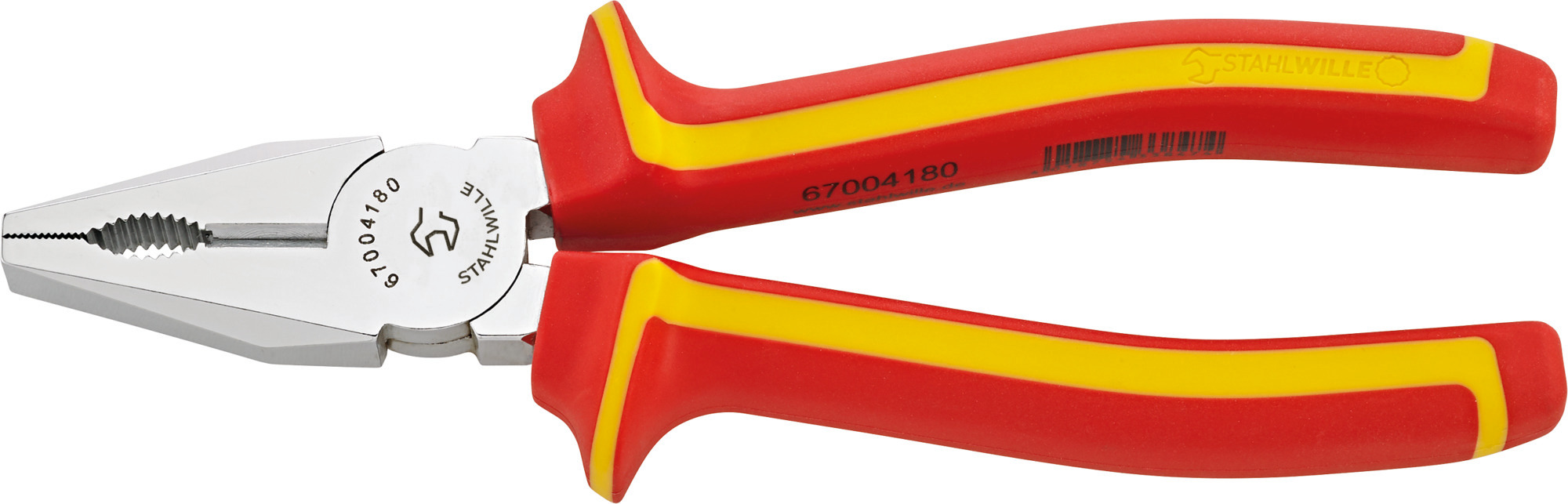

VDE combination pliers

VDE combination pliers

6700 VDE

Artikel-Nr. 67004180|EAN 4018754338474
  • The universal pliers are equipped with fine (gripping surfaces) and coarse serration (burner hole) for optimum gripping, cutting, holding and bending.
  • Additional inductive hardening of the cutting edges (approx. 64 HRc) supports optimum cutting performance during continuous use.
  • The sharp, honed cutting edges deliver equally accurate results with both hard and soft wire.
  • The inside of the handle is labelled with the EAN code, distributor and article number.

Produkt-Varianten

Product no.Length mm (L)Width mm (b)Height mm (h)HeadHandlesHead width mm (a)Head thickness mm (T2)Jaw length mm (b)Tip width mm (f)Weight
67004160160 mm60 mm28 mmchrome-plated2-component handles24 mm10.5 mm34 mm6 mm215 g
Jetzt entdecken
67004180180 mm60 mm30 mmchrome-plated2-component handles26 mm11.5 mm38 mm7 mm280 g
67004200200 mm63 mm31 mmchrome-plated2-component handles29 mm12.3 mm42 mm8 mm345 g
Jetzt entdecken

Eigenschaften

    • with fine and coarse serrated gripping area and cutting function
    • for gripping, holding and cutting cables as well as soft and hard wire
    • drop-forged from tempered steel
    • cutting edges with additional induction hardening to approx. 64 HRc
    • VDE insulated up to 1000 V
    • protective insulation according to IEC 60900-AC 1000 V / DC 1500 V
    • chrome-plated
    • with 2-component handle
    • DIN ISO 5746

Downloads

Produktdatenblatt: STAHLWILLE_67004180_6700 VDE KOMBIZANGE 180, VERCHR,2K-GRIFF_us.pdf
PDF | 0.19 MB
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
