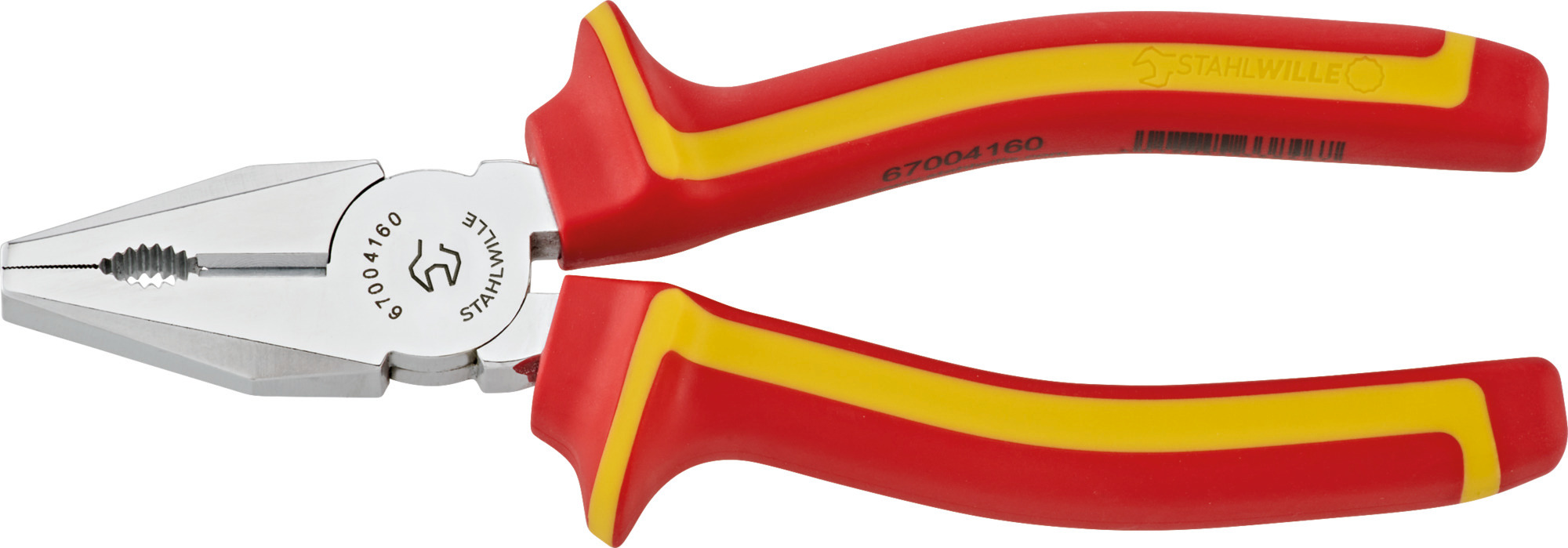

VDE combination pliers
VDE combination pliers
6700 VDE
Artikel-Nr. 67004160|EAN 4018754338467
- The universal pliers are equipped with fine (gripping surfaces) and coarse serration (burner hole) for optimum gripping, cutting, holding and bending.
- Additional inductive hardening of the cutting edges (approx. 64 HRc) supports optimum cutting performance during continuous use.
- The sharp, honed cutting edges deliver equally accurate results with both hard and soft wire.
- The inside of the handle is labelled with the EAN code, distributor and article number.
Produkt-Varianten

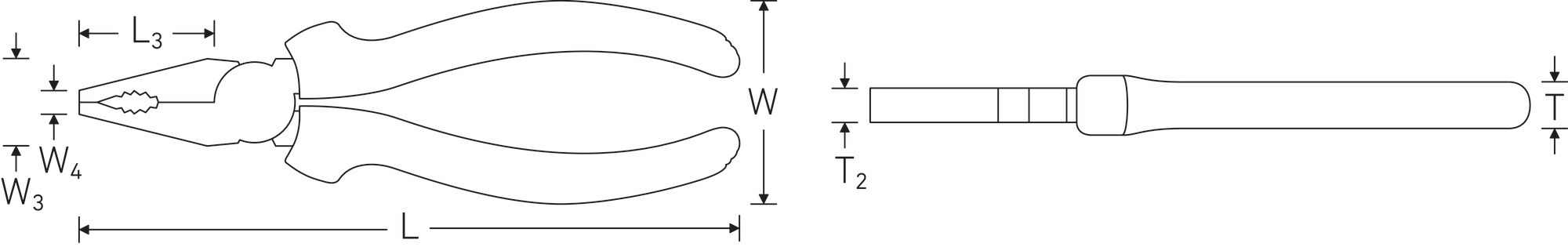

| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Head | Handles | Head width mm (a) | Head thickness mm (T2) | Jaw length mm (b) | Tip width mm (f) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 67004160 | 160 mm | 60 mm | 28 mm | chrome-plated | 2-component handles | 24 mm | 10.5 mm | 34 mm | 6 mm | 215 g | |
| 67004180 | 180 mm | 60 mm | 30 mm | chrome-plated | 2-component handles | 26 mm | 11.5 mm | 38 mm | 7 mm | 280 g | Jetzt entdecken |
| 67004200 | 200 mm | 63 mm | 31 mm | chrome-plated | 2-component handles | 29 mm | 12.3 mm | 42 mm | 8 mm | 345 g | Jetzt entdecken |
Eigenschaften
- with fine and coarse serrated gripping area and cutting function
- for gripping, holding and cutting cables as well as soft and hard wire
- drop-forged from tempered steel
- cutting edges with additional induction hardening to approx. 64 HRc
- VDE insulated up to 1000 V
- protective insulation according to IEC 60900-AC 1000 V / DC 1500 V
- chrome-plated
- with 2-component handle
- DIN ISO 5746
