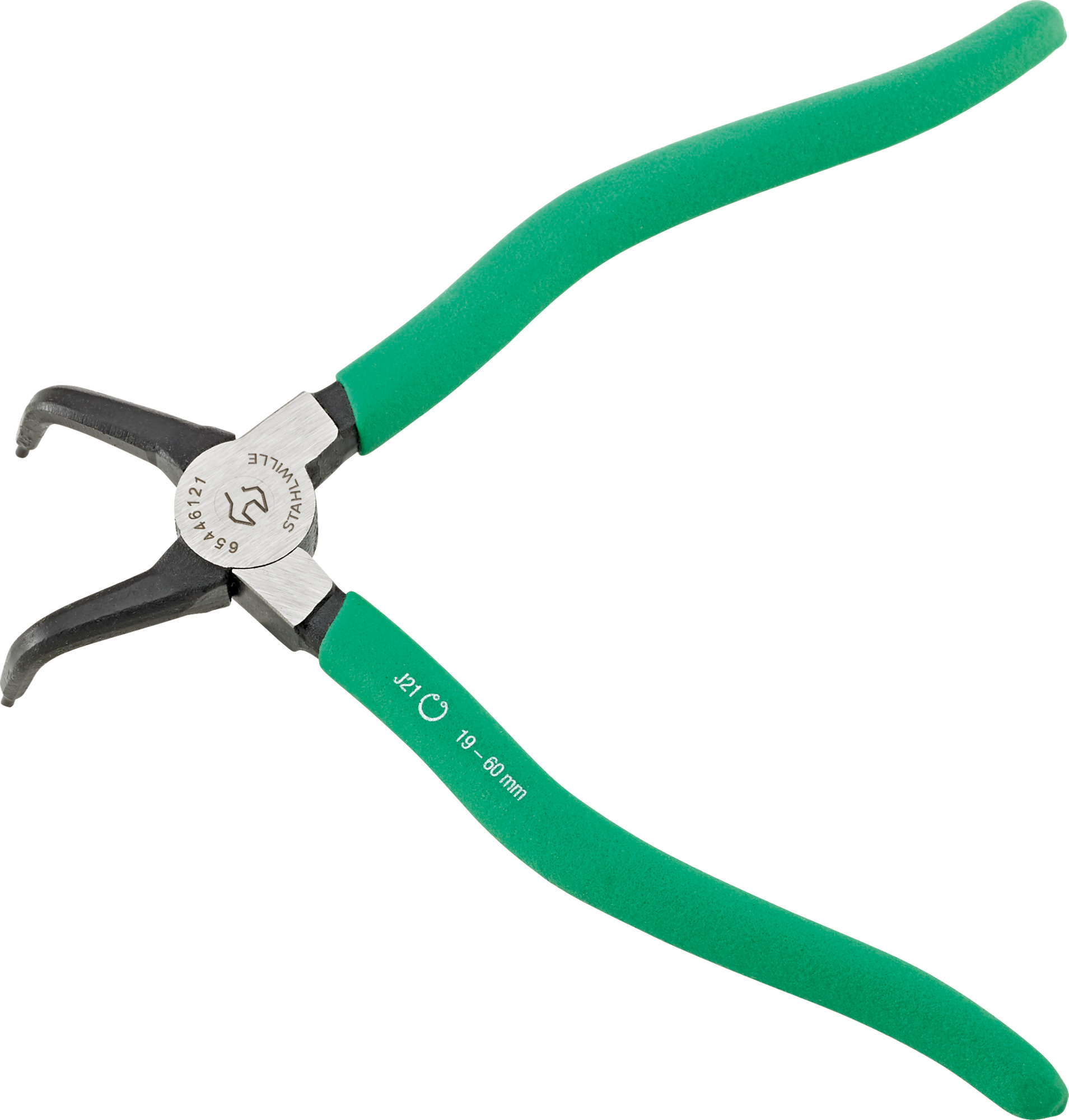

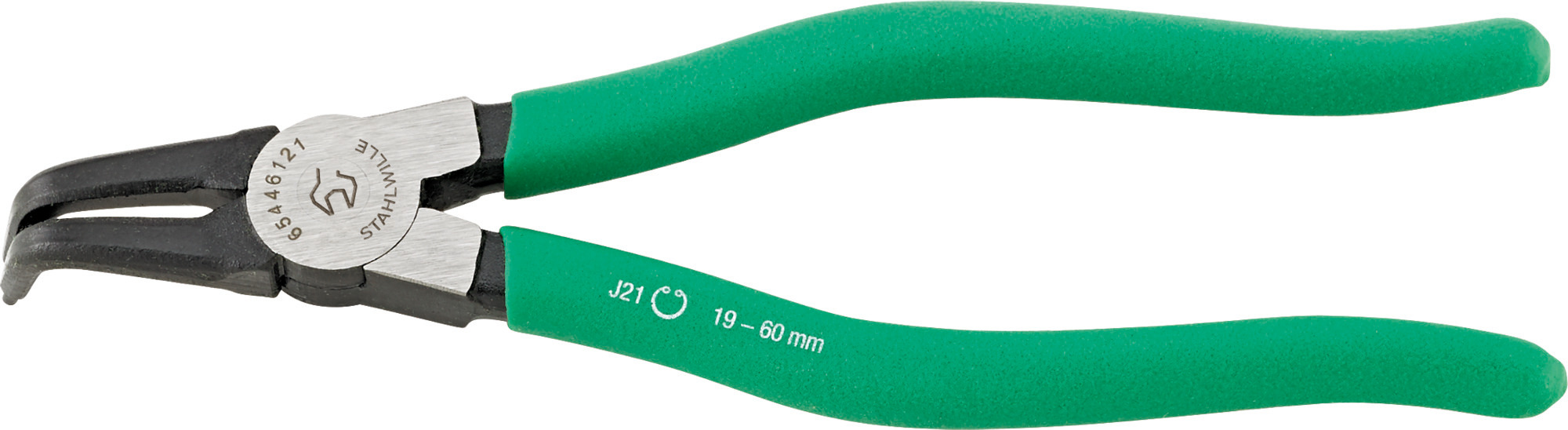

Circlip pliers for internal circlips
Circlip pliers for internal circlips
6544
Artikel-Nr. 65446111|EAN 4018754333837
- DIN 5256 D
- Angled jaws for easier work on components that are not directly accessible.
- Precision tips for optimum gripping in the mounting holes of the retaining rings.
- Anti-slip handles due to plastic coating with roughened surface.

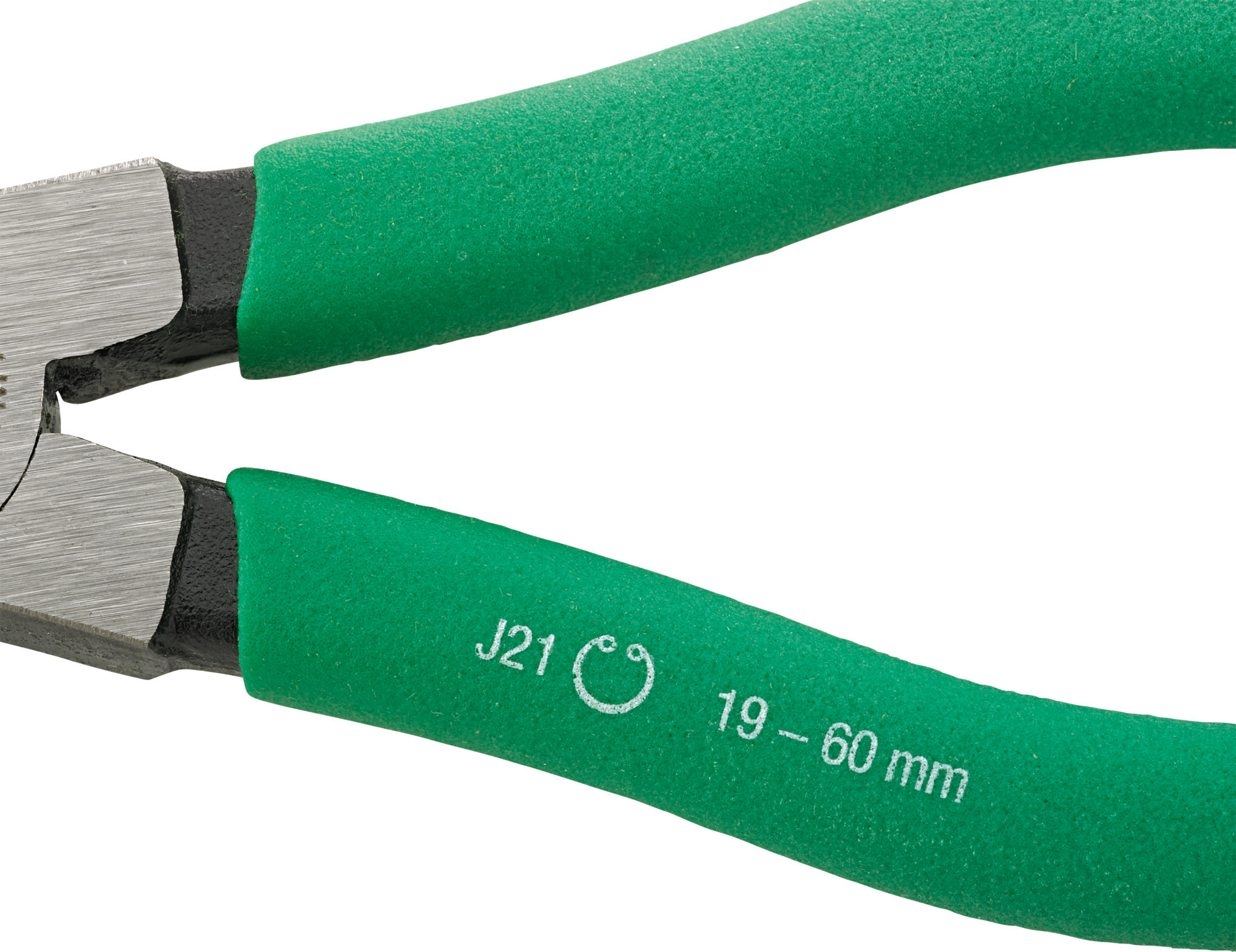

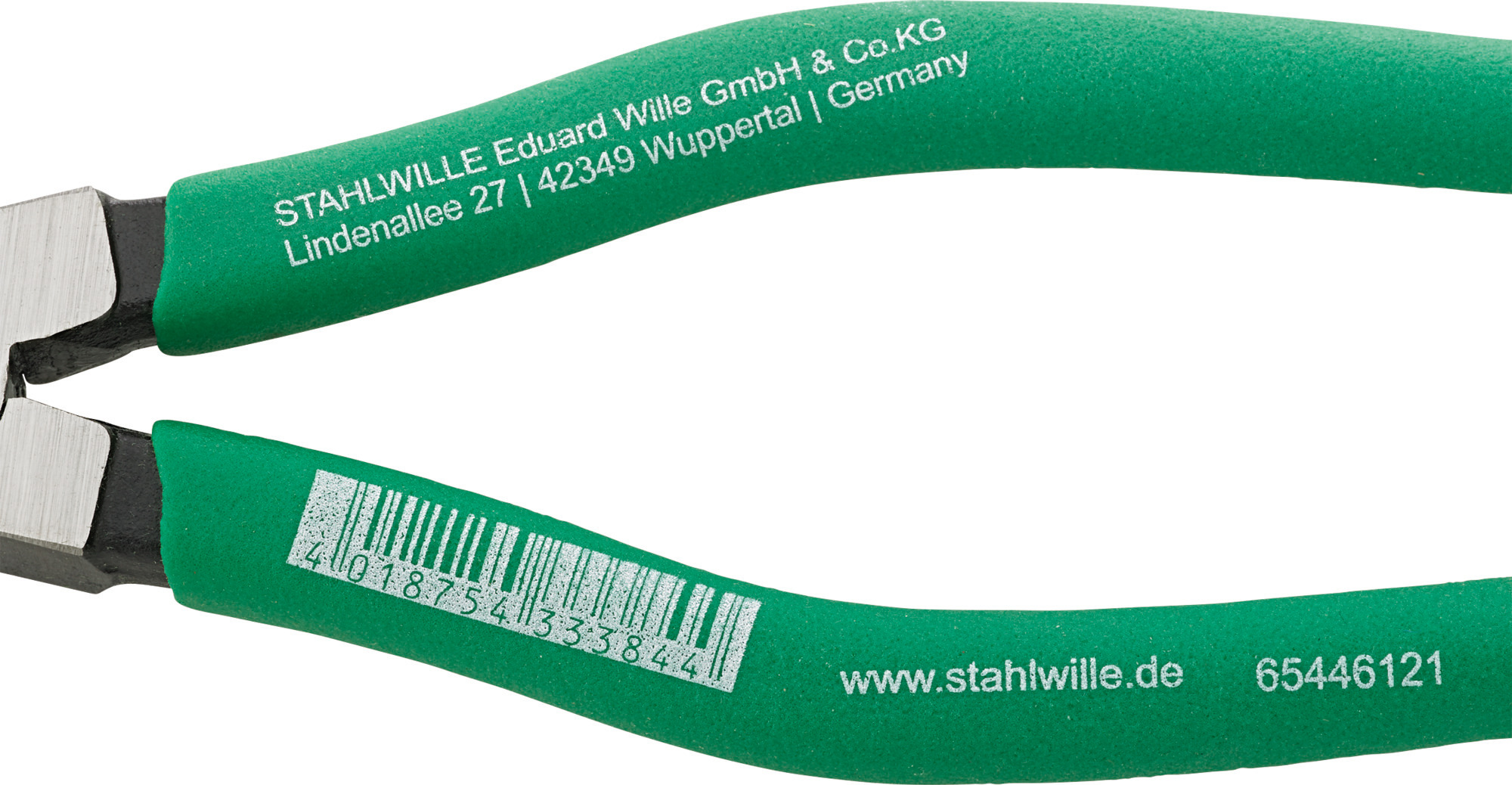

- Top of handle marked with ring type and diameter, inside of handle marked with EAN code.
Produkt-Varianten

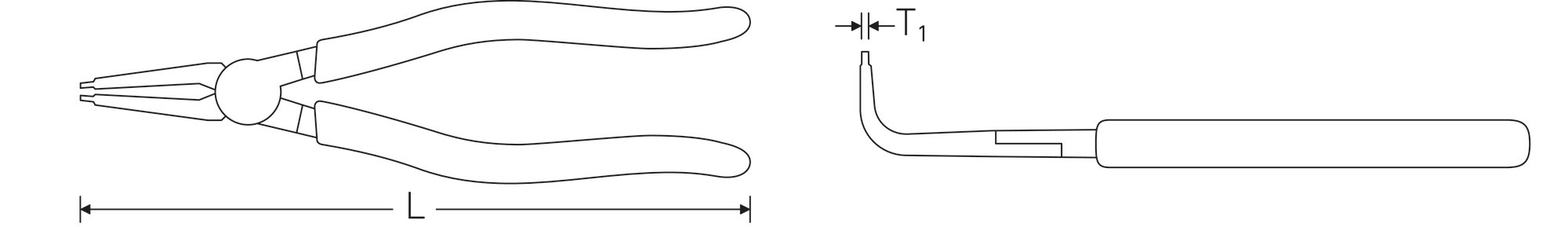

| Product no. | Size | Length mm (L) | Head | Handles | for circlips | Tip diameter [mm] | Weight | |
|---|---|---|---|---|---|---|---|---|
| 65446101 | J01 | 130 mm | polished | dip-coated with suregrip surface | 8-13 mm | 0,9 mm | 100 g | Jetzt entdecken |
| 65446111 | J11 | 130 mm | polished | dip-coated with suregrip surface | 12-25 mm | 1,3 mm | 100 g | |
| 65446121 | J21 | 170 mm | polished | dip-coated with suregrip surface | 19-60 mm | 1,8 mm | 150 g | Jetzt entdecken |
| 65446131 | J31 | 215 mm | polished | dip-coated with suregrip surface | 40-100 mm | 2,3 mm | 215 g | Jetzt entdecken |
| 65446141 | J41 | 290 mm | polished | dip-coated with suregrip surface | 85-140 mm | 3,2 mm | 432 g | Jetzt entdecken |
Eigenschaften
- DIN 5256 D
- circlip pliers with 90° angled jaws
- for gripping, inserting and removing inner rings in drilled holes
- drop forged
- cylindrical precision tips
- polished head
- plastic coated handle
