TORSIOTRONIC® 10/29 eClick
- Reliable torque screwdriver for accurate measurements within a small torque range.
- With patented eClick technology (electromechanical click: accurate electronic measurement combined with the familiar mechanical click).
- Visual evaluation of the bolted joint.
- Das 29-teilige Set deckt mit Steckschlüssel- und Schraubeneinsätzen mit Sechskant, INHEX und TORX®, Bits Kreuzschlitz nahezu alle gängigen Schraubverbindungen im unteren Drehmomentbereich ab.
- After clicking, the slipping mechanism prevents the defined tightening torque from being exceeded.
Produktvideo
Produkt-Varianten
| Product no. | Model | Measuring range N·m | Measuring range ft-lb | Measuring range in-lb | Measuring range cN·m | Measuring range in-oz | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96510000 | TORSIOTRONIC® 10/29 eClick | 1-10 N·m | 0,7-7,3 ft·lb | 8,8-88,5 in·lb | 100-1000 cN·m | 141-1417 in·oz | 420 mm | 227 mm | 70 mm | 2000 g | 29 |
Technologien und Leistungsmerkmale
DIN EN ISO 6789-2
2-component handle
Eigenschaften
- eClick - electromechanical, indicating and clicking type
- for clockwise and counter-clockwise tightening
- visual, acoustic, and haptic stop signal
- with 1/4" external square drive (6.3 DIN 3120/ISO 1174-1) and integrated ratchet function with 80 teeth, ratchet angle of 4.5°, for 1/4" sockets
- after triggering, the clutch mechanism prevents unintended overshooting of the set tightening torque and overtightening of the screw is not possible
- bright and energy-efficient OLED - colour display readable from virtually any angle
- optical evaluation of the applied torque by traffic light colours on the display and side mounted LEDs
- supported languages: DE, EN, IT, FR, ES
- stores up to 2,500 joint and sequence results, for transfer to the PC via an integrated micro-USB interface
- tolerances for evaluation purposes can be set individually
- short training time thanks to intuitive controls and an easy-to-understand menu structure
- three operating modes (Click, Track, Peak-Hold)
- bolted joints and sequences can be programmed
- with a 1/4" inner square at the end of the handle (6.3 DIN 3120/ISO 1174‑1) for accommodating a 1/4" T-handle
- units of measurement: cN·m, N·m, ft·lb, in·lb, in·oz
- the GEN3 version can charge the installed battery via the micro USB cable
- long battery life with battery-saving standby mode
- the batteries are quick and easy to change
- supplied with 3.6 V lithium battery, type 18650, packaged according to UN 3481
- with 2-component handle
- patented
- in a sturdy plastic box
- calibration certificate in accordance with DIN EN ISO 6789‑2:2017
- accuracy ± 4%
Key features of torque screwdriver TORSIOTRONIC® eClick

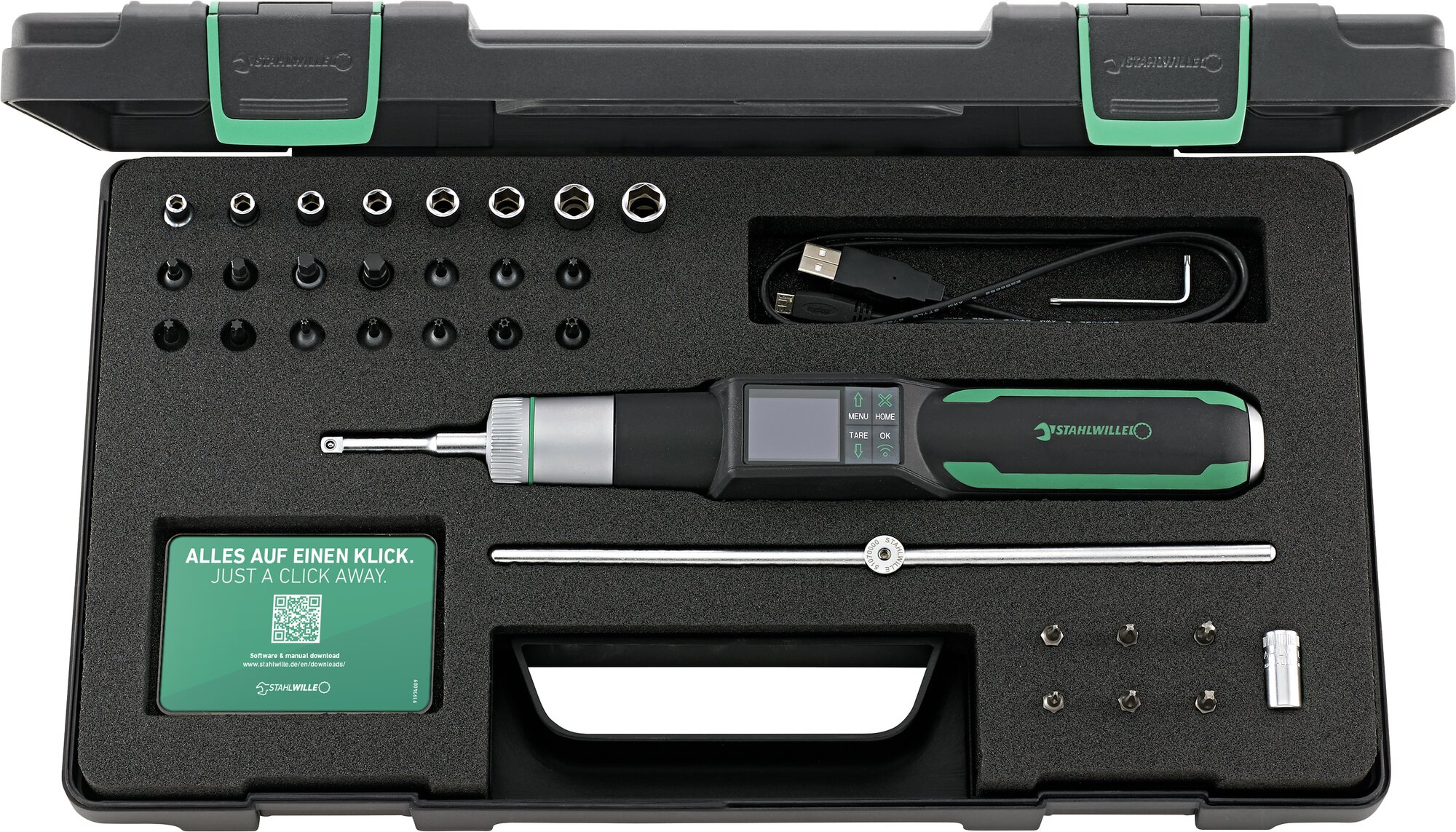

Contains:
1 electromechanical torque screwdriver 1/4" No. TORSIOTRONIC® 10 eClick: measurement range: 100-1,000 cN·m
8 sockets with hex 1/4" No. 40: 4; 5; 5.5; 6; 7; 8; 9; 10 mm
3 bits PHILLIPS® 1/4" No. PH 1221-1223: PH1; PH2, PH3
3 bits POZIDRIV® 1/4" No. PZ 1221-1223: PZ1; PZ2, PZ3
4 screwdriver sockets INHEX 1/4" No. 44K: 3; 4; 5; 6 mm
5 screwdriver sockets TORX® 1/4" No. 44KTX: T8; T9; T10; T15; T20
5 screwdriver sockets TORX® with hole 1/4" No. 44 KTXB: T8; T9; T10; T15; T20
1 bit holder 1/4" No. 412
+ sturdy plastic box, SensoMaster 4, USB cable, T-handle (size 10), battery 3.6 V, type 18650, packed in accordance with UN 3481
Produkt-Highlights
Electromechanical cycle.

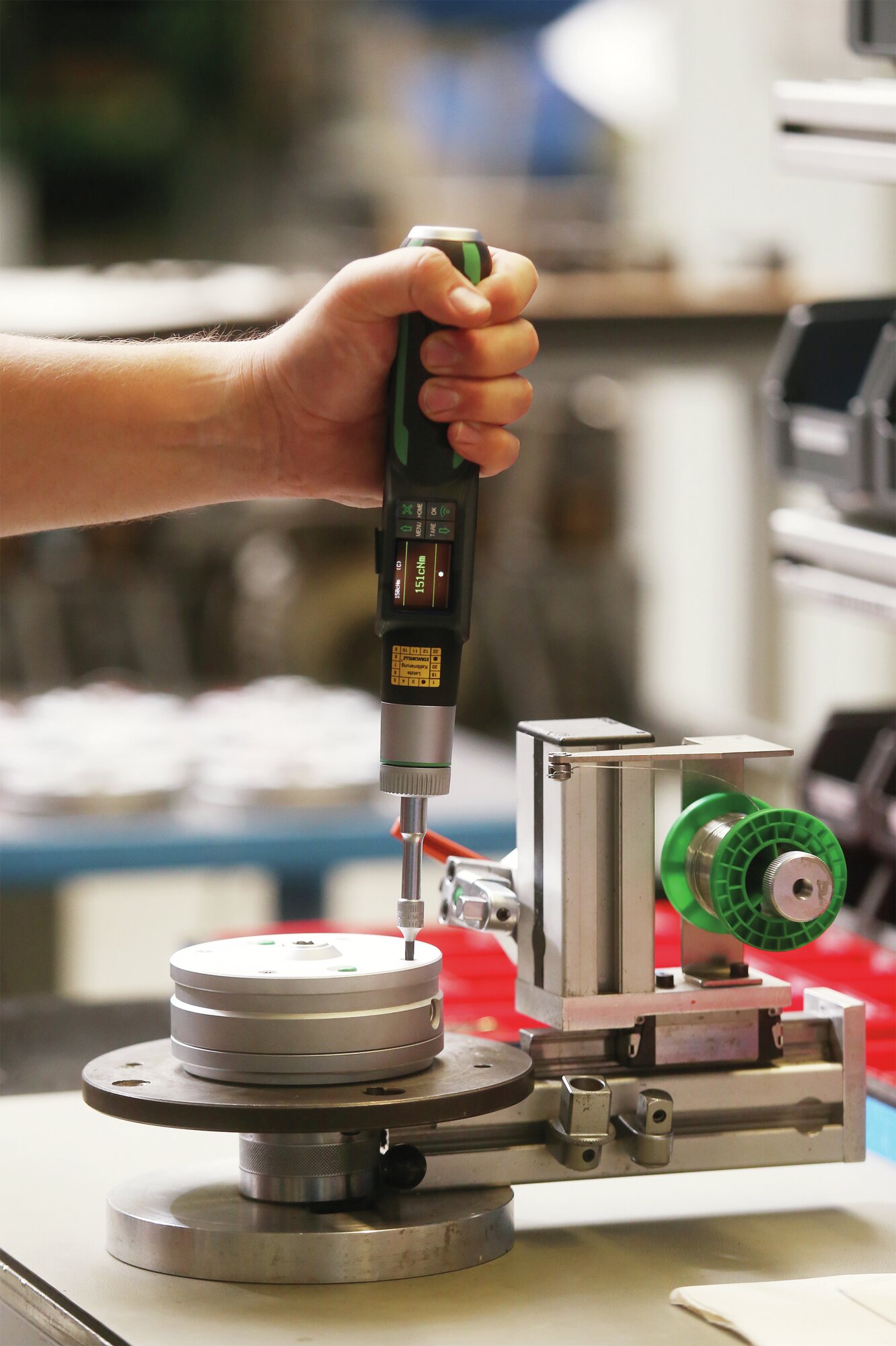

The TORSIOTRONIC® is the first electromechanical torque screwdriver on the market. It measures the applied torque electronically. The display and signal lights on the side provide a visual assessment of the bolted connection. Unlike a purely electronic torque wrench, the cycle and haptic user feedback are mechanical. A clearly perceptible cycle and an equally audible click indicate that the target value has been reached.
Maximum precision with minimum torque.
Our torque screwdriver is ideal for bolted connections with low torques starting at just 0.12 N·m. Low accuracy ensures precise screw tightening.
Complete documentation.
Our TORSIOTRONIC® is documentation-compatible. It can be easily configured and programmed using the SensoMaster software. This allows all data to be read out, stored and further processed on a PC for better monitoring and optimization of work processes.
Even for difficult areas of application.
The electromechanical STAHLWILLE torque screwdriver is ideal for areas of application in which electronic torque screwdrivers reach the limits of their signalling capabilities - for example, when working overhead or when the display cannot be read. Even in loud, busy and very bright environments, where vibrations or optical and acoustic signals are difficult to perceive, our TORSIOTRONIC® can communicate when the target value has been reached thanks to its patented haptic feedback.
