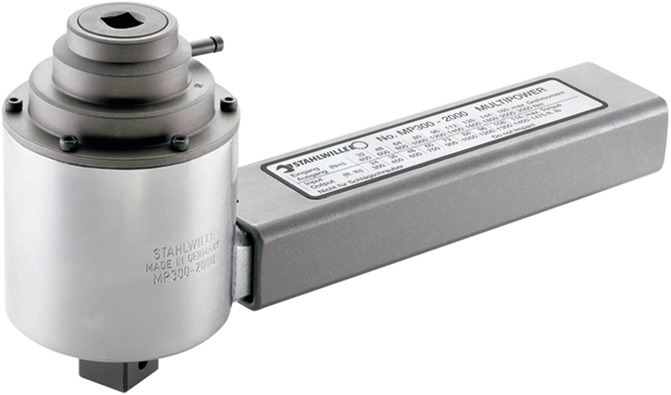

Torque multiplier MULTIPOWER
Torque multiplier MULTIPOWER
MP300-2000
Artikel-Nr. 53032000|EAN 4018754186808
- With overload protection and planetary gears.
Produkt-Varianten
| Product no. | Size | Length mm (L) | Width mm (b) | Height mm (h) | External square [inch] | Torque transmission | Gear ratio | Internal square [inch] | max. output capacity E1 | max. output capacity E2 | max. input capacity E1 | max. input capacity E2 | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53030800 | 800 | 215 mm | 66 mm | 85 mm | 3/4 " | 1 : 3,5 | 4 : 1 | 1/2 " | 800 N·m | 590 ft·lb | 229 N·m | 169 ft·lb | 2000 g | 5838 g | Jetzt entdecken |
| 53031350 | 1350 | 265 mm | 90 mm | 106 mm | 3/4 " | 1 : 3,6 | 4 : 1 | 3/4 " | 1350 N·m | 996 ft·lb | 375 N·m | 277 ft·lb | 3400 g | 7500 g | Jetzt entdecken |
| 53032000 | 2000 | 330 mm | 95 mm | 161 mm | 1 " | 1 : 12,5 | 16 : 1 | 1/2 " | 2000 N·m | 1475 ft·lb | 160 N·m | 118 ft·lb | 7000 g | 11000 g | |
| 53033000 | 3000 | 330 mm | 95 mm | 161 mm | 1 " | 1 : 12,5 | 16 : 1 | 3/4 " | 3000 N·m | 2212 ft·lb | 240 N·m | 177 ft·lb | 7000 g | 10805 g | Jetzt entdecken |
| 53035000 | 5000 | 400 mm | 120 mm | 180 mm | 1 1/2 " | 1 : 17,0 | 20 : 1 | 3/4 " | 5000 N·m | 3687 ft·lb | 294 N·m | 217 ft·lb | 10400 g | 14000 g | Jetzt entdecken |
Eigenschaften
- with overload protection and planetary gears
- in carrying box
- with one spare sun wheel (overload cut-out)
- deviation of indication ± 5%
