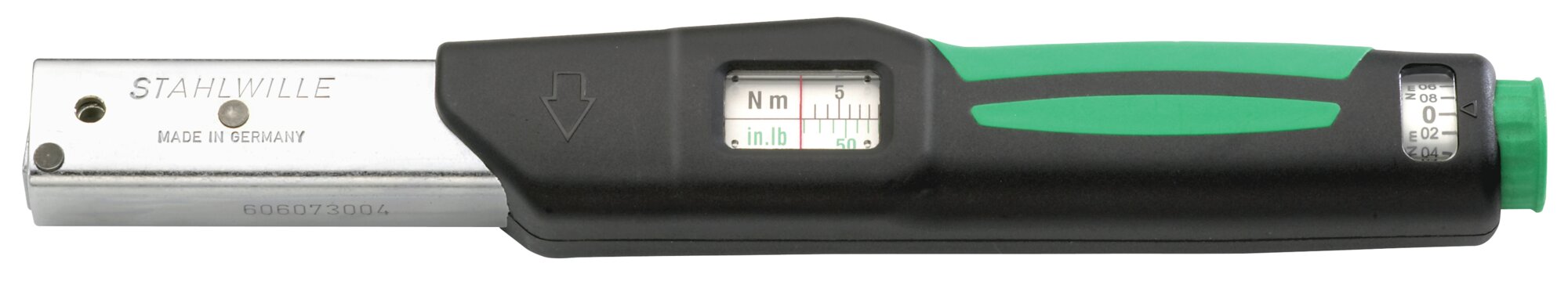

Torque wrench service MANOSKOP® with holder for insert tools
Torque wrench service MANOSKOP® with holder for insert tools
730N
Artikel-Nr. 50181102|EAN 4018754295234
- Holder for interchangeable inserts/sockets.
Produkt-Varianten
| Product no. | Size | Measuring range N·m | Measuring range in·lb | MA N·m | Nominal value N·m | Length mm (L) | Width mm (b) | Height mm (h) | Fine scale division | Size tool holder [internal square drive] | LF | SF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50181102 | 2 | 4-20 N·m | 40-180 in·lb | 4 N·m | 20 N·m | 275 mm | 28 mm | 23 mm | 0,2 N·m | 9 x 12 mm | 226 mm | 17,5 mm | 737 g |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to “0” after use.
Eigenschaften
- mount for interchangeable insert tools
- QuickRelease safety lock
- can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- display deviation value ± 3% (size 2; a/2 4 %)
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Triggering dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
