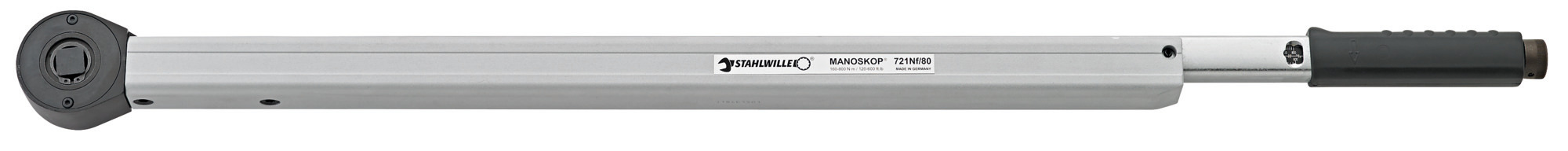

Torque wrench standard MANOSKOP® with fixed ratchet
Torque wrench standard MANOSKOP® with fixed ratchet
721Nf
Artikel-Nr. 50200081|EAN 4018754031979
Produkt-Varianten

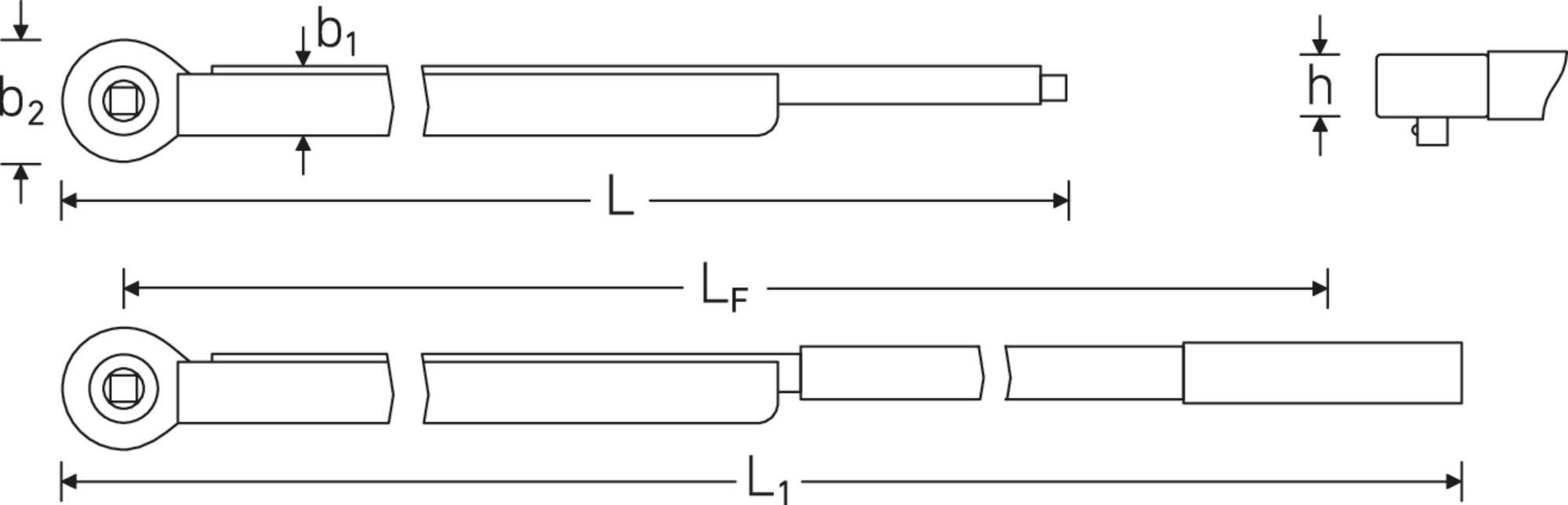

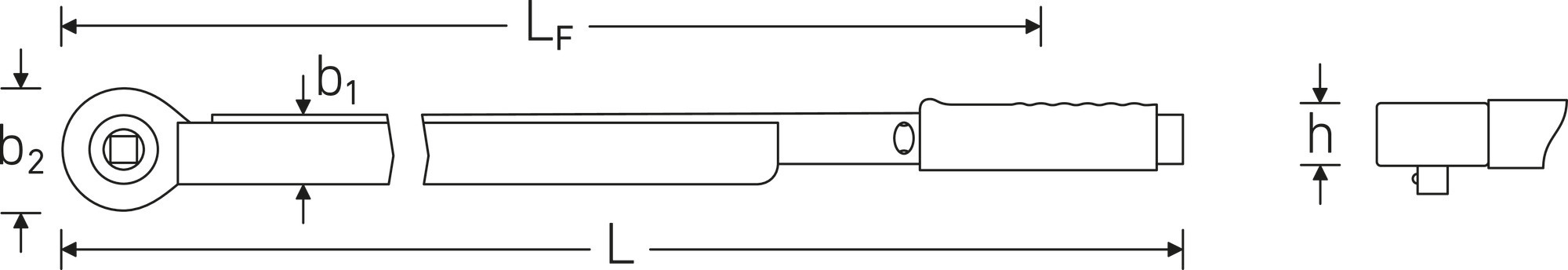

| Product no. | Size | Model | Measuring range N·m | Measuring range ft-lb | MA N·m | Nominal value N·m | External square drive (inch) | L1 | Length mm (L) | b1 | b2 | Height mm (h) | LF | Weight (g) | Scale division N·m | Scale division ft-lb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50200081 | 80 | 721Nf | 160-800 N·m | 120-600 ft·lb | 160 N·m | 800 N·m | 3/4 | - mm | 1050,5 mm | 46,5 mm | 76 mm | 42 mm | 938 mm | 6380 g | 20 N·m | 20 ft·lb | |
| 96502001 | 100 | 721Nf | 200-1000 N·m | 150-725 ft·lb | 200 N·m | 1,000 N·m | 3/4 | 1503,5 mm | 820 mm | 46,5 mm | 76 mm | 42 mm | 1365,5 mm | 7010 g | 25 N·m | 25 ft·lb | Jetzt entdecken |
Technologien und Leistungsmerkmale
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to '0' after use.
Factory calibration certificate (ISO calibration)
Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.
Eigenschaften
- clicking type with dual stop signal
- Quick adjustment thanks to easy-to-operate locking lever in handle
- with permanently installed ratchet
- 30 teeth
- dual scale N·m/ft·lb
- left-handed tightening through a reversible square
- all sensitive parts are protected by the robust tubular steel housing in alu-U-profile
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- delivered in a textile bag
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.
