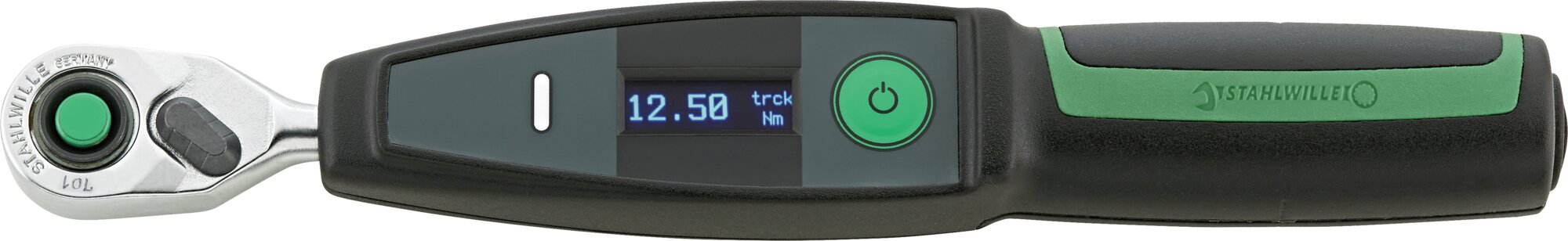

Electronic torque wrench SENSOTORK® with fixed fine-tooth ratchet
Electronic torque wrench SENSOTORK® with fixed fine-tooth ratchet
701/2
- Electronic torque wrench for a small measuring range of 1-20 N·m.
- Displaying with acoustic, haptic and visual evaluation of the torque achieved.
- The compact design with built-in fine-tooth ratchet makes precise screw tightening possible, even in confined spaces.
- Simple documentation of the measured values on the PC via the USB interface.
- The QuickRelease safety lock protects against unintentional loosening and allows tools to be changed quickly.
Produkt-Varianten
| Product no. | Measuring range N·m | MA N·m | Nominal value N·m | Measuring range cN·m | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h1) | Height mm (h2) | Battery type | LF | Weight | Weight with box | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96504502 | 1-20 N·m | 1 N·m | 20 N·m | 100-2000 cN·m | 1/4 | 210 mm | 22.6 mm | 26 mm | 10 mm | Lithium-Batterie 3,6 V, Typ 14500 | 160 mm | 145 g | 710 g | |
| 96504602 | 1-20 N·m | 1 N·m | 20 N·m | 100-2000 cN·m | 1/4 | 210 mm | 22.6 mm | 26 mm | 10 mm | 160 mm | 132 g | 700 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
2-component handle
Fine-tooth ratchet mechanism
Factory calibration certificate (ISO calibration)
Eigenschaften
- indicating
- slim, compact shape for smaller torques from 1 N·m upwards
- measuring units: N·m, cN·m, ft·lb, in·lb
- measurements independent of the point of application of force
- additional functions using SensoMaster 4 software (not included, free download at www.stahlwille.com):
- supplied with 3.6 V lithium battery, type 14500, packed in accordance with UN3091, Class 9
- calibration in conjunction with perfectControl® calibrating unit No 7794 or complete calibration system No 7706. Readjustment does not require disassembly
- certificate in accordance with DIN EN ISO 6789-2:2017
- in sturdy plastic box
- display deviation value ± 4%
- adjustable joints
- evaluation of tightening operation by means of coloured LEDs, buzzer and vibration
- alibrating interval adjustable
- logging function
Produkt-Highlights
Compact.
With a compact length of only 21 cm, it is ideally suited to safe, accurate work in confined spaces.
Versatile.
For torques from 1 to 20 N·m – the ideal choice for bolt tightening on modern materials such as plastic, carbon and aluminium, for state-of-the-art bicycles with carbon frames, for example.
Intuitive use.
The required mode of operation (track, peak hold, user (fastener evaluation)) can be quickly and easily set using the single button setting system.
Accuracy counts - uncertainty is reduced to a minimum to guarantee accurate readings.
Comprehensive documentation.
Our electromechanical torque wrenches can be documented. They can be easily configured and programmed using the SensoMaster software. This means that all data can be read out, stored and subjected to further processing on the PC for better monitoring and optimization of the work processes. The digital measurement also allows the actual torque which has been applied (actual value) to be specified after triggering, as well as the target value.
