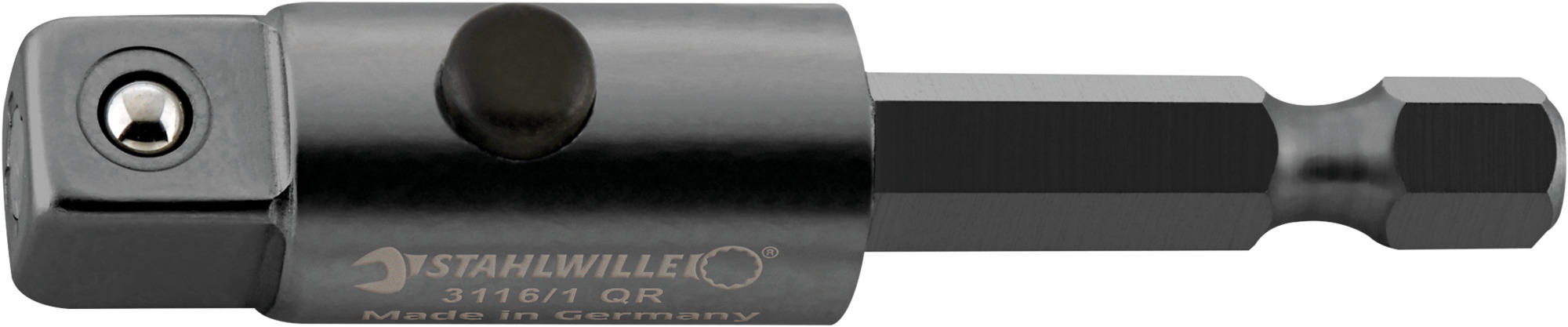

QuickRelease bit connectors, machine-operated
QuickRelease bit connectors, machine-operated
3116/1QR-3316/1QR
Artikel-Nr. 31161001|EAN 4018754284221
Produkt-Varianten

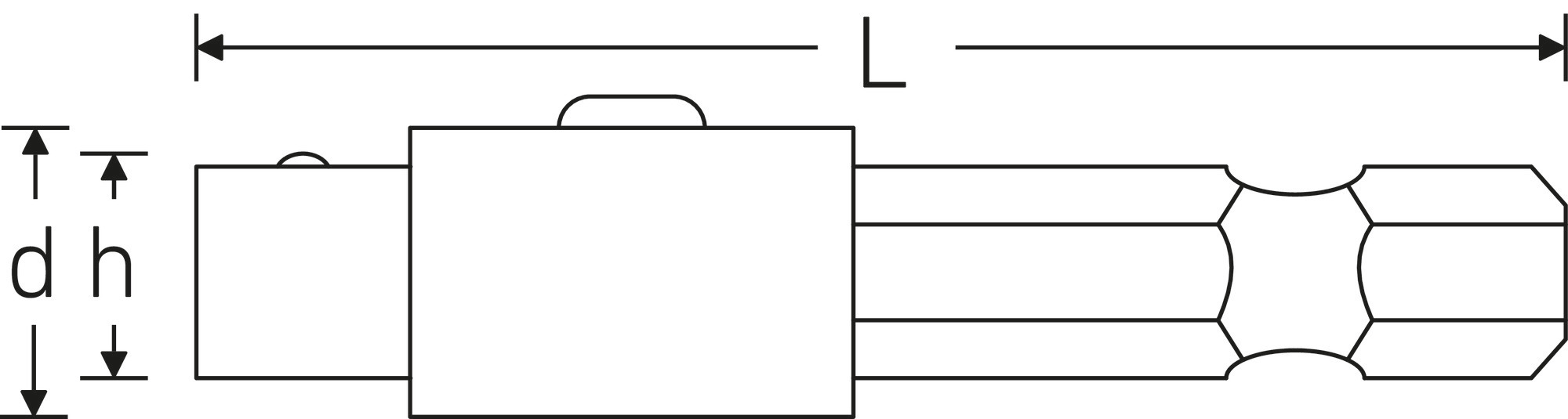

| Product no. | Model no. | Length mm (L) | Height mm (h) | External hex (inch) | External square | External square [inch] | External hex drive | Weight | |
|---|---|---|---|---|---|---|---|---|---|
| 31161001 | 3116/1QR | 50 mm | 11,2 mm | 1/4 | E 6,3 mm | 1/4 " | E 6,3 | 18 g | |
| 32161001 | 3216/1QR | 50 mm | 14,6 mm | 1/4 | E 10 mm | 3/8 " | E 6,3 | 26 g | Jetzt entdecken |
| 33161001 | 3316/1QR | 50 mm | 19,2 mm | 1/4 | E 12,5 mm | 1/2 " | E 6,3 | 46 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place and are only released again at the push of a button for a quick tool change.
Eigenschaften
- with external hex drive
- for machine-operated IMPACT sockets DIN 3129 / ISO 2725-2 with inner square DIN 3121 / ISO 1174-2
- with a larger diameter for improved contact of the IMPACT sockets
- Chrome Alloy Steel, gunmetal finish
