Assortment tools with workbench
Assortment tools with workbench
WB 625/267QR

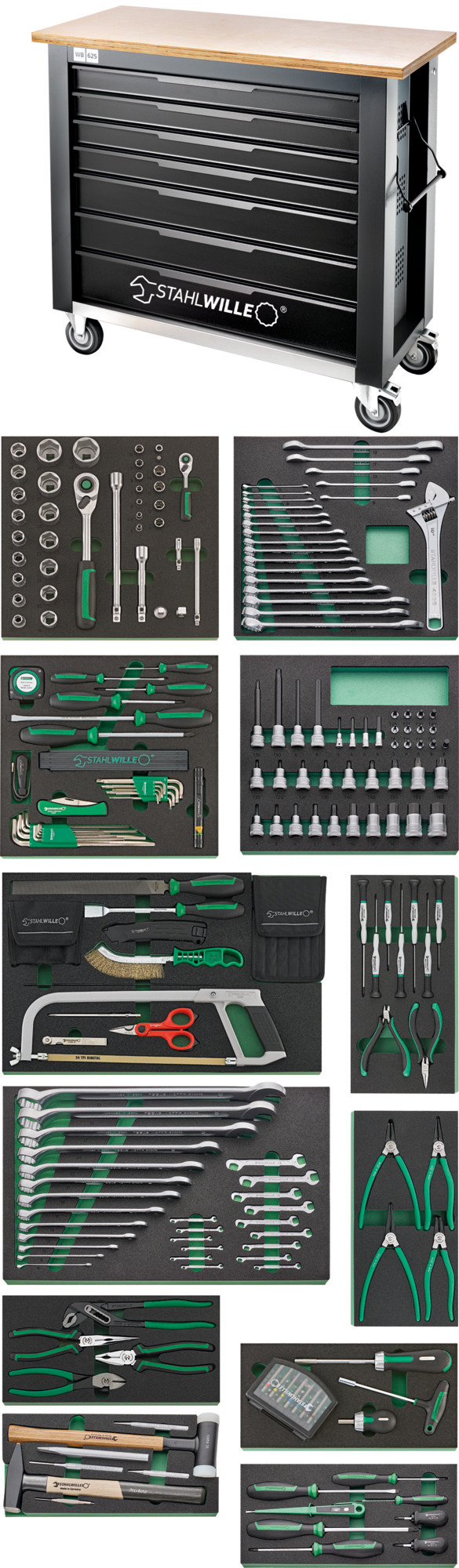

- Robust, mobile workbench including 267-piece tool set for use in various industrial ranges.
- Customised basic equipment or expansion of existing equipment in factories and workshops.
- Tools for high power transmission: 1/2" QR fine-tooth ratchet, sockets up to 32 mm, locking pliers, various screwdrivers, etc.
- WB 625 with 7 drawers and large birch multiplex worktop with a working height of 104 cm.
- The tools are securely integrated in durable, chemical-resistant TCS inlays with precise recesses and colour-coded signal areas.
Produkt-Varianten
| Product no. | Model | Length mm (L) | Width mm (b) | Height mm (h) | Number of drawers | Number of tools | Colour | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 98830181 | WB 625/267QR | 500 mm | 1150 mm | 1045 mm | 7 | 267 | anthracite, RAL 7016 | 151000 g |
Technologien und Leistungsmerkmale
Modular Inlay System
Tool Control System
QuickRelease
Eigenschaften
- three-stage safety concept:
- central locking with a lateral cylinder lock and folding key
- individual locks prevent inadvertent opening during transit
- tilt protection - it is not possible to pull out several drawers at the same time
- 7 easily removable drawers with full extension runners and ball bearing cage guide
- large work surface with FSC-certified birch multiplex worktop (1150 x 500 x 30 mm)
- working height of 104 cm
- stainless steel decorative trim
- oil and acid-resistant wheels (Ø 125 mm) with bearings protected from the ingress of dirt and fibres, and 2 parking brakes
- body RAL 7016, drawers and cabinet door RAL 9005, in durable industrial powder coating
- perforations on the side for hooks No. 8031-8041, e.g., for larger tools
- drawer dimensions: 1-4 up to 40 kg, 3-7 up to 60 kg
- safely integrated in the modular Tool Control System (TCS)
Key features of workbench
1 workbench, anthracite No. WB 625: 7 drawers
Contains 267-pieces:
96830264
11 sockets with hex 1/4" No. 40: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
17 sockets with hex 1/2" No. 52: 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 20; 21; 22; 24; 27; 30; 32 mm
2 QuickRelease extensions 1/4" No. 405QR: L. 54; 150 mm
1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L. 117 mm
1 bit adaptor, manual 1/4" No. 3116: L 25 mm
2 QuickRelease extensions 1/2" No. 509QR: L. 130; 255 mm
1 QuickRelease fine-tooth ratchet 1/2" No. 512QR N: L. 265.5 mm
1 square drive adaptor No. 410: 1/4 to 1/2"
1 square drive adaptor No. 513: 1/2 to 3/8"
1 bit holder 1/4" No. 412: L. 25 mm
96830265
2 bit ratchet screwdrivers 1/4" No. 4008: L. 95; 250 mm
1 bit holder 1/4" No. 4009: L. 176 mm
1 bit box No. 1206: 1 bit holder | L. 25 mm: SL4;5;6 mm (2x) | PH1;2;3 (3x) | PZ1;2;3 (3x) | T10;15;20;25;27;30;40 (2x) | T BO10;15;20;25;27;30;40 | INHEX 3;4;5 mm | L. 75 mm: SL6 mm | PH2;3 | PZ1;2 | T20;25 | 56-pieces
96830266
1 water pump pliers No. 6551: L. 240 mm
1 heavy-duty side cutter No. 6721: L. 180 mm
1 telephone pliers No. 6730: L. 200 mm
1 combination pliers No. 6700: L. 180 mm
96830267
16 combination spanners No. 13: 6; 7; 8; 10; 11; 12; 13; 14; 15; 16; 17; 18; 19; 21; 22; 24 mm
1 adjustable spanner No. 4025: max. 34 mm
5 combination ratchet spanners, flat No. 17F: 8; 10; 13; 17; 19 mm
96830268
1 electrician's slotted screwdriver No. 4628: 0.4 x 2.5 x 60 mm
2 slotted screwdrivers No. 4620: 0.8 x 4 x 100; 1.6 x 10 x 200 mm
3 PH cross-head screwdrivers No. 4630: PH1; PH2; PH3
1 cable knife No. 12320: Blade length: 90 mm
1 tape measure No. 12935: L. 3 m
1 mini magnetic lifter No. 12600: 270 g
1 torch No. 13132: 130 lm
1 wooden folding ruler No. 13112: L. 2 m
1 ball-ended L-Key set TORX® No. 10771/8: T9; T10; T15; T20; T25; T27; T30; T40
1 ball-ended L-Key set hex No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm
96830269
1 engineer’s hammer No. 10961: 500 g
1 dead blow hammer No. 10959: Ø 35 mm
1 flat chisel No. 102: W. 20; L. 175 mm
1 pin punch No. 108: Ø 6 mm
1 centre punch No. 105: Ø 10 mm
1 pin punch No. 109: Ø 3.4 mm
1 drift punch No. 104: Ø 4 mm
96830270
4 electronic's slotted screwdrivers No. 4751: 0.3 x 1.5; 0.4 x 2; 0.4 x 2.5; 0.5 x 3 mm
3 electrician's PH cross-head screwdrivers No. 4752: PH00; PH0; PH1
1 electronics needle nose pliers No. 6711: L. 130 mm
1 mini electronics side cutters No. 6708 L. 115 mm
96830271
1 screw extractor set No. 900/6 T: M3-M4; M5-M7; M8-M11; M10-M12; M10-M12M14-M1; M18-M22
1 warding file set No. 12800: 6-pieces
1 flat file No. 12036: L. 260 mm
1 gasket scraper No. 12718: L. 265 mm
1 safety knife No. 12965: L. 165 mm
1 wire brush No. 12377: L. 270 mm
1 steel ruler No. 13110: L. 300 mm
1 hacksaw No. 12050: Length: 300 mm
1 scriber No. 12322: Ø 3.15 mm
1 wire cutter No. 13148: L. 150 mm
1 precision feeler gauge, 20 blades No. 11095/20: 0.05-1.00 mm
96830272
13 combination spanners No. 14: 6; 8; 10; 13; 14; 17; 19; 21; 22; 24; 27; 30; 32 mm
15 double open-ended spanners No. 12: 3.2; 3.5; 4; 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
96830273
4 circlip pliers No. 6543-6546: J2; J21; A2; A21
96830274
9 screwdriver sockets TORX® 1/2" No. 54TX: T20; T25; T27; T30; T40; T45; T50; T55; T60
10 screwdriver sockets INHEX 1/2" No. 54: 4; 5; 6; 7; 8; 10; 12; 14; 17; 19 mm
2 screwdriver sockets TORX® 1/2" No. 1054TX: T30; T50
2 screwdriver sockets INHEX 1/2" No. 1054/2054: 6; 8 mm
4 screwdriver sockets INHEX 1/4" No. 44: 3; 4; 5; 6 mm
8 screwdriver sockets TORX® 1/4" No. 44KTX: T8; T10; T15; T20; T25; T27; T30; T40
5 screwdriver sockets INHEX 1/4" No. 44K: 3; 4; 5; 6; 8 mm
96830275
1 slotted screwdriver No. 4620: 1.0 x 5.5 x 125 mm
4 PZ cross-head screwdrivers No. 4640: PZ0; PZ1; PZ2; PZ3
2 PH cross-head screwdrivers No. 4734: PH1; PH2
1 voltage tester No. 10554: 125-250 V
Produkt-Highlights
Complete solution for industry.
Our extensive range includes high-quality tools for a wide range of applications, such as vehicle maintenance, general repairs or assembly and disassembly work. It includes wrenches with various sizes, sockets up to 32 mm, a large bit set, a wide selection of pliers and much more. With this equipment, you get a broad foundation for a wide range of applications in the automotive, electrical and mechanical engineering industries.
Mobile workstation.
The 7 full-extension drawers are pre-equipped with STAHLWILLE tools in safety foam inlays. The spacious 115 cm long work surface allows you to examine large components. With a working height of 104 cm and four smooth-running wheels, you have the ideal conditions for ergonomic and mobile working, both in and outside the workshop.
Secure down to the last detail.
The central lock with countersunk, side-mounted cylinder lock, together with the foldable key, protects against injury and damage. The individual locking mechanism prevents unintentional opening during transit - the anti-tilt protection makes it impossible to pull out multiple drawers simultaneously.
