Battery terminal pullers
Battery terminal pullers
11040
Artikel-Nr. 71120012|EAN 4018754172825
Produkt-Varianten
| Product no. | Model | Size | External hex drive (mm) | Number of hooks | max. load | max. torque | Clamping depth (h) mm | Span mm (w) | Spindle thread size | Hook base width mm (b) | Hook foot depth mm (c) | Thickness of hook base tip mm (a) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71120011 | 11040 | 1 | 12 mm | 2 | 2,5 t | 25 N·m | 45 mm | 10-60 mm | M10 x 110 | 11 mm | 11 mm | 2,5 mm | 245 g | Jetzt entdecken |
| 71120012 | 11040 | 2 | 12 mm | 2 | 3,0 t | 35 N·m | 65 mm | 10-70 mm | M10 x 110 | 11 mm | 11 mm | 2,5 mm | 261 g | |
| 71120013 | 11040 | 3 | 12 mm | 2 | 3,5 t | 45 N·m | 80 mm | 10-100 mm | M10 x 110 | 11 mm | 11 mm | 2,5 mm | 315 g | Jetzt entdecken |
Eigenschaften
- two-armed, with a self-centring quick-action clamp and automatic feed
- for battery terminal clamps, smaller ball bearings, pulleys etc.
- for narrow, hard-to-reach spaces
- as force is applied through the spindle, the extractor hooks automatically apply increasing force to the part being extracted
- particularly suited to car electrics, compressed air system repairs and similar applications due to the compact design and small hooks
- zinc plated
Produkt-Highlights
Adapted access geometry.

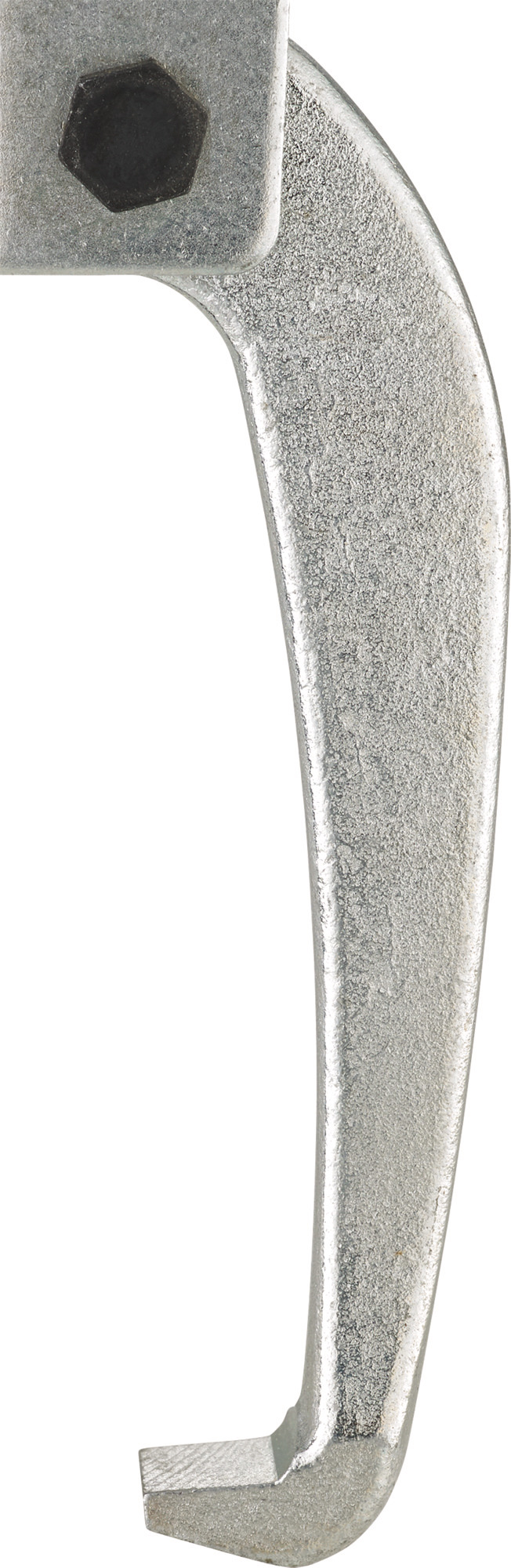

Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
