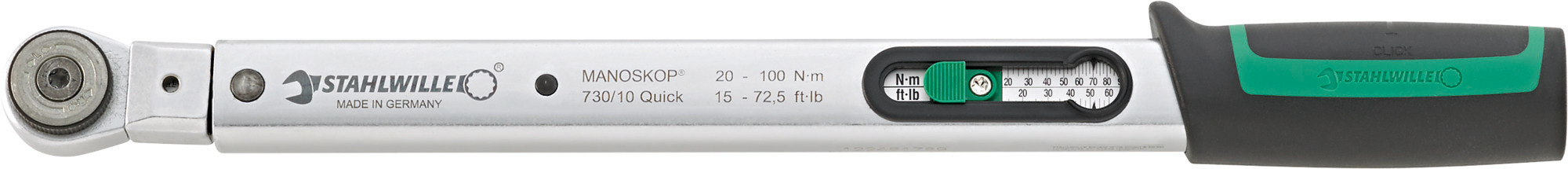

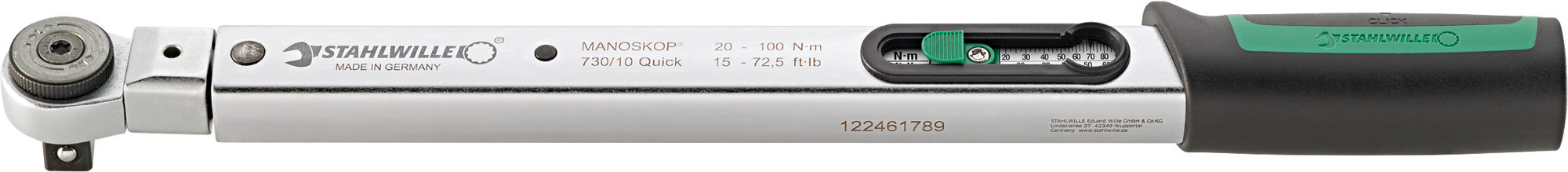

Torque wrench MANOSKOP®
Torque wrench MANOSKOP®
730R Quick
Artikel-Nr. 96501054|EAN 4018754339976
- Releasing
Produkt-Varianten

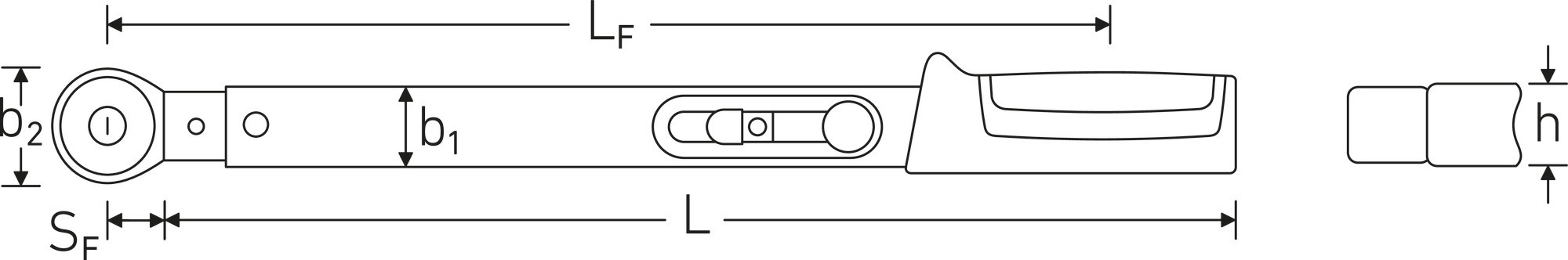

| Product no. | Size | Measuring range N·m | Measuring range ft·lb | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Size tool holder [internal square drive] | LF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 96501054 | 2-1 | 2-10 N·m | - ft·lb | 1/4 | 250 mm | 60 mm | 55 mm | 9 x 12 mm | 157,2 mm | 480 g | |
| 96504002 | 2 | 4-20 N·m | - ft·lb | 3/8 | 255 mm | 55 mm | 55 mm | 9 x 12 mm | 157,2 mm | 455 g | Jetzt entdecken |
| 96504004 | 4 | 8-40 N·m | - ft·lb | 3/8 | 285 mm | 55 mm | 55 mm | 9 x 12 mm | 200,8 mm | 642 g | Jetzt entdecken |
| 96504005 | 5 | 6-50 N·m | 5-36 ft·lb | 3/8 | 380 mm | 50 mm | 50 mm | 9 x 12 mm | 288 mm | 994 g | Jetzt entdecken |
| 96504010 | 10 | 20-100 N·m | 15-72,5 ft·lb | 1/2 | 430 mm | 55 mm | 55 mm | 9 x 12 mm | 343 mm | 1190 g | Jetzt entdecken |
| 96504012 | 12 | 25-130 N·m | 20-95 ft·lb | 1/2 | 475 mm | 52 mm | 52 mm | 14 x 18 mm | 390 mm | 1488 g | Jetzt entdecken |
| 96504020 | 20 | 40-200 N·m | 30-145 ft·lb | 1/2 | 530 mm | 55 mm | 55 mm | 14 x 18 mm | 435 mm | 1626 g | Jetzt entdecken |
| 96504030 | 30 | 60-300 N·m | 50-220 ft·lb | 1/2 | 590 mm | 50 mm | 50 mm | 14 x 18 mm | 500 mm | 1400 g | Jetzt entdecken |
| 96504040 | 40 | 80-400 N·m | 60-300 ft·lb | 3/4 | 675 mm | 72 mm | 63 mm | 14 x 18 mm | 570 mm | 2694 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to “0” after use.
Eigenschaften
- releasing
- No reset to "0" necessary, as measuring element is only loaded during the tightening process
- receptacle for interchangeable plug-in tools
- QuickRelease safety lock
- Flash adjustment by easy-to-operate clamping lever in the handle
- ergonomically shaped, non-slip adjustment element with thumb recess
- optimised ball handle for fatigue-free working
- double stop signal
- double scale N-m/ft-lb or N-m/in-lb
- on request also available as N-m version only without double scale
- left-hand tightening by turning over the plug-in tools
- further loads after releasing or loads against the functional direction, e.g. with stuck screws, do not affect the releasing mechanism, which is thus protected against damage
- calibration with the perfectControl® calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly
- certificate according to DIN EN ISO 6789-2:2017
- display deviation ± 4 %
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
