Wheel change set special edition Best tools never die
Wheel change set special edition Best tools never die
750NR/516/3/1 NDE
- Solid basic equipment for quick and stress-free wheel changes - ideal for use in workshops and for private use.
- The set ensures maximum protection for sensitive alloy wheels with its SevenFiveZero torque wrench with 1/2" fine-tooth ratchet and 3 wheel nut sockets (17/19/21 mm) with plastic sleeve.
- A clearly audible and noticeable 'click' when the release torque is reached, which can be conveniently and precisely adjusted via a rotary knob at the end of the handle (1 turn = 10 N·m).
- The telescopic function makes it easier to achieve the required torque thanks to the extended force loading point.
- In a handy soft case with a high-quality, embroidered special motif from the Best tools never die edition.
Produkt-Varianten
| Product no. | Model | Measuring range N·m | Scale division N·m | Fine scale division | External square drive (inch) | Length mm (L) | Width mm (b) | Height mm (h) | Weight (g) | Number of tools | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 96010130 | 750NR/516/3/1 NDE | 40-200 N·m | 10 N·m | 0,5 | 1/2 | 680 mm | 81 mm | 66 mm | 4080 g | 6 |
Technologien und Leistungsmerkmale
QuickSelect
Spring mechanism with the 'click'
2-component handle
Eigenschaften
- high-quality tool set specially designed for wheel mounting work
- in a soft case with embroidered special motif
- additional giveaway sticker sheet
- clicking type with dual stop signal
- with permanently installed, reversible fine-tooth ratchet
- 60 teeth
- robust, durable spring mechanism (toggle lever)
- quick, precise adjustment thanks to QuickSelect quick adjustment
- for controlled right-hand tightening
- clicking mechanism insensitive to further and counter loads (max. up to the measuring range limit of the torque wrench)
- optimal calibration with the perfectControl® calibration systems No. 7794 or the calibration systems No. 7706, 7791
- fixing of the set torque by locking
- dual scale N·m/ft·lb
- immediately ready for operation again after unloading
- for permanent maximum measuring accuracy and long service life, it is recommended to reset the key to '0' after use
- with 2-component handle
- calibration certificate according to DIN EN ISO 6789-2:2017
- accuracy ± 4 %
Top features of torque wrench No. 750NR/200 (SevenFiveZero)

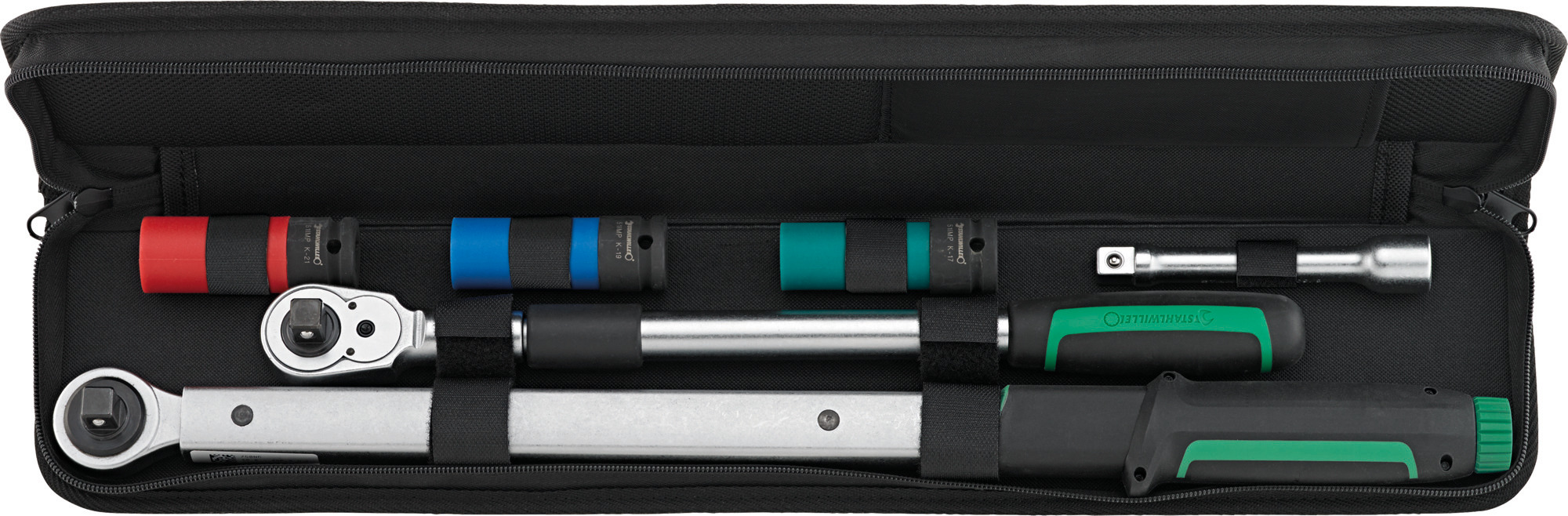

Contains 6-pieces:
1 torque wrench with fine-tooth ratchet 1/2" No. 750NR/200: Measuring range: 40-200 N·m; 30-150 ft·lb
1 telescopic ratchet 1/2" No. 516: L. 410-630 mm
3 IMPACT wheel nut sockets with hex 1/2" No. 51IMP K: 17 mm (green); 19 mm (blue); 21 mm (red)
1 extension 1/2" No. 509/5: L. 130 mm
Produkt-Highlights
Complete set for wheel changes on cars.
The set is a mobile and practical solution for various assembly work on car wheels. It consists of the mechanical torque wrench 750NR/200 with tactile cycle, loadable spring mechanism and a fine-tooth ratchet. The 3 robust IMPACT wheel nut sockets with protective cover, together with the extension and a telescopic ratchet, enable comfortable and damage-free working. Note: Please use the ratchet to remove screws - the torque wrench is designed for precise tightening and loosening up to max. 200 N·m.
Relaxed tightening.
The 750NR features a resilient spring mechanism that ensures reliable and effortless screw tightening at all times. The release torque can be conveniently and precisely adjusted in 0.5 N·m increments using a rotary knob. An easy-to-read scale and tactile feedback ensure accurate and controlled application.
Gentle wheel changing.
The special IMPACT sockets with plastic sleeves enable gentle wheel changes, e.g. on sensitive alloy wheels.
Adjustable length.
The length can be conveniently adjusted with one hand using the switch lever in 55 mm positions (410 mm, 465 mm, 520 mm, 575 mm and 630 mm).
Superior quality.
Our tool is made of high-quality and durable Chrome Alloy Steel. The durable and low-maintenance design ensures a long service life and reliable performance, even in demanding conditions.
Storage with style.
Our tools are stored in a high-quality soft case. Elastic rubber bands ensure that all components are held securely in place - even during transport. The lightweight case is equipped with a practical carrying handle and features a striking, high-quality embroidered skeleton motif from the Best tools never die edition. A real highlight for all STAHLWILLE fans who not only use their tools, but also love them.
