AOG-kit for aircraft in tool trolley No. 13217
AOG-kit for aircraft in tool trolley No. 13217
13224a WT/TS
- 179-piece imperial AOG kit with HPQ® aircraft tools in a tool trolley.
- Specially tailored tool set for fast, efficient, and reliable maintenance and repair.
- The professional tools combine the lowest manufacturing tolerances with the highest power transmission and durability.
- Thanks to the QuickRelease locking system, accidental tool loss is reliably prevented.
- Storing tools in the STAHLWILLE Tool Control System (TCS) combines the highest level of safety and efficiency.
Produkt-Varianten

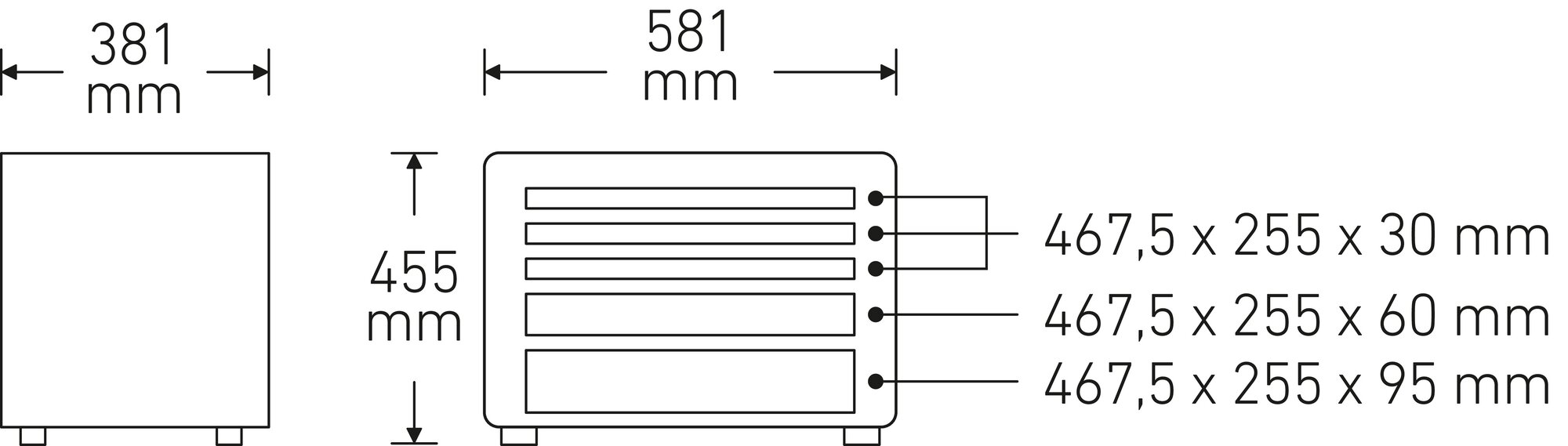

| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Weight | |
|---|---|---|---|---|---|---|
| 98814910 | 381 mm | 581 mm | 455 mm | 179 | 28400 g |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Foreign Object Damage
Tool Control System
QuickRelease
Eigenschaften

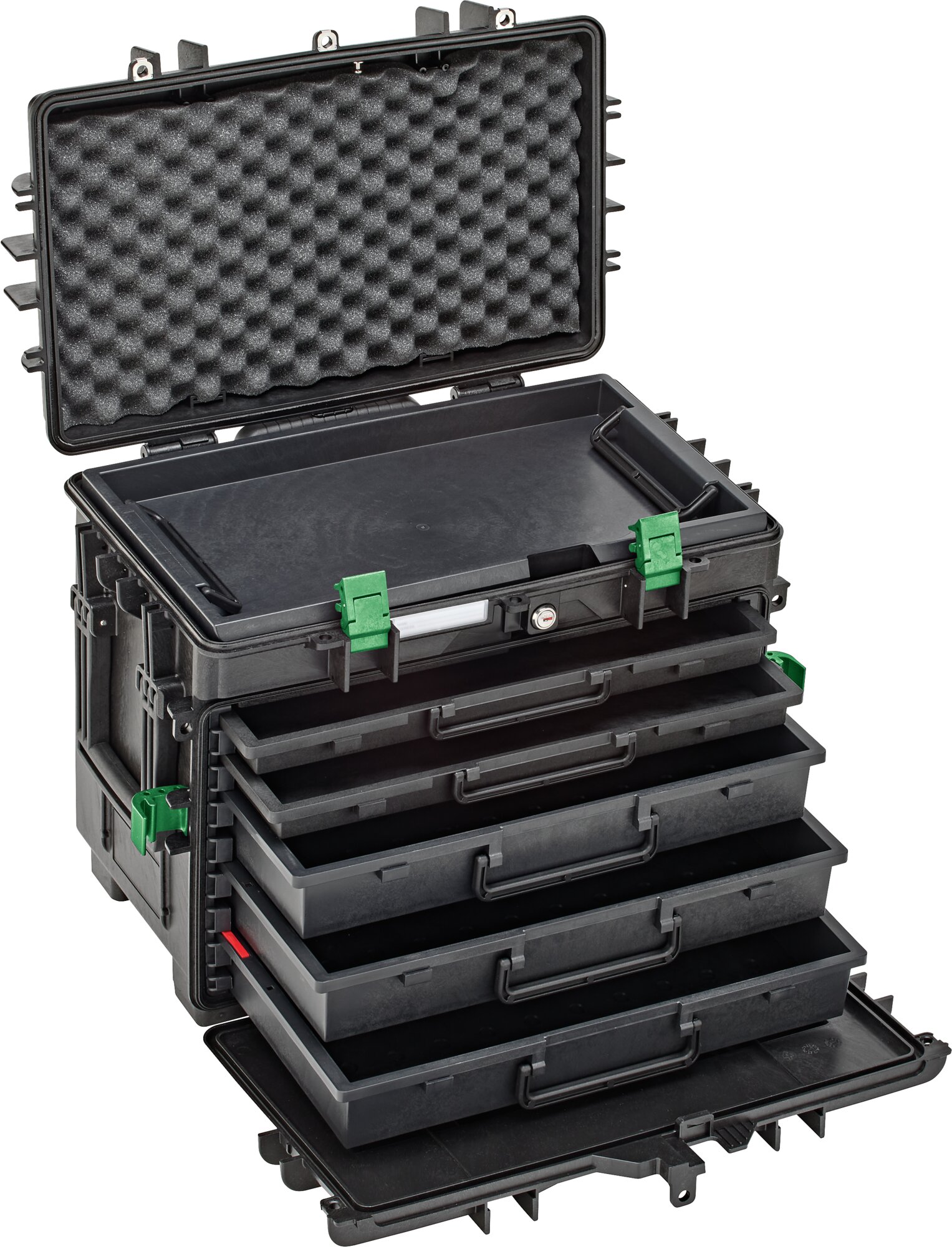

- for the maintenance of aircraft and helicopters
- extremely robust and durable tool trolley for professional use, constructed from lightweight polypropylene
- 6 easily removable, locking drawers with transparent lids with pull-out stop in 2 different heights
- with one top and one front removable lid
- 1 removable tray with 2 handles and 2 transparent drawer lids under the top lid
- drawers can be used as a separate toolbox thanks to the attachable transparent lids
- 2 smooth-running double castors on the telescopic handle side
- extendable telescopic handle and 2 side handles
- resistant to Skydrol, acetone, petrol and hydraulic oils
- lockable in 3 places with a padlock
Key features of the tool trolley:
Contents: 179 tools, in TCS inserts
96830110, TCS 13217 WT 1/4-3/8
1 QuickRelease 1/4" fine-tooth ratchet No. 415QR N: L. 117 mm
10 double hex sockets 1/4”No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
2 QuickRelease extensions 1/4" No. 408QR: L. 55; 150 mm
1 wobble drive extension 1/4" No. 405W/2: L.54 mm
1 QuickRelease universal joint 1/4" No. 407QR: L. 45 mm
1 enlarger No. 409: 1/4" inside to 3/8" outside
1 bit holder No. 412: 1/4"
1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L.193 mm
4 double hex sockets 3/8" No. 46a: 5/8; 11/16; 3/4; 7/8"
8 double hex sockets 3/8” No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1"
2 QuickRelease extensions 3/8" No. 426QR: L. 75; 240 mm
1 wobble drive extension 3/8" No. 427W/3: L. 76 mm
1 Quick-Release universal joint 3/8" No. 428QR: L. 60 mm
1 enlargerNo. 432 M: 3/8 to 1/2"
1 reducer No. 431: 3/8 to 1/4"
1 bit fine-tooth ratchet 1/4" No. 415SGB: L. 117 mm
1 bit screwdriver with 1/4" ratchet No. 4008-1: Blades L. 127 mm
1 bit holderNo. 443: 3/8"
1 bit set No. 1208: 1 1/4" quick release chuck | L. 25 mm: SL4,5;6,5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | Adaptor 1/4" 4KT/6KT | 30-piece
1 drive handle 1/4" No. 400: L. 150 mm
96830111, TCS 13217 WT HAMMERS
4 pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm
1 engineer’s hammer No. 10961: 500 g
1 soft-faced hammer No. 10959N: D.30 mm
1 steel ruler No. 13110: L. 300 mm
1 combination wrench No. 13 A: 1.1/8"
1 scriber No. 12321: L. 250 mm
1 pin magnet lifter No. 12601 : L. 145 mm, D.6 mm, pulling force 500 g
1 LED torch No. 13128: 320 lm
1 measuring tape No. 12935/3: L. 3 m
1 calliper No. 12900N: L. 150 mm
96830112, TCS 13217 WT PLIERS
1 telescopic mirror No. 12921M: L. 178-921 mm
1 FastGRIP pipe wrench No. 6572: L. 240 mm
1 wire twisting pliersNo. 6575: L. 230 mm
1 gripping pliers No. 6564: L. 175 mm
1 electronic wire cutter No.67076000: L. 115 mm
1 combination pliers No. 67003160: L. 160 mm
1 telephone pliersNo. 67313200: L. 200 mm
1 connector pliersNo. 65765231: L. 230 mm
96830113, TCS 13217 WT VARIOUS
1 QuickRelease crank No. 453QR: L. 408 mm
6 flex sockets 1/4" No. 402 A: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"
10 double hex sockets 1/4", long No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
1 spanner, adjustable No. 4025 6:SW max. 24 mm
1 tyre tread caliperNo. 12900/3
1 precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm
1 claw gripperNo. 12922: Size 6
1 brass mandrel No. 12495
1 safety knife (cutter) No. 12965N:L. 174mm
96830114, TCS 13217 WT SCHL.13
3 double open-end spanner ELECTRIC No. 12a: 5/32, 7/32; 1/4"
17 combination spannersNo. 13a: 3/16; 13/64: 7/32; 15/64: 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32"
1 hacksaw No. 12053: L. 252 mm1 cable stripper No. 12320: blade length 90 mm
96830115, TCS 13217 WT SCREWDR.
2 DRALL+ slotted screwdrivers with impact cap No. 4622SK: 0.8 x 4.0 x 90; 1.2 x 6.5 x 125 mm
3 PHILLIPS® screwdrivers with impact cap DRALL+ No. 4632SK: PH1; PH2; PH3
1 slotted screwdriver No. 4724: 5.5 x 25 mm
1 PHILLIPS® screwdriver No. 4734: PH2 L. 25 mm
1 ball-ended hex key set No. 10767a/13: 5/64; 3/32; 1/8; 5/32; 3/16; 7/32; 1/4; 5/16"
4 plastic scrapers No. 10678, medium blade,No. 10679, narrow blade,No. 10680, angled blade,Nr. 10681, pointed blade
1 pin extractorNo. 13009: L. 265 mm
1 hook toolNo. 13001: 45° angled L. 155 mm
1 round awlNo. 10758-2K: L. 175 mm
96830116, TCS 13217 WT SCHL.13-1
5 combination spannersNo. 13a: 13/16; 7/8; 15/16; 1; 1.1/16"
1 key file setNo. 128000: 6-piece set
6 angled combination ratcheting spannersNo. 17a: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"
Produkt-Highlights
Optimal transport.
The supplied STAHLWILLE tool trolley 13217 is the professional companion for aircraft maintenance and enables optimal transport of the tool sets. Made of durable polypropylene, it is resistant to Skydrol, acetone, petrol and hydraulic oils. With removable drawers, telescopic handles and a padlock, this trolley is equipped for any situation and protects the tool from unauthorized access.
Organisation and overview.
The modular tool insert system creates order and overview. The high-quality and durable foam inserts are chemically resistant and have precise cut-outs for each individual tool. The striking yellow underside of the TCS insert serves as a signal surface. This enables the completeness of the set to be checked quickly and reliably.
Safe and gentle.
Our QuickRelease tool is specifically adapted to the requirements of the aviation industry. The recessed release button in all extensions and universal joints ensures a secure hold and gentle screwing process on sensitive materials, even in the engine areas.
Special tools for aviation.
The set contains high-quality, common HPQ® tools that have been expertly assembled specifically for aviation maintenance. They are FOD safe and offer the tightest manufacturing tolerances, high force transmission and enormous resistance. Equipped with the patented QuickRelease locking system, the tool set sets new standards in terms of quality and reliability.
