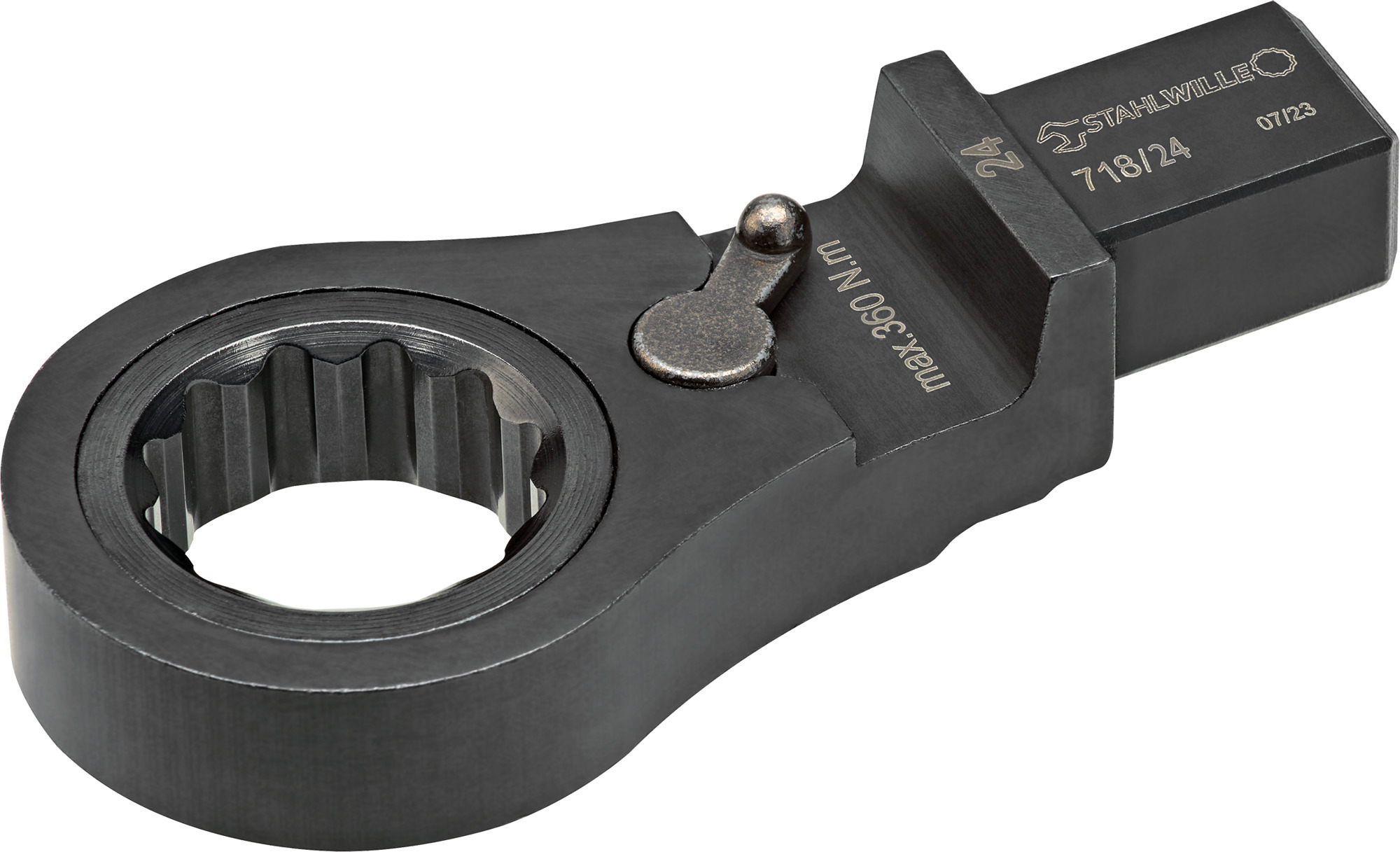

Ring ratchet insert adapter
Ring ratchet insert adapter
718
- Robust insert tool for torque wrench with 14 x 18 mm insert system.
- The integrated ratchet with 72 teeth makes it possible to ratchet at an angle of just 5°.
- The flush-mounted changeover lever for clockwise and counterclockwise rotation prevents unintentional switching.
- The flat design makes it easier to work in tight spaces.
- Made of HPQ® wear-resistant high-performance steel with a black gunmetal finish for durability and corrosion protection.
Produkt-Varianten

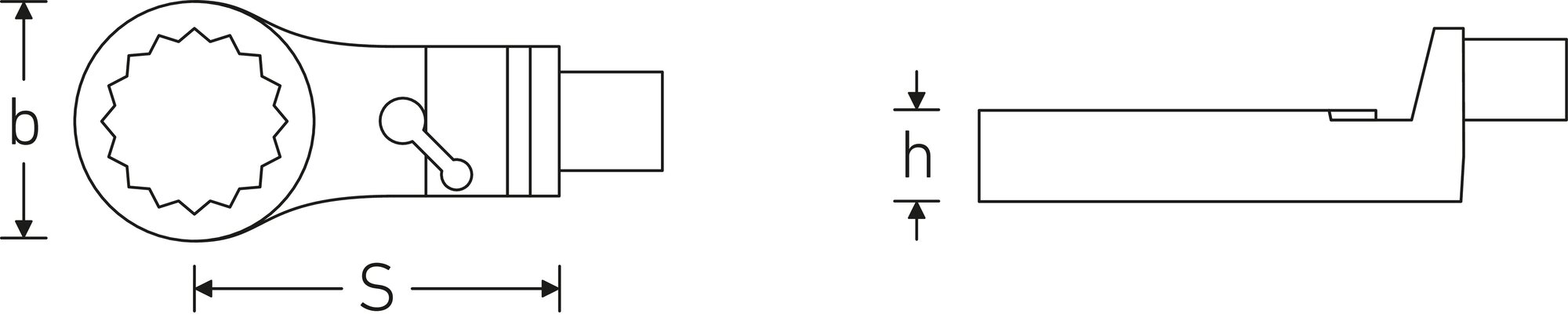

| Product no. | Model | Size [mm] | Width mm (b) | Height mm (h) | Number of teeth | Working angle | Tool holder size [internal square] | max. torque | S | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 58170217 | 718 | 17 mm | 32,5 mm | 10,6 mm | 72 | 5 ° | 14 x 18 mm | 200 N·m | 52 mm | 166 g | |
| 58170219 | 718 | 19 mm | 35,5 mm | 11,5 mm | 72 | 5 ° | 14 x 18 mm | 200 N·m | 52 mm | 182 g | Jetzt entdecken |
| 58170221 | 718 | 21 mm | 42 mm | 13,8 mm | 72 | 5 ° | 14 x 18 mm | 330 N·m | 52 mm | 222 g | Jetzt entdecken |
| 58170222 | 718 | 22 mm | 42 mm | 13,8 mm | 72 | 5 ° | 14 x 18 mm | 360 N·m | 52 mm | 216 g | Jetzt entdecken |
| 58170224 | 718 | 24 mm | 47 mm | 14,6 mm | 72 | 5 ° | 14 x 18 mm | 360 N·m | 52 mm | 252 g | Jetzt entdecken |
| 58170227 | 718 | 27 mm | 52 mm | 15,6 mm | 72 | 5 ° | 14 x 18 mm | 360 N·m | 55 mm | 296 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
High Performance Quality (HPQ®)
Eigenschaften
- bi-hex
- for torque wrenches with interchangeable insert system
- controlled clockwise and counter-clockwise tightening by switching ratchet direction
- HPQ® high-performance steel, black gunmetal finish
Produkt-Highlights
Fine-tooth ring ratchet.
The high level of accuracy is achieved by flat transducers and a special technology for immediate data processing directly in the transducer. Thanks to an integrated measurement amplifier, the testing device is resistant to bending moments and transverse forces.
For confined spaces.
This ring ratchet insert adapter enables precise work with a working angle of just 5°. Thanks to its slim design, it is particularly well-suited for use in tight and hard-to-reach areas where larger movements are not possible.
Safe switching.
The high level of accuracy is achieved by flat transducers and a special technology for immediate data processing directly in the transducer. Thanks to an integrated measurement amplifier, the testing device is resistant to bending moments and transverse forces.
Safe and durable.
The high level of accuracy is achieved by flat transducers and a special technology for immediate data processing directly in the transducer. Thanks to an integrated measurement amplifier, the testing device is resistant to bending moments and transverse forces.
