Double-ended ring wrench set
Double-ended ring wrench set
TCS StahlwilleSTABIL® 20/10 6x7-30x32
Artikel-Nr. 96830166|EAN 4018754152094
- High quality double-ended ring wrench, low-crank, in metric sizes.
- A special manufacturing process makes thin-walled rings possible - primarily for slightly lower-lying screw connections.
- The AS-Drive profile prevents damage to the fastener caused by force being applied to the edges of the nut or bolt.
- The distinctive STAHLWILLE rounded finish ensures the combination wrench is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands.
- In the modular Tool Control System (TCS) tool inlays - an intelligent storage solution for tool and workshop trolleys.
Produktvideo
Produkt-Varianten
| Art.-Nr. | Model | Inhalt | Länge mm (L) | Breite mm (b) | Höhe mm (h) | Anzahl Werkzeuge | Schubladeneinteilung | Gewicht (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 96830166 | TCS StahlwilleSTABIL® 20/10 6x7-30x32 | 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22; 24 x 27; 30 x 32 mm | 350 mm | 350 mm | 45 mm | 10 | 2/3 | 2500 g |
Technologien und Leistungsmerkmale
Double-T profile
Our ring, open-ended and combination wrenches have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Thin-walled rings
The thin-walled diameter of our rings makes it easier to work in confined spaces. The ring wall is deeper than standard nuts, which prevents jamming.
Eigenschaften
- metric, differing end sizes
- deeply cranked, support angle 75°
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
- safely integrated in the modular Tool Control System (TCS)

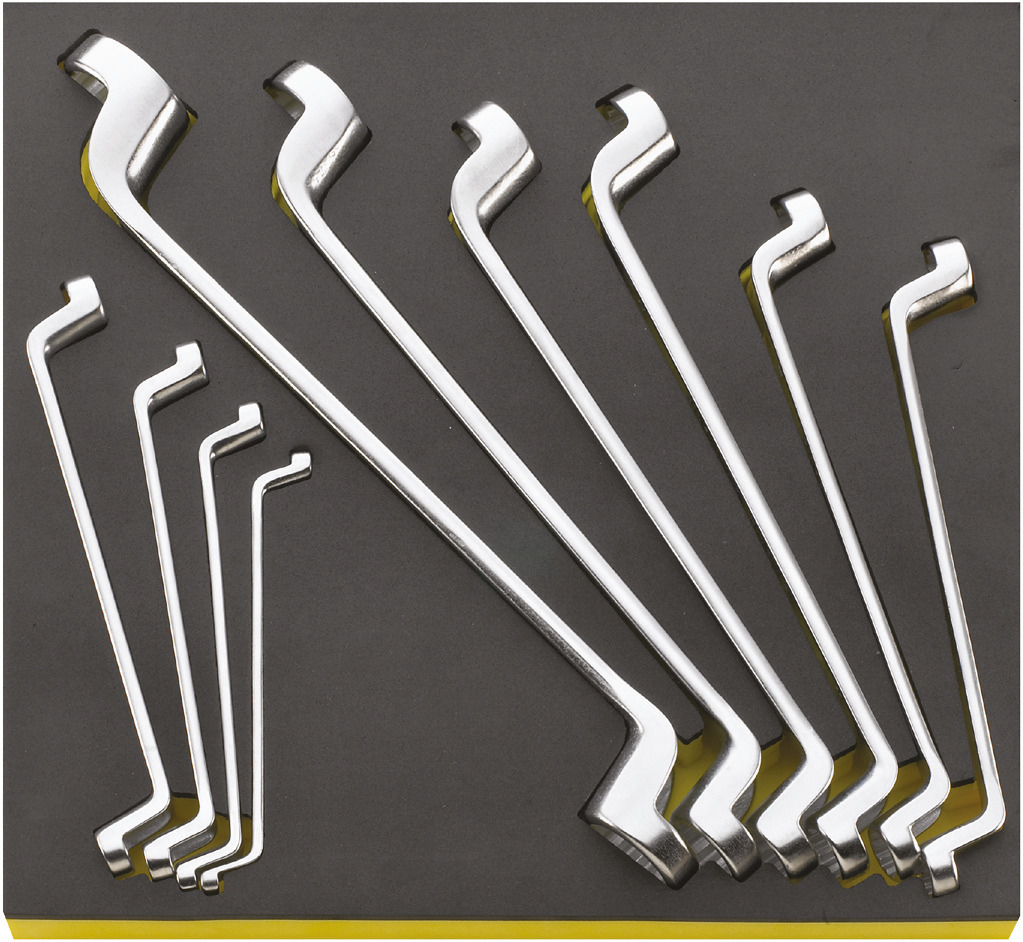

Contains 10-pieces:
10 double-ended ring wrenches No. 20: 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22; 24 x 27; 30 x 32 mm
Produkt-Highlights
Order and check.
The set is securely organized in a STAHLWILLE TCS foam inlays. These durable inlays are chemical-resistant and have precise recesses for each tool. The eye-catching yellow underside of the TCS inlays serves as a signal surface to enable quick checking of the set's completeness.
