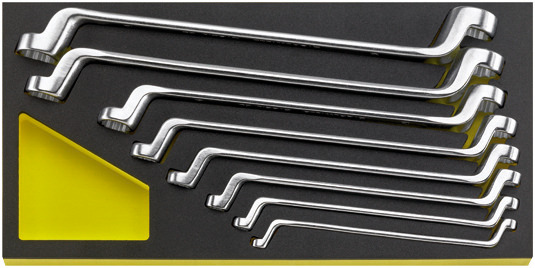

Double ended ring wrenches 8 pcs. in TCS inlay
Double ended ring wrenches 8 pcs. in TCS inlay
TCS StahlwilleSTABIL® 20/8 6x7-19x22MF
Artikel-Nr. 96830356|EAN 4018754175277
- High quality double-ended ring wrench, low-crank, in metric sizes.
- A special manufacturing process makes thin-walled rings possible - primarily for slightly lower-lying screw connections.
- The AS-Drive profile prevents damage to the fastener caused by force being applied to the edges of the nut or bolt.
- The distinctive STAHLWILLE rounded finish ensures the combination wrench is comfortable to hold and is easy to grip, ensuring safe working, even with oily hands.
- In the modular Tool Control System (TCS) tool inlays - an intelligent storage solution for tool and workshop trolleys.
Produktvideo
Produkt-Varianten
| Product no. | Model | Contents | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Drawer dividers | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 96830356 | TCS StahlwilleSTABIL® 20/8 6x7-19x22MF | 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22 mm | 350 mm | 175 mm | 45 mm | 8 | 1/3 | 1323 g |
Technologien und Leistungsmerkmale
Tool Control System
The intelligent modular inlay system protects and organizes the tools in tool boxes, tool trolleys and workbenches. Two-color foam inlays make checking the completeness of the tools quick and easy.
Double-T profile
Our ring, open-ended and combination wrenches have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Thin-walled rings
The thin-walled diameter of our rings makes it easier to work in confined spaces. The ring wall is deeper than standard nuts, which prevents jamming.
Eigenschaften
- metric, differing end sizes
- deeply cranked, support angle 75°
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
- safely integrated in the modular Tool Control System (TCS)
Contains 8-pieces:
8 double-ended ring wrenches No. 20: 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22 mm
Produkt-Highlights
Order and check.
The set is securely organized in a STAHLWILLE TCS foam inlays. These durable inlays are chemical-resistant and have precise recesses for each tool. The eye-catching yellow underside of the TCS inlays serves as a signal surface to enable quick checking of the set's completeness.
