Double ring wrench set
Double ring wrench set
TCS StahlwilleSTABIL 20/8 6x7-19x22
Artikel-Nr. 96838192|EAN 4018754138647
- With the Tool Control System, the tools fit into chemical-resistant safety foam inserts with high-precision, 3-D cutouts
- Besonderes Fertigungsverfahren ermöglicht dünnwandige Ringe - vorwiegend für etwas tiefer liegende Schraubverbindungen.
- Das AS-Drive-Profil verhindert Kantenbeschädigung durch Kraftansatz auf die Flanken der Schraube bzw. Mutter.
- The distinctive STAHLWILLE rounded finish gives the spanner a non-slip and pleasant feel for safe working, even with oil-smeared hands.
- In the modular Tool Control System (TCS) tool inserts – an intelligent storage solution for tool and workshop trolleys.
Produktvideo
Produkt-Varianten
| Product no. | Length mm (L) | Width mm (b) | Height mm (h) | Number of tools | Drawer dividers | Weight | Capacy | |
|---|---|---|---|---|---|---|---|---|
| 96838192 | 350 mm | 175 mm | 45 mm | 8 | 1/3 | 1338 g | 6 x 7; 8 x 9; 10 x 11; 12 x 13; 14 x 15; 16 x 17; 18 x 21; 19 x 22 mm |
Technologien und Leistungsmerkmale
Tool Control System
The intelligent modular insert system protects and organizes the tools in tool boxes, workshop trolleys and workshop benches. Two-color foam inlays make checking the completeness of the tools quick and easy.
Double-T profile
Our combination and ring wrenches have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.
Thin-walled rings
The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.
Eigenschaften
- 175 x 350 x 45 mm
- 8-piece set
Produkt-Highlights
Order and check.

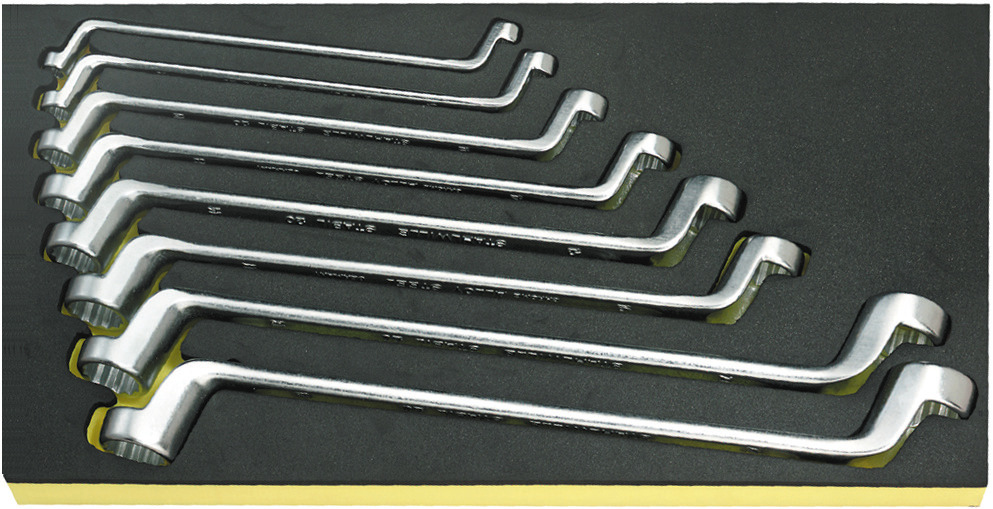

The set is securely organized in a STAHLWILLE TCS foam inserts. These durable inlays are chemical-resistant and have precise recesses for each tool. The eye-catching yellow underside of the TCS inserts serves as a signal surface to enable quick checking of the set's completeness.
