Combination spanners

Products/Spanners and screwdrivers/Spanners/Combination spanners

Combination spanners

OPEN BOX 14

Produktvarianten

Artikel-Nr. 40100606|EAN 4018754019144

Online Kaufen

Händlersuche

Produkt-Varianten

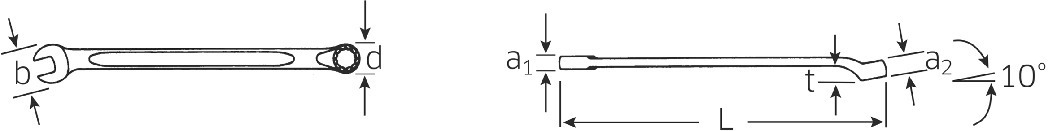

Art. no.	Model	Spanner width 1 [mm]	Spanner width 2 [mm]	Length mm (L)	Width mm (b)	a1	a2	d	t	Weight	Maß-Skizze
40100606	OPEN BOX 14	6 mm	6 mm	125 mm	14 mm	4,5 mm	6 mm	9,5 mm	7 mm	18 g
40100707	OPEN BOX 14	7 mm	7 mm	135 mm	16 mm	5 mm	7 mm	10,8 mm	8 mm	25 g	Jetzt entdecken
40100808	OPEN BOX 14	8 mm	8 mm	145 mm	17,5 mm	5 mm	7 mm	12,1 mm	8 mm	28 g	Jetzt entdecken
40100909	OPEN BOX 14	9 mm	9 mm	155 mm	19 mm	5,5 mm	8 mm	13,3 mm	9 mm	34 g	Jetzt entdecken
40101010	OPEN BOX 14	10 mm	10 mm	165 mm	21 mm	5,5 mm	8 mm	14,6 mm	9 mm	43 g	Jetzt entdecken
40101111	OPEN BOX 14	11 mm	11 mm	180 mm	23,5 mm	6 mm	9 mm	15,9 mm	10 mm	55 g	Jetzt entdecken
40101212	OPEN BOX 14	12 mm	12 mm	180 mm	25,5 mm	6 mm	9 mm	17,3 mm	10 mm	61 g	Jetzt entdecken
40101313	OPEN BOX 14	13 mm	13 mm	195 mm	27,5 mm	6,5 mm	10 mm	18,6 mm	11 mm	85 g	Jetzt entdecken
40101414	OPEN BOX 14	14 mm	14 mm	210 mm	29,5 mm	6,5 mm	10 mm	20,1 mm	11 mm	88 g	Jetzt entdecken
40101515	OPEN BOX 14	15 mm	15 mm	215 mm	31 mm	7 mm	11 mm	21,4 mm	13 mm	109 g	Jetzt entdecken
40101616	OPEN BOX 14	16 mm	16 mm	230 mm	33 mm	7 mm	11 mm	22,7 mm	14 mm	108 g	Jetzt entdecken
40101717	OPEN BOX 14	17 mm	17 mm	240 mm	35 mm	7,5 mm	12 mm	24,1 mm	15 mm	155 g	Jetzt entdecken
40101818	OPEN BOX 14	18 mm	18 mm	255 mm	37 mm	7,5 mm	12 mm	25,5 mm	16 mm	151 g	Jetzt entdecken
40101919	OPEN BOX 14	19 mm	19 mm	265 mm	39,5 mm	8 mm	13 mm	27 mm	18 mm	190 g	Jetzt entdecken
40102020	OPEN BOX 14	20 mm	20 mm	280 mm	41,5 mm	8 mm	13 mm	28,5 mm	19 mm	219 g	Jetzt entdecken
40102121	OPEN BOX 14	21 mm	21 mm	280 mm	43 mm	8,5 mm	13 mm	29,8 mm	19 mm	244 g	Jetzt entdecken
40102222	OPEN BOX 14	22 mm	22 mm	300 mm	45 mm	8,5 mm	14 mm	31,3 mm	20 mm	268 g	Jetzt entdecken
40102424	OPEN BOX 14	24 mm	24 mm	330 mm	50 mm	9,5 mm	14 mm	34,3 mm	22 mm	363 g	Jetzt entdecken
40102727	OPEN BOX 14	27 mm	27 mm	385 mm	56 mm	10,5 mm	16 mm	38,6 mm	24 mm	502 g	Jetzt entdecken
40103030	OPEN BOX 14	30 mm	30 mm	415 mm	63 mm	12 mm	18 mm	42,6 mm	26 mm	645 g	Jetzt entdecken
40103232	OPEN BOX 14	32 mm	32 mm	430 mm	67 mm	12 mm	18 mm	45,2 mm	27 mm	666 g	Jetzt entdecken
40103434	OPEN BOX 14	34 mm	34 mm	460 mm	72 mm	13 mm	18 mm	48 mm	27 mm	900 g	Jetzt entdecken
40103636	OPEN BOX 14	36 mm	36 mm	480 mm	74 mm	13 mm	19 mm	50,8 mm	28 mm	951 g	Jetzt entdecken
40104141	OPEN BOX 14	41 mm	41 mm	560 mm	84 mm	14 mm	20 mm	57,8 mm	32 mm	1322 g	Jetzt entdecken

Technologien und Leistungsmerkmale

Anti-Slip-Drive

The special AS-Drive profile makes high force transmission to the flats of screws and bolts possible without damaging them. This also prevents stripping of the screw head.

Double-T profile

Our combination and ring spanners have an additional recess in the middle of the tool. Similar to the principle of a double-T beam, this provides a tremendous load capacity and maximum strength whilst reducing weight.

Thin-walled rings

The thin wall diameter of our rings makes it easier to work in confined spaces. The ring sides are taller than standard nuts, which prevents jamming.

Offset Shaft Design

Our spanners are specially designed with additional reinforcement in the load zones where the greatest amount of force is transmitted - namely where the jaw meets the shank - in order to prevent deformation.

Eigenschaften

metric, identical end sizes
extra-long version for hard-to-reach bolted joints and greater force transmission
jaw angled 15°
ring with bi-hex and AS-Drive profile
ring-end cranked 10°
reinforcement between jaw and shaft
durable, slim and lightweight design
high flexural strength due to double-T profile
STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
drop-forged, hardened, and cooled in an oil bath
Chrome Alloy Steel, chrome-plated
DIN 3113 Form B / ISO 7738 Form B

Produkt-Highlights

Optimum power transmission.

Every spanner guarantees consistently excellent quality due to minimal manufacturing tolerances and highly reproducible precision. The jaws and ring always sit firmly on the screw, thus ensuring optimal power transmission.

Non-slip surface

STAHLWILLE spanners have a high-quality surface finish with good grip, making it possible to work safely and efficiently, even with greasy hands. The non-slip property improves control during handling.

A solution for every situation.

Our combination spanners are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool pouches or TCS inlays.

Excellent workmanship.

The spanner is made from high-quality forged Chrome Alloy Steel, making it extremely robust and durable, even during continuous use. It also has a corrosion-resistant chrome-plated finish.

Downloads

Produktdatenblatt: STAHLWILLE_40100606_OPEN BOX 14 6_en.pdf

PDF | 0.16 MB

Konformitaetserklaerung: REACH_KE_01-Schluessel.pdf

PDF | 0.12 MB
