Double ended ring spanners
Double ended ring spanners
21
Artikel-Nr. 41050607|EAN 4018754021222
- Straight
- Besonderes Fertigungsverfahren ermöglicht dünnwandige Ringe – vorwiegend für etwas tiefer liegende Schraubverbindungen.
- Das AS-Drive®-Profil verhindert Kantenbeschädigung durch Kraftansatz auf die Flanken der Schraube bzw. Mutter.
- Das Doppel-T-Profil gewährt dem Schlüssel eine hohe Biegefestigkeit.
- STAHLWILLE: For over 160 years, we as a traditional German company from Wuppertal have stood for tools that are appreciated around the world for their excellent quality
Produkt-Varianten

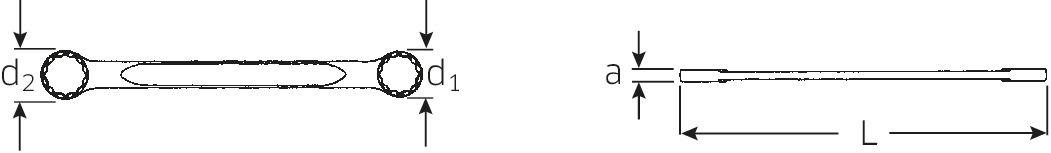

| Code | Size 1 [mm] | Size 2 [mm] | Length mm (L) | Output profile | Weight | |
|---|---|---|---|---|---|---|
| 41050607 | 6 mm | 7 mm | 100 mm | Double hexagon AS-drive | 14 g | |
| 41050809 | 8 mm | 9 mm | 115 mm | Double hexagon AS-drive | 19 g | Jetzt entdecken |
| 41050810 | 8 mm | 10 mm | 115 mm | Double hexagon AS-drive | 18 g | Jetzt entdecken |
| 41051011 | 10 mm | 11 mm | 150 mm | Double hexagon AS-drive | 30 g | Jetzt entdecken |
| 41051213 | 12 mm | 13 mm | 170 mm | Double hexagon AS-drive | 42 g | Jetzt entdecken |
| 41051317 | 13 mm | 17 mm | 165 mm | Double hexagon AS-drive | 57 g | Jetzt entdecken |
| 41051415 | 14 mm | 15 mm | 170 mm | Double hexagon AS-drive | 55 g | Jetzt entdecken |
| 41051617 | 16 mm | 17 mm | 185 mm | Double hexagon AS-drive | 68 g | Jetzt entdecken |
| 41051719 | 17 mm | 19 mm | 185 mm | Double hexagon AS-drive | 78 g | Jetzt entdecken |
| 41051819 | 18 mm | 19 mm | 210 mm | Double hexagon AS-drive | 84 g | Jetzt entdecken |
| 41051821 | 18 mm | 21 mm | 210 mm | Double hexagon AS-drive | 107 g | Jetzt entdecken |
| 41051922 | 19 mm | 22 mm | 210 mm | Double hexagon AS-drive | 109 g | Jetzt entdecken |
| 41052022 | 20 mm | 22 mm | 210 mm | Double hexagon AS-drive | 109 g | Jetzt entdecken |
| 41052124 | 21 mm | 24 mm | 235 mm | Double hexagon AS-drive | 128 g | Jetzt entdecken |
| 41052427 | 24 mm | 27 mm | 290 mm | Double hexagon AS-drive | 225 g | Jetzt entdecken |
| 41052732 | 27 mm | 32 mm | 320 mm | Double hexagon AS-drive | 283 g | Jetzt entdecken |
| 41053032 | 30 mm | 32 mm | 325 mm | Double hexagon AS-drive | 289 g | Jetzt entdecken |
| 41053034 | 30 mm | 34 mm | 325 mm | Double hexagon AS-drive | 307 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Anti-Slip-Drive
The AS-Drive® profile enables highforce transmission without damaging the fasteners. While the force acts on the flats of the screws, the corners are left free and are not rounded off.
High Performance Quality (HPQ®)
High-performance steel, extremely resilient, yet thin-walled and ideal for working in confined spaces.
Double T-profile.
The double T-profile used for the STAHLWILLE open-jaw and ring spanners saves material where it is not needed and guarantees two things at once: peak dimensional stability and extremely low weight, whichever spanner size you pick up.
As a result, tool-kits from STAHLWILLE weigh considerably less. But that is not all: the double T-profile from STAHLWILLE fits snugly in the hand, allows fatiguefree working and can be gripped comfortably and safely. This also increases user safety.
Eigenschaften
- straight
- DIN 837/ISO 10103
- Chrome Alloy Steel, chrome plated
StahlwilleSTABIL®
Produkt-Highlights
More Choice.
As one of only a few manufacturers, STAHLWILLE offers a comprehensively diverse range of metric, imperial, spline drive and TORX® spanners.
Slimmer.
Extremely thin-walled rings facilitate work in confined spaces. In addition, the rings are higher than standard nuts – which prevents the spanner seizing on the nut.
More Accurate.
Our very tight manufacturing tolerances and reproducible dimensional accuracy ensure that one STAHLWILLE spanner is as close-fitting as the next. In this way, both open-jaw and ring spanners will always firmly hug the fastener head – for excellent power-lock.
