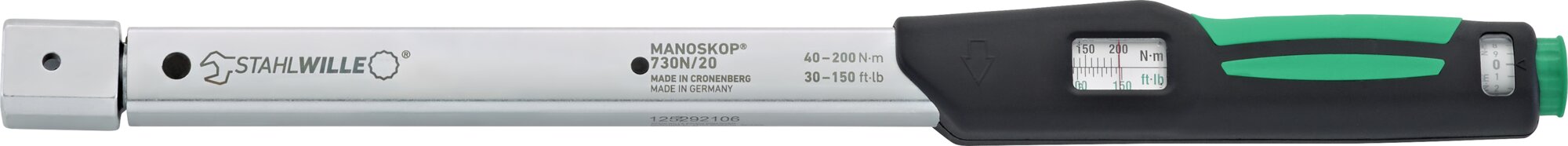

Torque wrench service MANOSKOP® with holder for insert tools
Torque wrench service MANOSKOP® with holder for insert tools
730Na
Artikel-Nr. 50581020|EAN 4018754139590
Produkt-Varianten
| Product no. | Size | Measuring range ft·lb | Measuring range in·lb | Length mm (L) | Width mm (b) | Height mm (h) | Fine scale division | Size square socket [inside square drive] | LF | SF | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50581005 | a/5 | 7-37 ft·lb | 90-450 in·lb | 330 mm | 28 mm | 23 mm | 2,5 in·lb | 9 x 12 mm | 280,5 mm | 17,5 mm | 831 g | Jetzt entdecken |
| 50581010 | a/10 | 15-75 ft·lb | 180-900 in·lb | 386 mm | 28 mm | 23 mm | 5 in·lb | 9 x 12 mm | 336 mm | 17,5 mm | 988 g | Jetzt entdecken |
| 50581020 | a/20 | 30-150 ft·lb | 350-1800 in·lb | 467 mm | 28 mm | 23 mm | 10 in·lb | 14 x 18 mm | 424,5 mm | 25 mm | 1264 g | |
| 50581040 | a/40 | 60-300 ft·lb | 800-3600 in·lb | 607 mm | 28 mm | 23 mm | 2 ft·lb | 14 x 18 mm | 564,5 mm | 25 mm | 1655 g | Jetzt entdecken |
| 50581102 | a/2 | 3-15 ft·lb | 40-180 in·lb | 275 mm | 28 mm | 23 mm | 2 in·lb | 9 x 12 mm | 226 mm | 17,5 mm | 737 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2 and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the "spring" does not need to be reset to "0" after use.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- mount for interchangeable insert tools
- QuickRelease safety lock
- can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- display deviation value ± 3% (size 2; a/2 4 %)
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Triggering dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
