Torque wrenches Service MANOSKOP® (N·m)
Torque wrenches Service MANOSKOP® (N·m)
730 Quick
Artikel-Nr. 50184004|EAN 4018754292660
- Robuster, wartungsarmer mechanischer Drehmomentschlüssel für den kontrollierten Schraubanzug.
- Das Auslösen erfolgt mit einem deutlichen haptischen und akustischen Klick-Signal.
- Blitzeinstellung des Drehmoments durch den leicht zu betätigende Entriegelungsmechanik am Gehäuse.
- Dank eines langlebigen, verschleißarmes Auslösesystems mit Biegestab ist ein Rücksetzen auf „0“ nicht erforderlich.
- Schnelles Justieren von außen ohne Demontage möglich.
Produkt-Varianten

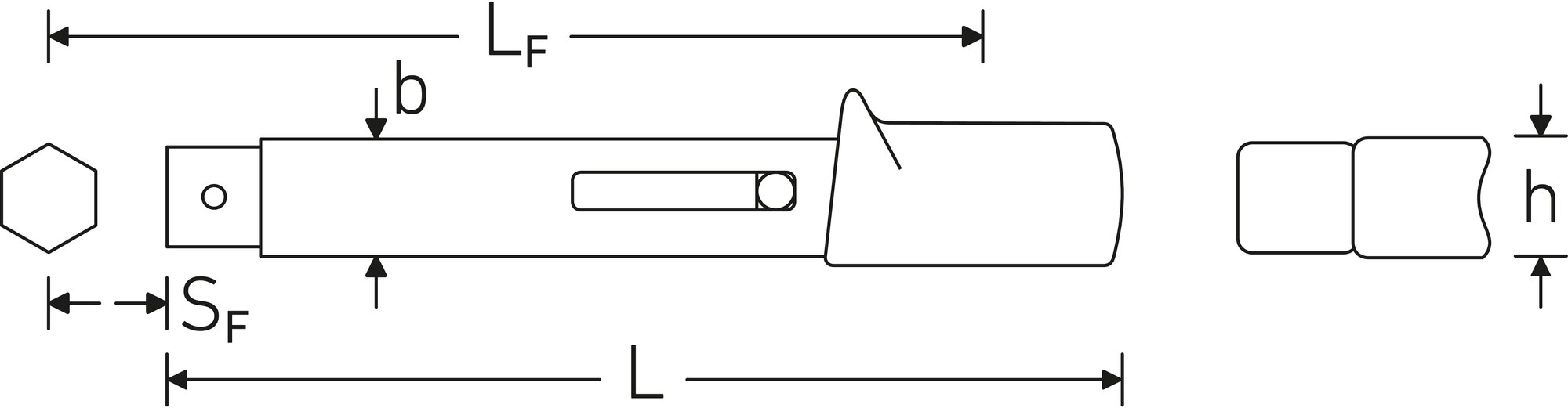

| Product no. | Model | Size | Tool holder size [internal square] | Measuring range N·m | MA N·m | Nominal value N·m | Scale division N·m | Length mm (L) | Width mm (b) | Height mm (h) | LF | SF | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50184001 | 730 Quick | 2-1 | 9 x 12 mm | 2-10 N·m | 2 N·m | 10 N·m | 0,25 N·m | 179 mm | 27,5 mm | 23,6 mm | 157,2 mm | 17,5 mm | 315 g | Jetzt entdecken |
| 50184002 | 730 Quick | 2 | 9 x 12 mm | 4-20 N·m | 4 N·m | 20 N·m | 0,5 N·m | 179 mm | 27,5 mm | 23,6 mm | 157,2 mm | 17,5 mm | 315 g | Jetzt entdecken |
| 50184004 | 730 Quick | 4 | 9 x 12 mm | 8-40 N·m | 8 N·m | 40 N·m | 1 N·m | 223 mm | 27,5 mm | 23,6 mm | 200,8 mm | 17,5 mm | 395 g |
Technologien und Leistungsmerkmale
QuickRelease
The QuickRelease safety lock prevents unintentional loss of sockets and insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
In transducers: The QuickRelease safety lock helps you to quickly mount
and change transducers. The transducers lock into the calibration system and only unlock again at the push of the buttons.
Eigenschaften
- clicking type with dual stop signal
- no reset to "0" required
- the measuring element is only under load when a force is applied.
- mount for interchangeable insert tools
- fine, tapered pointers
- counter-clockwise tightening by turning the insert tool over
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
Produkt-Highlights
Quick Adjustments, Easy
Protected against accidental changes, yet instantly unlocked at the push of a button and ready for setting the target torque: the quick adjust scale of the MANOSKOP® 730 Quick is as safe as it is efficient and precise.
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.

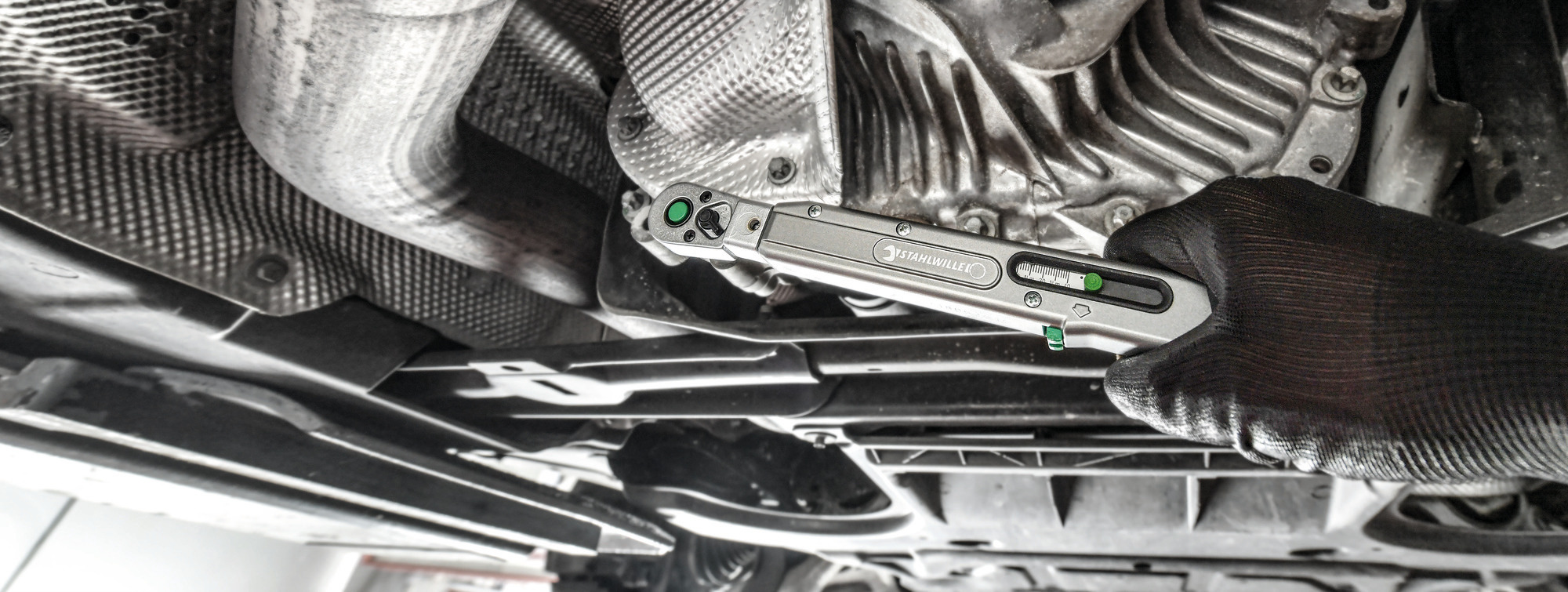

Compact Lightweight
At just 197 mm in size 2 and 223 mm in size 4, the MANOSKOP® 730 Quick fits virtually anywhere, makes working in tight spaces easier, and impresses with its low weight.
