Torque wrenches Service MANOSKOP® (N·m)
Torque wrenches Service MANOSKOP® (N·m)

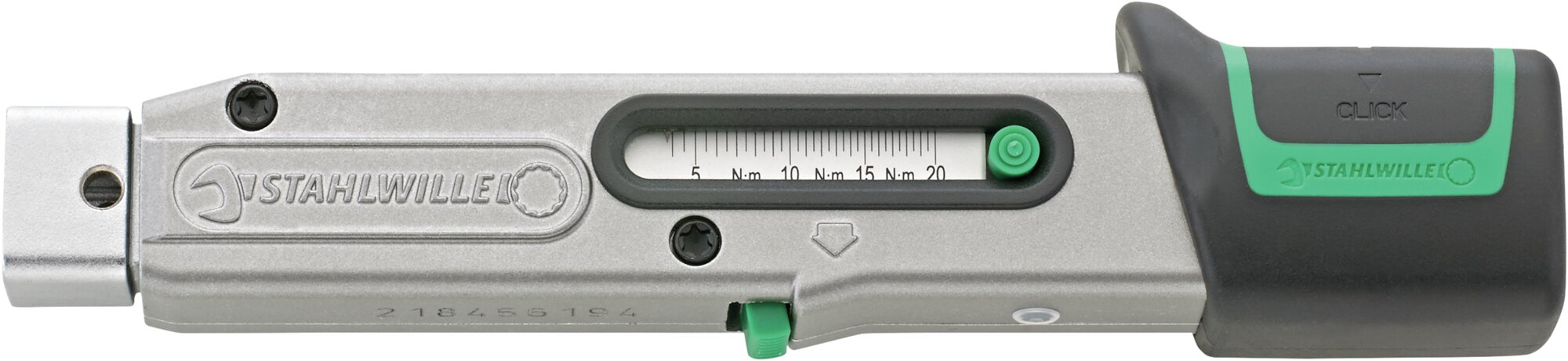

730 Quick
Artikel-Nr. 50184002|EAN 4018754292653
Produktvideo
Produkt-Varianten
| Art. no. | Size | Model | Measuring range N·m | Length mm (L) | Width mm (b) | Height mm (h) | Size square socket [internal square drive] | LF | SF | Weight | Scale division N·m | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50184001 | 2-1 | 730 Quick | 2-10 N·m | 179 mm | 27,5 mm | 23,6 mm | 9 x 12 mm | 157,2 mm | 17,5 mm | 315 g | 0,25 N·m | Jetzt entdecken |
| 50184002 | 2 | 730 Quick | 4-20 N·m | 179 mm | 27,5 mm | 23,6 mm | 9 x 12 mm | 157,2 mm | 17,5 mm | 315 g | 0,5 N·m | |
| 50184004 | 4 | 730 Quick | 8-40 N·m | 223 mm | 27,5 mm | 23,6 mm | 9 x 12 mm | 200,8 mm | 17,5 mm | 395 g | 1 N·m | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to '0' after use.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- tactile with dual stop signal
- no reset to "0" required
- the measuring element is only under load when a force is applied.
- mount for interchangeable insert tools
- with QuickRelease safety lock
- non-slip adjuster with thumb recess for quick torque adjustment
- arrow-shaped pointers
- counter-clockwise tightening by flipping the insert tools over
- triggering mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- calibration with perfectControl® calibration device No. 7794, or calibration system No. 7791 or 7706
- easy adjustment without disassembly via 2 external adjustment screws
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
Produkt-Highlights
Rapid adjustment.
Easy and quick adjustment of the torque is carried out by an easy-to-operate clamping lever in the handle. The scale can be moved quickly and safely with an ergonomically shaped, non-slip adjustment element with thumb recess.
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
