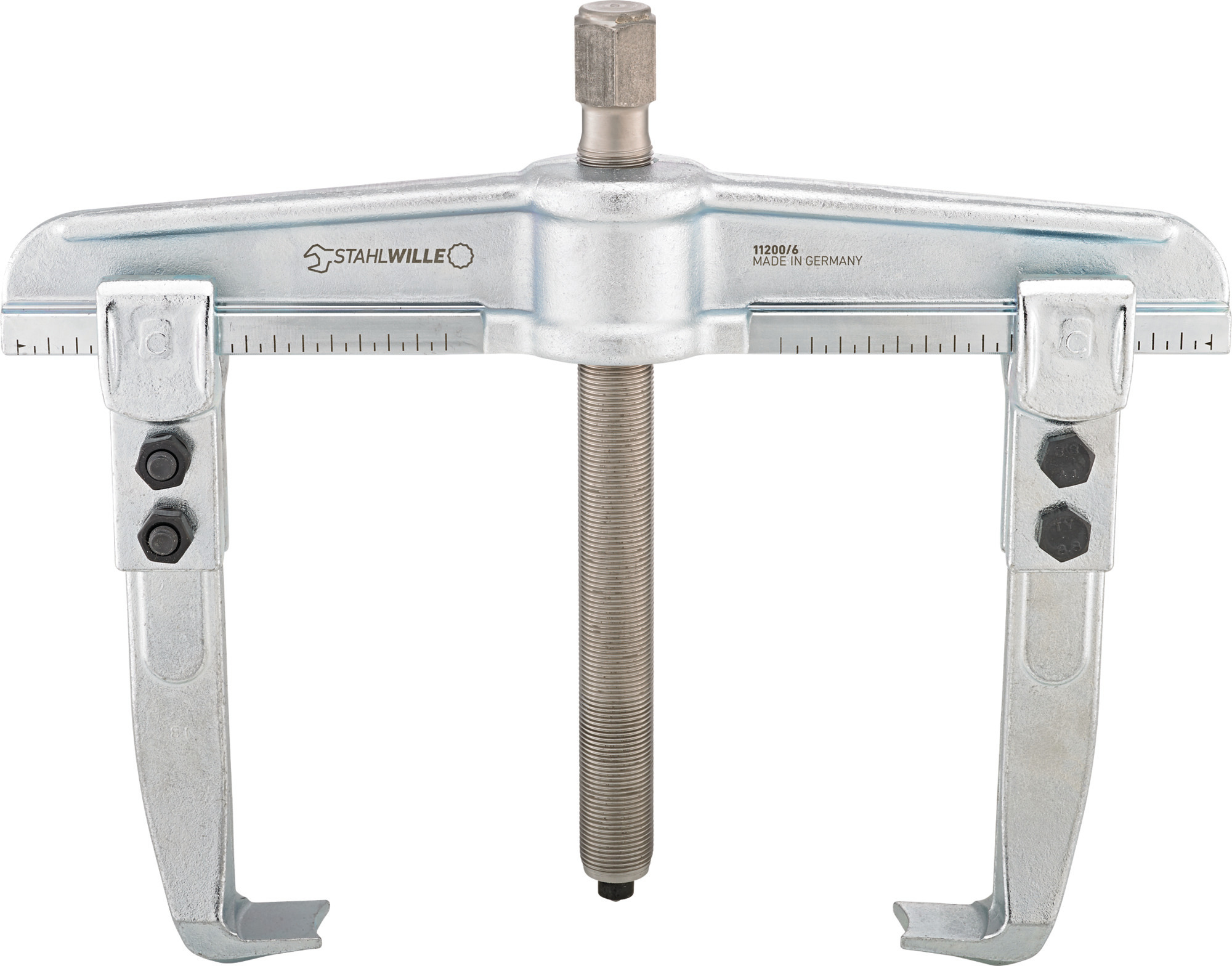

Puller

Puller

11200

Artikel-Nr. 71020006|EAN 4018754341931
  • The adjustable extractor hooks make universal use as an external or internal extractor possible.
  • For quick and safe removal of gears, ball bearings, pulleys and for extracting the outer races of ball bearings and bushings from drilled holes.
  • The adjustment scale on the crosshead enables precise and even adjustment of the pullers.
  • The nitrided surface of the pressure spindle provides excellent sliding properties and does not require additional oiling.
  • The adjustment scale on the crosshead enables precise and even adjustment of the pullers.

Produkt-Varianten

Product no.SizeExternal hex drive (mm)Number of hooksmax. loadClamping depth (h) mmExternal span max. mm (w1)Internal span max. mm (w2)Internal span min. mmSpindle thread sizeHook base width mm (b)Hook base depth mm (c)Thickness of hook base tip mm (a)Weight
71020001117 mm23 t100 mm90 mm140 mm60 mmM14 x 1,5 x 14022 mm12 mm3 mm1014 g
Jetzt entdecken
71020002217 mm23 t100 mm130 mm180 mm70 mmM14 x 1,5 x 14022 mm12 mm3 mm1136 g
Jetzt entdecken
71020003322 mm25 t150 mm160 mm220 mm80 mmG 1/2 x 21030 mm18 mm4 mm2931 g
Jetzt entdecken
71020004422 mm25 t150 mm200 mm260 mm90 mmG 1/2 x 21030 mm18 mm4 mm3322 g
Jetzt entdecken
71020005527 mm27,5 t200 mm250 mm330 mm125 mmG 3/4 x 28036 mm28 mm7 mm6969 g
Jetzt entdecken
71020006627 mm27,5 t200 mm350 mm420 mm125 mmG 3/4 x 28036 mm28 mm7 mm8042 g

Eigenschaften

    • two-armed
    • with sliding, constantly parallel extractor hooks
    • for pulling off gears, ball bearings, pulleys and similar parts from a shaft or axle
    • for pulling ball bearings, ball bearing outer races and sockets out of drilled holes
    • can be used as an external or internal extracting device by switching the hooks
    • nitrided spindle, no oiling required, maintenance-free
    • adjustment scale for uniform adjustment of the extractor hooks
    • sturdy design, galvanised

Produkt-Highlights

Flexible repositioning function.

A three-legged puller is generally preferable to a two-legged one provided there is sufficient space because it distributes the pulling forces more evenly.

Reliable sliding properties.

The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.

Adapted access geometry.

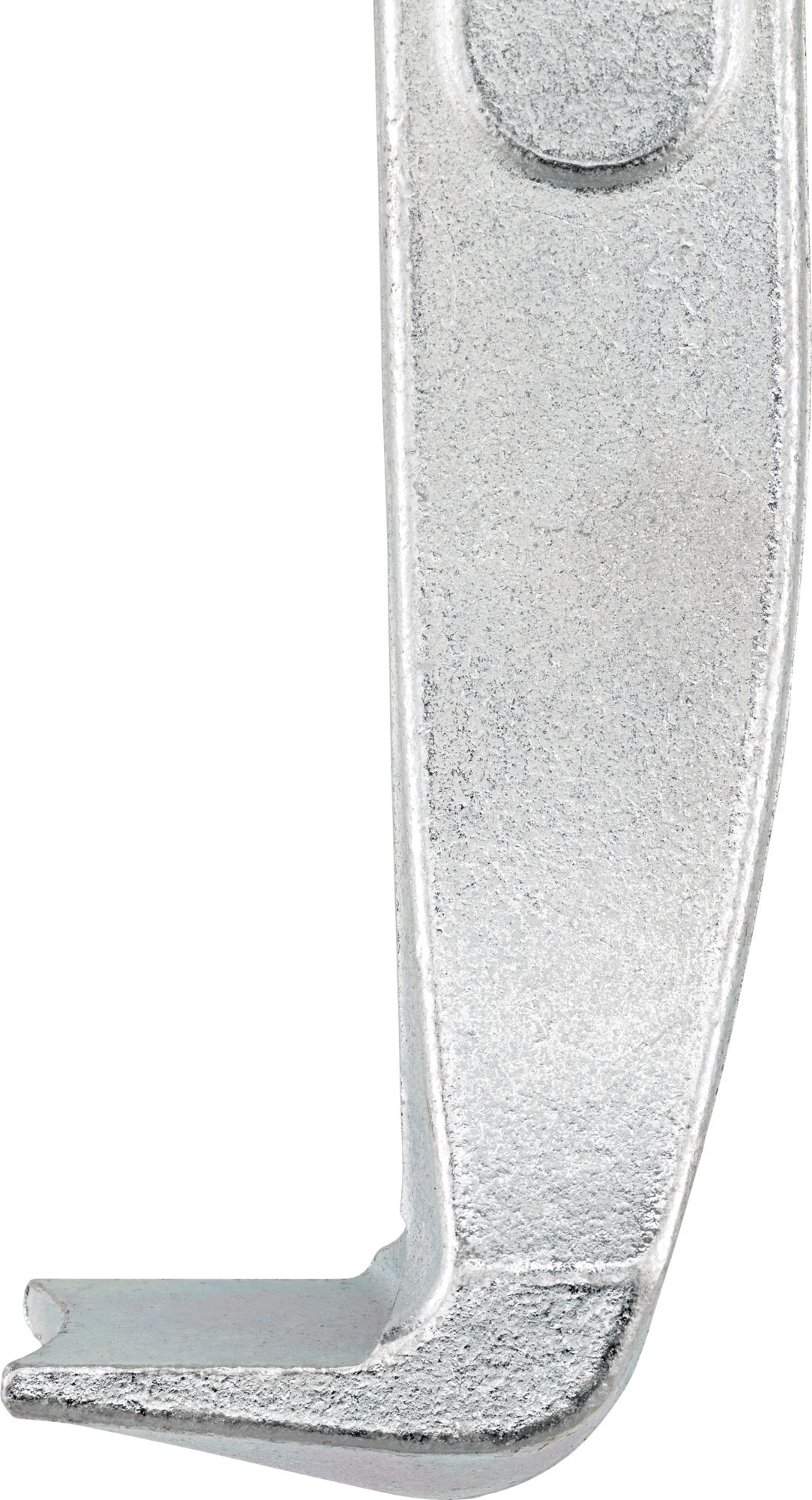

Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.

Sturdy design.

High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways.

Protection against damage.

The centering tip is freely rotating - to protect the shafts from damage.

For increased safety.

Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.

Downloads

Produktdatenblatt: STAHLWILLE_71020006_11200-6 Abzieher, 2armig 350x200mm_en.pdf
PDF | 0.94 MB
