Pullers
Pullers

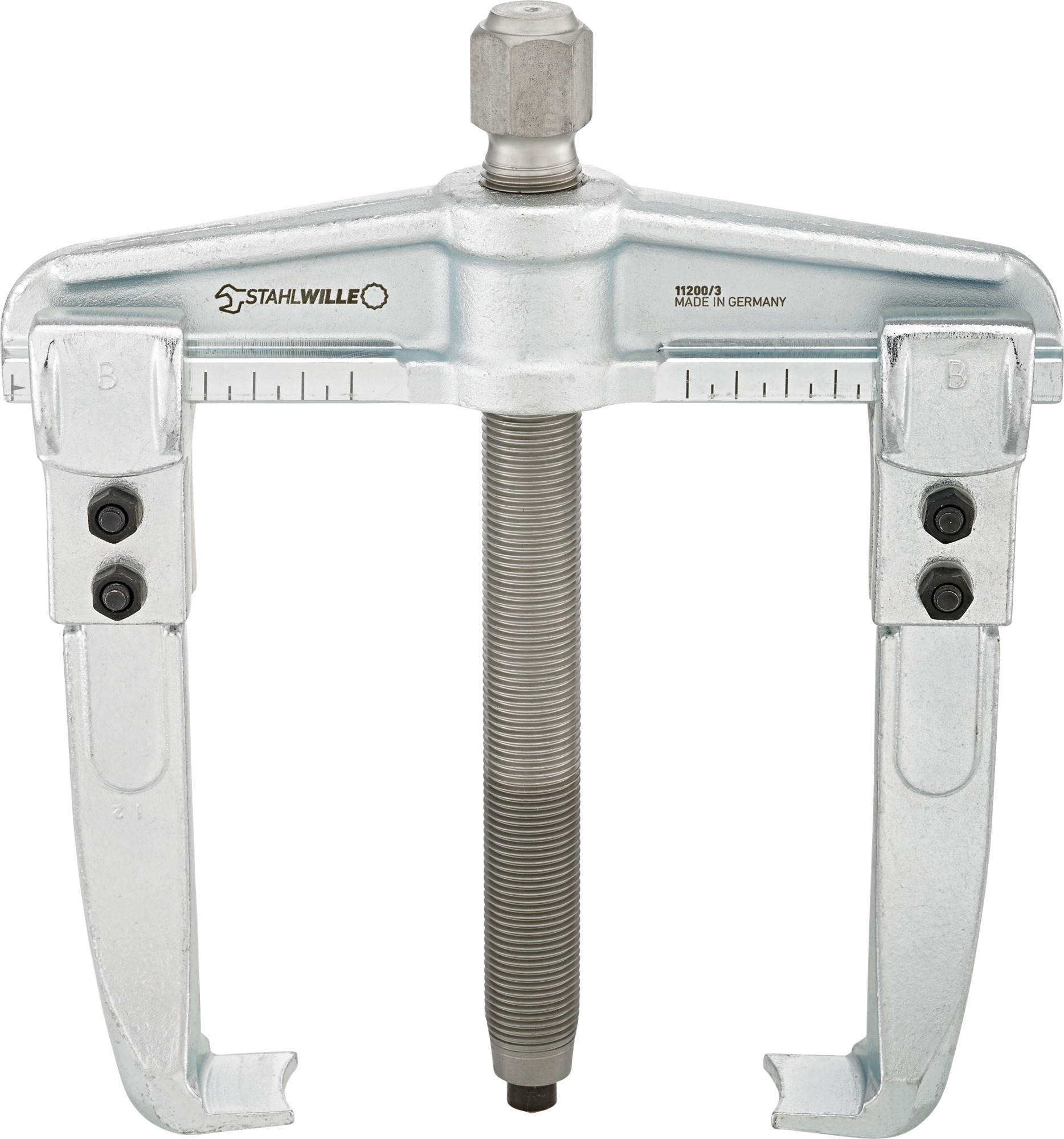

11200
- For quick and reliable removal of gears, ball bearings, fan belts and for extracting the outer rings of ball bearings and bushings from drilled holes.
- The adjustable puller arms make for universal use as both an external or internal puller possible.
- The adjustment scale on the beam makes precise and uniform adjustment of the puller hooks possible.
- Outstanding flexural strength thanks to legs with precisley manufactured profiles and smooth, milled guides.
- The nitrided surface of the spindle allows it to move easily so it does not require additional lubrication.
Produkt-Varianten
| Product no. | Size | Model | External hex drive (mm) | Number of hooks | max. load | Clamping depth (h) mm | Span max. external mm (w1) | Span max. inner mm (w2) | Span min. inner mm | Spindle thread size | Hook base width mm (b) | Hook foot depth mm (c) | Thickness of hook base tip mm (a) | Weight (g) | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71020001 | 1 | 11200 | 17 mm | 2 | 3 t | 100 mm | 90 mm | 140 mm | 60 mm | M14 x 1,5 x 140 | 22 mm | 12 mm | 3 mm | 1014 g | Puller 2armed 90x100mm | Jetzt entdecken |
| 71020002 | 2 | 11200 | 17 mm | 2 | 3 t | 100 mm | 130 mm | 180 mm | 70 mm | M14 x 1,5 x 140 | 22 mm | 12 mm | 3 mm | 1136 g | Puller 2armed 130x100mm | Jetzt entdecken |
| 71020003 | 3 | 11200 | 22 mm | 2 | 5 t | 150 mm | 160 mm | 220 mm | 80 mm | G 1/2 x 210 | 30 mm | 18 mm | 4 mm | 2931 g | Puller 2armed 160x150mm | |
| 71020004 | 4 | 11200 | 22 mm | 2 | 5 t | 150 mm | 200 mm | 260 mm | 90 mm | G 1/2 x 210 | 30 mm | 18 mm | 4 mm | 3322 g | Puller 2armed 200x150mm | Jetzt entdecken |
| 71020005 | 5 | 11200 | 27 mm | 2 | 7,5 t | 200 mm | 250 mm | 330 mm | 125 mm | G 3/4 x 280 | 36 mm | 28 mm | 7 mm | 6969 g | Puller 2armed 250x200mm | Jetzt entdecken |
| 71020006 | 6 | 11200 | 27 mm | 2 | 7,5 t | 200 mm | 350 mm | 420 mm | 125 mm | G 3/4 x 280 | 36 mm | 28 mm | 7 mm | 8042 g | Puller 2armed 350x200mm | Jetzt entdecken |
Eigenschaften
- two-armed
- with sliding, constantly parallel extractor hooks
- for gears, ball bearings, pulleys and similar parts from a shaft or axle
- for ball bearings, ball bearing outer races and sockets out of drilled holes
- reversible arms for use as external and internal pullers
- adjustment scale for uniform adjustment of the extractor hooks
- nitrided spindle, no lubrication required, maintenance-free
- sturdy design, zinc plated
Produkt-Highlights
Flexible repositioning function.
The bearing puller has 2 or 3 sliding extractor hooks that are always parallel. These can be quickly and easily repositioned for flexible use as external and internal pullers.
Reliable sliding properties.
The high-quality tempered and specially coated pressure spindle has particularly good sliding properties in the thread, is maintenance-free and does not require oiling.

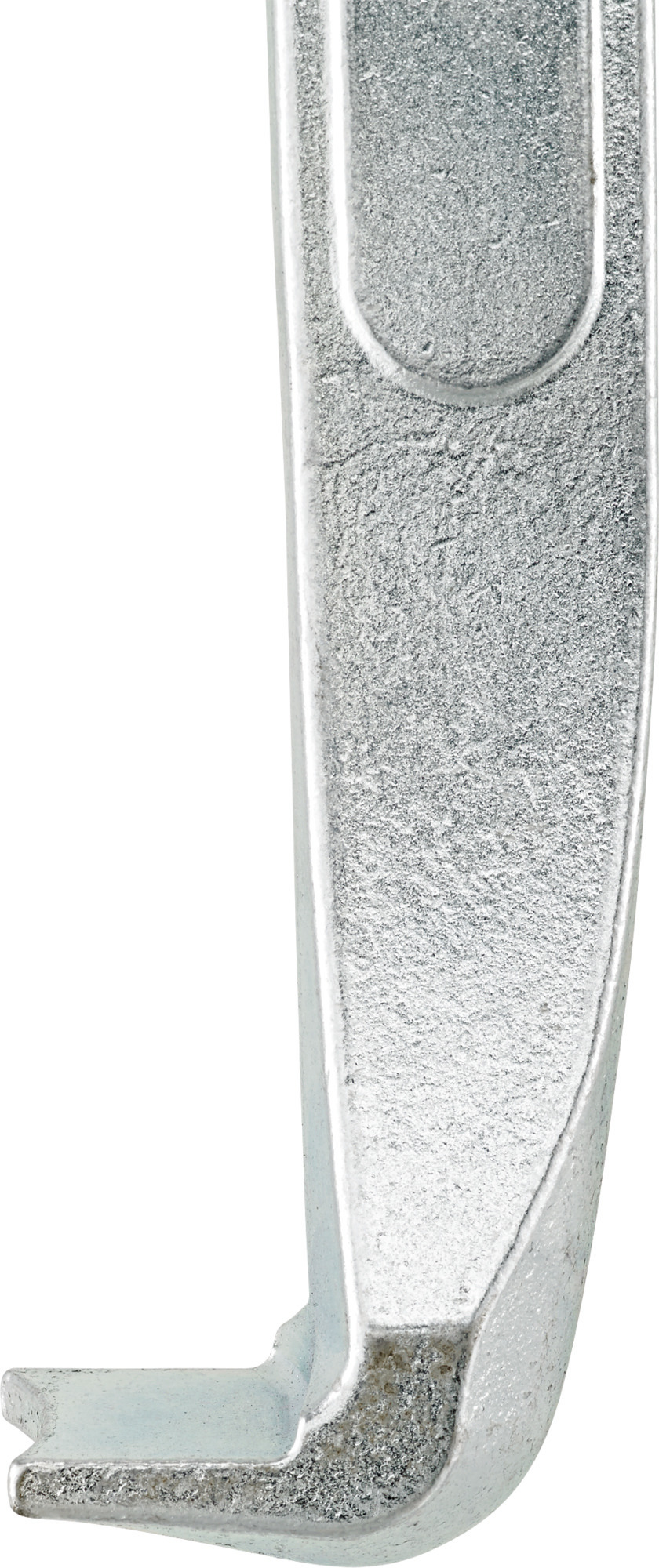

Adapted access geometry.
Heavy-duty puller hooks made of oil-hardened Chrome Alloy Steel with special access geometry for tight spaces. Custom radii for shafts and axes.
Sturdy design.
High bending rigidity thanks to cross members with precisely calculated profile ribs and milled, smooth guideways.
Protection against damage.
The centering tip is freely rotating - to protect the shafts from damage.
For increased safety.
Thoughtfully designed, die-forged and precisely machined, hardened and tempered on state-of-the-art machines - the STAHLWILLE puller range offers numerous products for a wide range of applications. For example, terminal pullers, pullers for ball joints, counter stays or ball joint extractors - always in premium quality.
