40082525

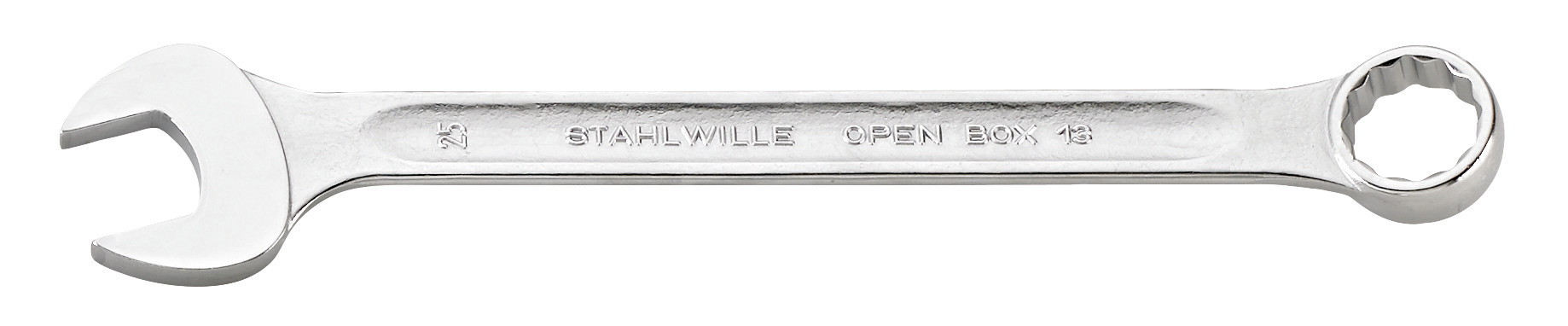

Combination spanner

OPEN BOX 13

Artikel-Nr. 40082525|EAN 4018754018901

High-quality combination spanner in metric sizes.
For easy tightening and loosening of hex screws.
The ring side that is offset by 15° makes it easy to work on flat surfaces.
The slim, thin-walled rings are ideal for working in areas that are difficult to access.
The distinctive STAHLWILLE rounded finish gives the combination spanner good grip and a pleasant feel for safe working, even with oily hands.

Produkt-Varianten

Product no.	Spanner size 1 [mm]	Spanner size 2 [mm]	Length mm (L)	Width mm (b)	a1	a2	Drive profile	d	t	Weight	Maß-Skizze
40080606	6 mm	6 mm	105 mm	15.5 mm	3,6 mm	6 mm	bi-hex AS-Drive®	9,9 mm	15 mm	15 g	Jetzt entdecken
40080707	7 mm	7 mm	110 mm	15.5 mm	3,9 mm	6 mm	bi-hex AS-Drive®	9,9 mm	20 mm	10 g	Jetzt entdecken
40080808	8 mm	8 mm	115 mm	18 mm	4,2 mm	7 mm	bi-hex AS-Drive®	12,4 mm	21 mm	21 g	Jetzt entdecken
40080909	9 mm	9 mm	120 mm	21 mm	4,5 mm	7 mm	bi-hex AS-Drive®	13,4 mm	10 mm	27 g	Jetzt entdecken
40081010	10 mm	10 mm	125 mm	23 mm	4,8 mm	7 mm	bi-hex AS-Drive®	14,8 mm	10 mm	35 g	Jetzt entdecken
40081111	11 mm	11 mm	135 mm	26 mm	4,8 mm	8 mm	bi-hex AS-Drive®	16,4 mm	10 mm	43 g	Jetzt entdecken
40081212	12 mm	12 mm	140 mm	28 mm	5,3 mm	8,5 mm	bi-hex AS-Drive®	17,8 mm	10 mm	46 g	Jetzt entdecken
40081313	13 mm	13 mm	160 mm	30 mm	5,3 mm	8,5 mm	bi-hex AS-Drive®	19,1 mm	10 mm	57 g	Jetzt entdecken
40081414	14 mm	14 mm	165 mm	32 mm	5,3 mm	8,5 mm	bi-hex AS-Drive®	20,6 mm	10 mm	68 g	Jetzt entdecken
40081515	15 mm	15 mm	170 mm	35 mm	5,3 mm	8,5 mm	bi-hex AS-Drive®	21,9 mm	10 mm	80 g	Jetzt entdecken
40081616	16 mm	16 mm	180 mm	37 mm	5,8 mm	10 mm	bi-hex AS-Drive®	23,2 mm	10 mm	89 g	Jetzt entdecken
40081717	17 mm	17 mm	190 mm	38 mm	5,8 mm	10 mm	bi-hex AS-Drive®	24,6 mm	10 mm	100 g	Jetzt entdecken
40081818	18 mm	18 mm	200 mm	40 mm	6,7 mm	11,5 mm	bi-hex AS-Drive®	26 mm	10 mm	126 g	Jetzt entdecken
40081919	19 mm	19 mm	230 mm	42 mm	6,7 mm	11,5 mm	bi-hex AS-Drive®	27,5 mm	10 mm	140 g	Jetzt entdecken
40082020	20 mm	20 mm	230 mm	45 mm	7 mm	13 mm	bi-hex AS-Drive®	29 mm	10 mm	176 g	Jetzt entdecken
40082121	21 mm	21 mm	260 mm	47 mm	7,3 mm	13 mm	bi-hex AS-Drive®	30,3 mm	10 mm	216 g	Jetzt entdecken
40082222	22 mm	22 mm	260 mm	49 mm	7,3 mm	13 mm	bi-hex AS-Drive®	31,8 mm	10 mm	220 g	Jetzt entdecken
40082323	23 mm	23 mm	280 mm	53 mm	7,8 mm	14 mm	bi-hex AS-Drive®	33,5 mm	5 mm	251 g	Jetzt entdecken
40082424	24 mm	24 mm	280 mm	53 mm	7,8 mm	14 mm	bi-hex AS-Drive®	34,9 mm	5 mm	254 g	Jetzt entdecken
40082525	25 mm	25 mm	300 mm	55 mm	8,4 mm	14,5 mm	bi-hex AS-Drive®	36,3 mm	5 mm	281 g
40082626	26 mm	26 mm	300 mm	57.5 mm	8,4 mm	14,5 mm	bi-hex AS-Drive®	37,8 mm	5 mm	325 g	Jetzt entdecken
40082727	27 mm	27 mm	300 mm	60 mm	8,4 mm	14,5 mm	bi-hex AS-Drive®	39,2 mm	5 mm	335 g	Jetzt entdecken
40082828	28 mm	28 mm	320 mm	62 mm	8,4 mm	14,5 mm	bi-hex AS-Drive®	40,6 mm	5 mm	368 g	Jetzt entdecken
40082929	29 mm	29 mm	330 mm	64 mm	8,9 mm	16 mm	bi-hex AS-Drive®	41,9 mm	5 mm	385 g	Jetzt entdecken
40083030	30 mm	30 mm	330 mm	66 mm	8,9 mm	16 mm	bi-hex AS-Drive®	43,2 mm	5 mm	404 g	Jetzt entdecken
40083232	32 mm	32 mm	360 mm	70 mm	9,4 mm	16,5 mm	bi-hex AS-Drive®	45,8 mm	5 mm	484 g	Jetzt entdecken
40083434	34 mm	34 mm	450 mm	75 mm	9,4 mm	17 mm	bi-hex AS-Drive®	48 mm	1 mm	683 g	Jetzt entdecken
40083636	36 mm	36 mm	460 mm	80 mm	10 mm	18 mm	bi-hex AS-Drive®	50,8 mm	1 mm	780 g	Jetzt entdecken
40083838	38 mm	38 mm	480 mm	87 mm	11 mm	19 mm	bi-hex AS-Drive®	53,6 mm	1 mm	915 g	Jetzt entdecken
40084141	41 mm	41 mm	480 mm	88 mm	11 mm	19 mm	bi-hex AS-Drive®	57,8 mm	1 mm	1020 g	Jetzt entdecken
40084646	46 mm	46 mm	500 mm	94.5 mm	13 mm	20 mm	bi-hex AS-Drive®	65,2 mm	1 mm	1330 g	Jetzt entdecken
40085050	50 mm	50 mm	530 mm	103 mm	14 mm	21 mm	bi-hex AS-Drive®	73 mm	1 mm	1600 g	Jetzt entdecken
40085500	5.5 mm	5.5 mm	100 mm	14.8 mm	3,5 mm	5,8 mm	bi-hex AS-Drive®	9,2 mm	13 mm	15 g	Jetzt entdecken
40085555	55 mm	55 mm	560 mm	114 mm	15 mm	22 mm	bi-hex AS-Drive®	81 mm	1 mm	2065 g	Jetzt entdecken
40086060	60 mm	60 mm	590 mm	125 mm	16 mm	24 mm	bi-hex AS-Drive®	89,8 mm	1 mm	2725 g	Jetzt entdecken

Eigenschaften

metric sizes
jaw position 15°
ring with double hex
ring side offset 15°
AS-Drive® profile prevents damage to fasteners
reinforced connection between jaw and shaft
durable, slim and lightweight design
high bending strength due to double T-profile
STAHLWILLE rounded finish provides a non-slip, pleasant feel
drop-forged, hardened and cooled in an oil bath
Chrome Alloy Steel, chrome-plated
DIN 3113 Form A/ISO 7738 Form A

Produkt-Highlights

Angled and offset.

The 15° angled jaw opening is the guarantee of exact positioning on the screw for optimum force transmission. The offset side of the ring makes it easier to work on flat surfaces.

Excellent workmanship.

The spanner is made from high-quality forged Chrome Alloy Steel, making it extremely robust and durable, even during continuous use. It also has a corrosion-resistant chrome-plated finish.

Non-slip surface

STAHLWILLE spanners have a high-quality surface finish with good grip, making it possible to work safely and efficiently, even with greasy hands. The non-slip property improves control during handling.

A solution for every situation.

Our combination spanners are available in different versions (metric, imperial, long, with Spline-Drive profile) and as sets in textile bags, roll-up tool pouches or TCS inserts.

Optimum power transmission.

Every spanner guarantees consistently excellent quality due to minimal manufacturing tolerances and highly reproducible precision. The jaws and ring always sit firmly on the screw, thus ensuring optimal power transmission.
