Double-ended open-ring spanners, angled
Double-ended open-ring spanners, angled

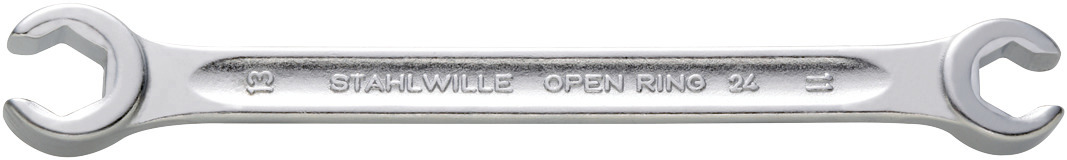

OPEN RING 24a
- High-quality open-end double-ended ring spanner with hex for working on threaded rods or long bolts, for example.
- A special manufacturing process enables thin-walled rings - slim for use in confined areas and at the same time robust enough for high loads.
- The hex AS-Drive profile protects bolts and nuts because the force is applied specifically to the flanks - not the edges.
- The distinctive STAHLWILLE rounded finish gives the combination spanner a non-slip and comfortable feel for safe working, even with oily hands.
- Made of robust Chrome Alloy Steel and additionally chrome-plated for high durability, reliable corrosion protection and enormous wear resistance.
Produkt-Varianten

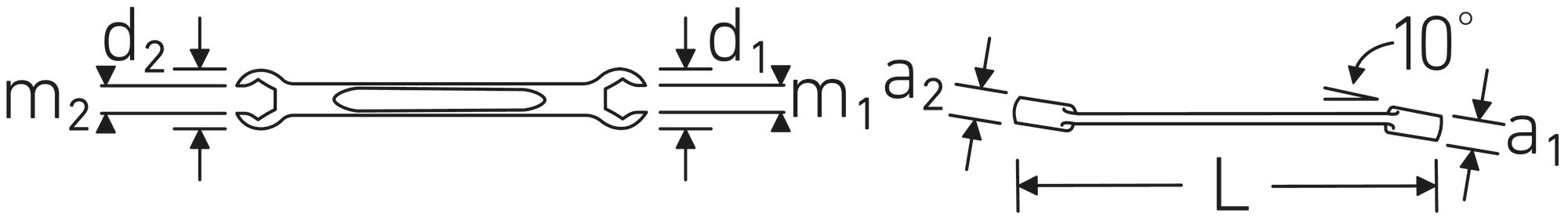

| Product no. | Model | Size 1 [inch] | Size 2 [inch] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | m1 | m2 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41481620 | OPEN RING 24a | 1/4 " | 5/16 " | 105 mm | 5,5 mm | 7 mm | hex AS-Drive | 16,5 mm | 18 mm | 3,7 mm | 5 mm | 32 g | Jetzt entdecken |
| 41482024 | OPEN RING 24a | 5/16 " | 3/8 " | 145 mm | 7 mm | 8,5 mm | hex AS-Drive | 17,5 mm | 19,5 mm | 6,3 mm | 7,1 mm | 39 g | |
| 41482428 | OPEN RING 24a | 3/8 " | 7/16 " | 155 mm | 8,5 mm | 9 mm | hex AS-Drive | 19,5 mm | 21,5 mm | 7,1 mm | 8,6 mm | 57 g | Jetzt entdecken |
| 41483234 | OPEN RING 24a | 1/2 " | 9/16 " | 180 mm | 9,5 mm | 10,5 mm | hex AS-Drive | 24 mm | 26 mm | 9,5 mm | 11 mm | 87 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Anti-Slip-Drive
Thin-walled rings
Eigenschaften
- imperial, differing end sizes
- cranked 10°
- hex with AS-Drive profile
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
Produkt-Highlights
Quick access in confined installation situations.
The open ring allows particularly quick, lateral access to the screw connection without having to attach it from above. This offers clear advantages in confined spaces and in applications where cables, threaded rods or surrounding components restrict access. This means that screw connections can be efficiently reached and worked on even in difficult installation situations.
Greater efficiency and better access.
Our double-ended open-ring spanner is angled by 10°, allowing better access to screw connections in confined spaces - for example, next to housings, pipes or frames. Thanks to the unequal spanner sizes, it also covers two common sizes. This significantly reduces the need to change tools, keeps the workflow smooth and is a real advantage, especially for recurring assembly and service work.
Optimum power transmission.
Each spanner guarantees consistently excellent quality thanks to minimal manufacturing tolerances and high reproducible precision. The jaw and ring always fit securely on the screw, ensuring optimum power transmission.
Non-slip surface.
STAHLWILLE spanners feature a high-quality, non-slip surface texture that enables safe working even with oily hands. The non-slip texture increases control during handling.
High-quality workmanship.
The key is forged from high-quality Chrome Alloy Steel, which gives it high stability and resistance even in continuous use. It is also chrome-plated for corrosion resistance.
