Double-ended open-ring spanners, angled
Double-ended open-ring spanners, angled
OPEN RING 24a
- Premium quality double-ended open ring spanners for working on threaded studs or long bolts, for example.
- Ein besonderes Fertigungsverfahren ermöglicht dünnwandige Ringe - schlank für den Einsatz in engen Bereichen und zugleich robust genug für hohe Belastungen.
- Das Sechskant-AS-Drive-Profil schützt Schrauben und Muttern, weil die Kraft gezielt über die Flanken eingeleitet wird - nicht über die Kanten.
- Das markante STAHLWILLE Rundfinish verleiht dem Ringmaulschlüssel eine griffige und angenehme Haptik für sicheres Arbeiten, selbst mit ölverschmierten Händen.
- Hergestellt aus robustem Chrome Alloy Steel und zusätzlich verchromt für hohe Haltbarkeit, zuverlässigen Korrosionsschutz und enorme Verschleißfestigkeit.
Produkt-Varianten

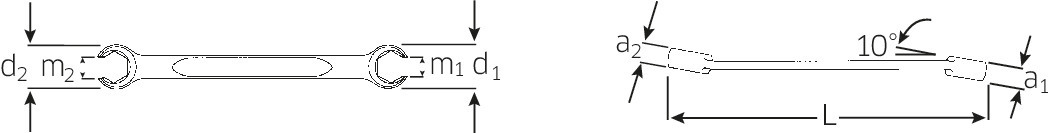

| Product no. | Model | Size 1 [inch] | Size 2 [inch] | Length mm (L) | a1 | a2 | Drive profile | d1 | d2 | m1 | m2 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 41481620 | OPEN RING 24a | 1/4 " | 5/16 " | 105 mm | 5,5 mm | 7 mm | hex AS-Drive | 16,5 mm | 18 mm | 3,7 mm | 5 mm | 32 g | |
| 41482024 | OPEN RING 24a | 5/16 " | 3/8 " | 145 mm | 7 mm | 8,5 mm | hex AS-Drive | 17,5 mm | 19,5 mm | 6,3 mm | 7,1 mm | 39 g | Jetzt entdecken |
| 41482428 | OPEN RING 24a | 3/8 " | 7/16 " | 155 mm | 8,5 mm | 9 mm | hex AS-Drive | 19,5 mm | 21,5 mm | 7,1 mm | 8,6 mm | 57 g | Jetzt entdecken |
| 41483234 | OPEN RING 24a | 1/2 " | 9/16 " | 180 mm | 9,5 mm | 10,5 mm | hex AS-Drive | 24 mm | 26 mm | 9,5 mm | 11 mm | 87 g | Jetzt entdecken |
Technologien und Leistungsmerkmale
Double-T profile
Anti-Slip-Drive
Thin-walled rings
Eigenschaften
- imperial, differing end sizes
- cranked 10°
- hex with AS-Drive profile
- durable, slim and lightweight design
- high flexural strength due to double-T profile
- STAHLWILLE's rounded finish ensures a non-slip, pleasant feel
- drop-forged, hardened, and cooled in an oil bath
- Chrome Alloy Steel, chrome-plated
Produkt-Highlights
Excellent workmanship.
The spanner is made from high-quality forged Chrome Alloy Steel, making it extremely robust and durable, even during continuous use. It also has a corrosion-resistant chrome-plated finish.
Excellent workmanship.
The spanner is made from high-quality forged Chrome Alloy Steel, making it extremely robust and durable, even during continuous use. It also has a corrosion-resistant chrome-plated finish.
Optimum power transmission.
Every spanner guarantees consistently excellent quality due to minimal manufacturing tolerances and highly reproducible precision. The jaws and ring always sit firmly on the screw, thus ensuring optimal power transmission.
Non-slip surface
STAHLWILLE spanners have a high-quality surface finish with good grip, making it possible to work safely and efficiently, even with greasy hands. The non-slip property improves control during handling.
Excellent workmanship.
The spanner is made from high-quality forged Chrome Alloy Steel, making it extremely robust and durable, even during continuous use. It also has a corrosion-resistant chrome-plated finish.
