Test attachment for torque screwdrivers
Products
/
Torque tools
/
Calibration systems
/
Testing attachments

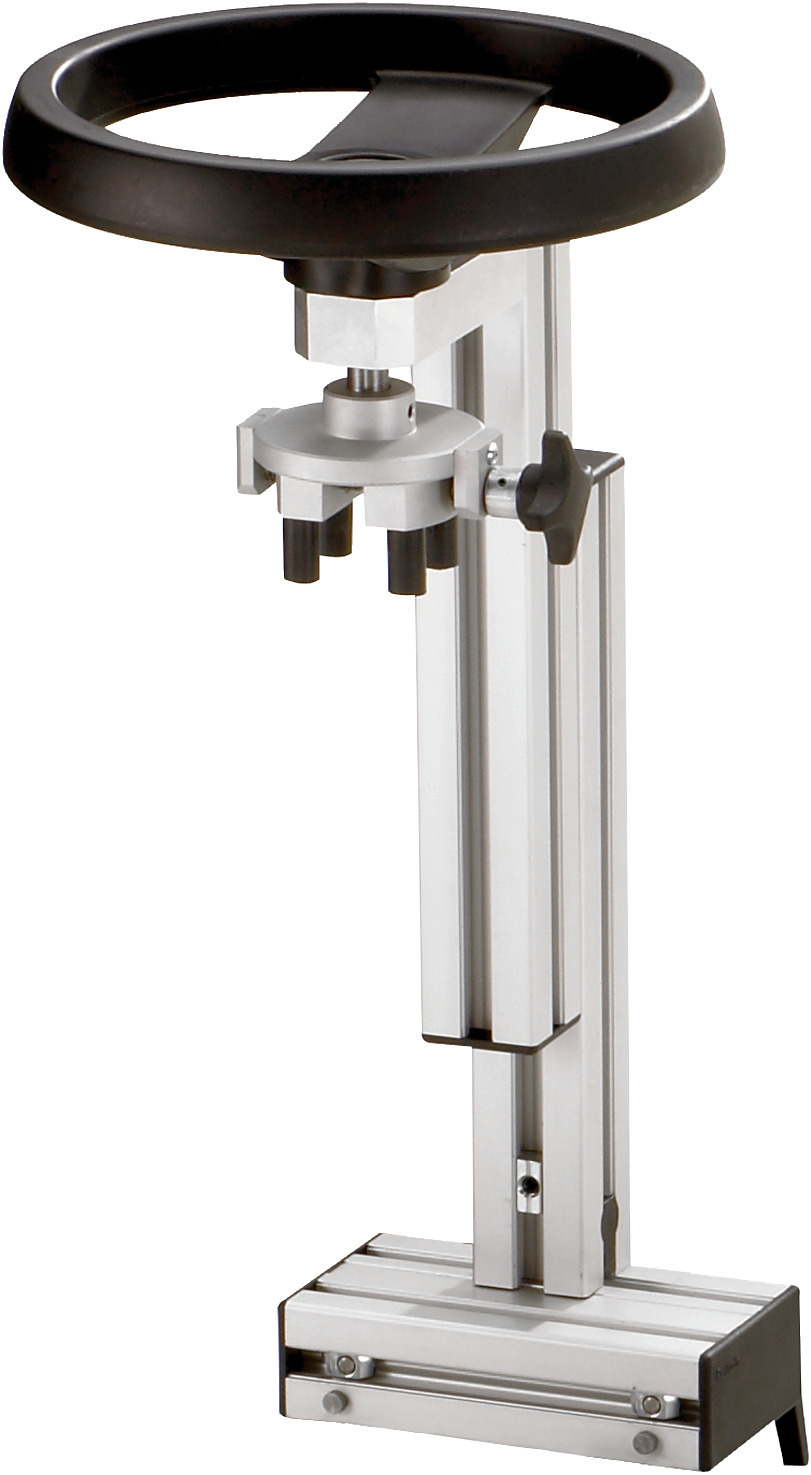

Test attachment for torque screwdrivers
7791-2
Produktvarianten
Artikel-Nr. 52110291
|
EAN 4018754178360
Can be screwed onto the mechanical calibration device No. 7791.
Online Kaufen
Händlersuche
Produkt-Varianten
Art. no.
Length mm (L)
Width mm (b)
Height mm (h)
Range N·m
t
Weight

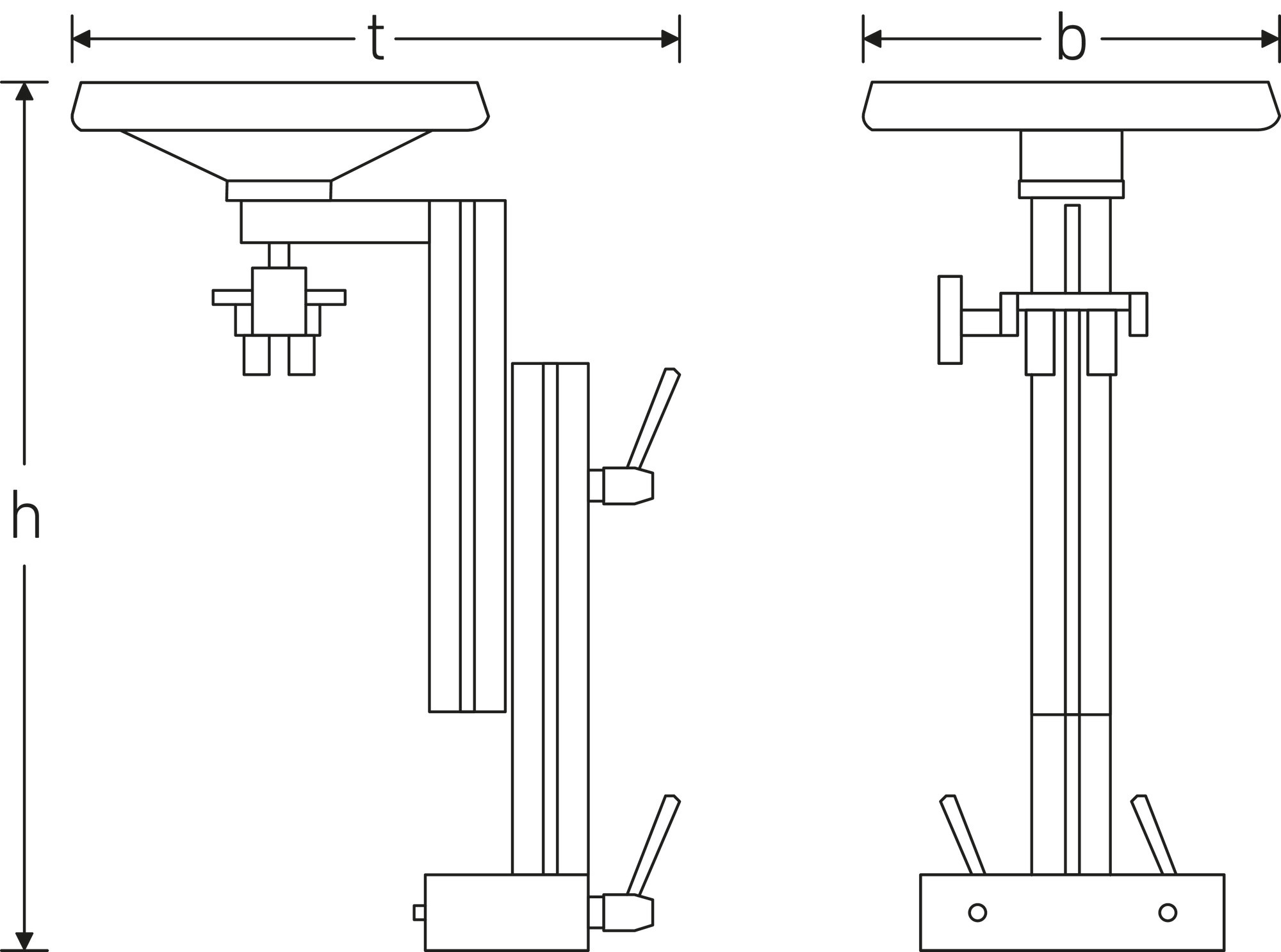

Maß-Skizze
52110291
440 mm
250 mm
442-593 mm
1-10 N·m
351 mm
3739 g
Eigenschaften
can be bolted onto mechanical loader No 7791
the torque screwdriver to be calibrated is inserted in the square mount of the transducer and fixed using the universal central clamp
the handwheel ensures that the required force is applied in a controlled manner to the torque screwdriver
Downloads
Produktdatenblatt: STAHLWILLE_52110291_7791-2_en.pdf
PDF | 0.26 MB
In unserem Kundenportal bieten wir weitere Informationen und Downloads.
Zum Kundenportal
