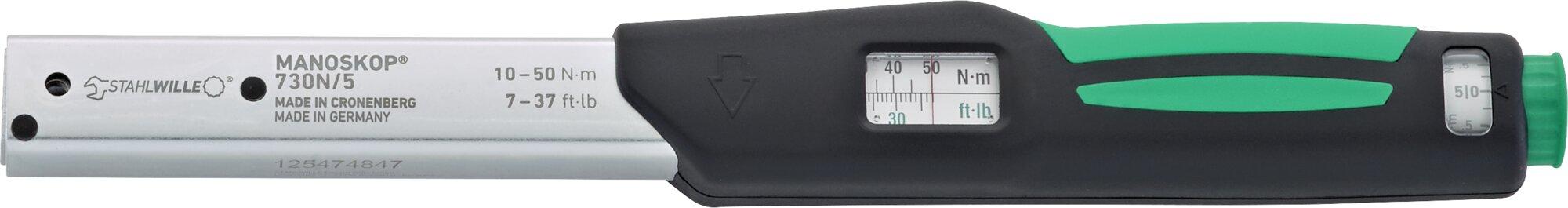

Torque wrench service MANOSKOP® with holder for insert tools
Torque wrench service MANOSKOP® with holder for insert tools
730N
Artikel-Nr. 50181005|EAN 4018754139514
Produkt-Varianten
| Art. no. | Size | Model | Measuring range N·m | Measuring range ft·lb | MA N·m | Nominal value N·m | Length mm (L) | Width mm (b) | Height mm (h) | Fine scale division | Size square socket [internal square drive] | LF | SF | Weight | Scale division N·m | Scale division ft·lb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50181005 | 5 | 730N | 10-50 N·m | 7-37 ft·lb | 10 N·m | 50 N·m | 330 mm | 28 mm | 23 mm | 0,25 N·m | 9 x 12 mm | 280,5 mm | 17,5 mm | 831 g | 5 N·m | 1 ft·lb | |
| 50181010 | 10 | 730N | 20-100 N·m | 15-75 ft·lb | 20 N·m | 100 N·m | 386 mm | 28 mm | 23 mm | 0,5 N·m | 9 x 12 mm | 336 mm | 17,5 mm | 988 g | 10 N·m | 2,5 ft·lb | Jetzt entdecken |
| 50181012 | 12 | 730N | 25-130 N·m | 20-95 ft·lb | 25 N·m | 130 N·m | 421 mm | 28 mm | 23 mm | 0,5 N·m | 14 x 18 mm | 379 mm | 25 mm | 1128 g | 10 N·m | 2,5 ft·lb | Jetzt entdecken |
| 50181020 | 20 | 730N | 40-200 N·m | 30-150 ft·lb | 40 N·m | 200 N·m | 467 mm | 28 mm | 23 mm | 1 N·m | 14 x 18 mm | 424,5 mm | 25 mm | 1264 g | 10 N·m | 5 ft·lb | Jetzt entdecken |
| 50181040 | 40 | 730N | 80-400 N·m | 60-300 ft·lb | 80 N·m | 400 N·m | 607 mm | 28 mm | 23 mm | 2 N·m | 14 x 18 mm | 564,5 mm | 25 mm | 1655 g | 20 N·m | 10 ft·lb | Jetzt entdecken |
| 50181065 | 65 | 730N | 130-650 N·m | 100-480 ft·lb | 130 N·m | 650 N·m | 890 mm | 30,6 mm | 25,6 mm | 2,5 N·m | 14 x 18 mm | 848 mm | 25 mm | 3231 g | 50 N·m | 20 ft·lb | Jetzt entdecken |
| 50181080 | 80 | 730N | 160-800 N·m | 120-600 ft·lb | 160 N·m | 800 N·m | 1178 mm | 30,6 mm | 25,6 mm | 5 N·m | 22 x 28 mm | 1167 mm | 55 mm | 4825 g | 100 N·m | 25 ft·lb | Jetzt entdecken |
| 50181100 | 100 | 730N | 200-1000 N·m | 150-750 ft·lb | 200 N·m | 1,000 N·m | 1363 mm | 30,6 mm | 25,6 mm | 5 N·m | 22 x 28 mm | 1352 mm | 55 mm | 5000 g | 100 N·m | 25 ft·lb | Jetzt entdecken |
| 50181365 | II/65 | 730N | 130-650 N·m | 100-480 ft·lb | 130 N·m | 650 N·m | 911 mm | 30,6 mm | 25,6 mm | 2,5 N·m | 22 x 28 mm | 900 mm | 55 mm | 3504 g | 50 N·m | 20 ft·lb | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to '0' after use.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- mount for interchangeable insert tools
- QuickRelease safety lock
- can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- display deviation value ± 3% (size 2; a/2 4 %)
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with two adjustment points for the maximum & minimum values.
Triggering dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
