Service MANOSKOP® torque wrenches
Service MANOSKOP® torque wrenches

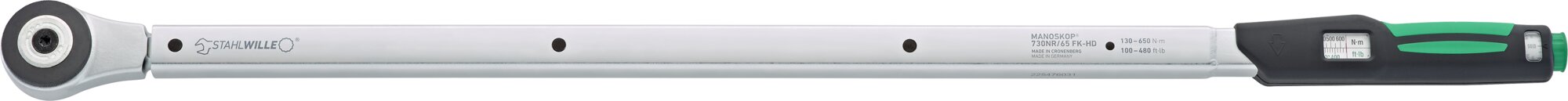

730NR
Artikel-Nr. 96502265|EAN 4018754221554
Produkt-Varianten
| Product no. | Size | Model | Measuring range N·m | Measuring range ft-lb | External square drive (inch) | Length mm (L) | b1 | b2 | Height mm (h1) | Height mm (h2) | Fine scale division | LF | Weight (g) | Weight with box | Scale division N·m | Scale division ft-lb | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96502140 | 40 FK | 730NR | 80-400 N·m | 60-300 ft·lb | 3/4 | 657 mm | 28 mm | 50 mm | 23 mm | 31,5 mm | 2 N·m | 564,5 mm | 2122 g | 2657 g | 20 N·m | 10 ft·lb | Jetzt entdecken |
| 96502265 | 65 FK-HD | 730NR | 130-650 N·m | 100-480 ft·lb | 3/4 | 944 mm | 30,6 mm | 58 mm | 25,6 mm | 36 mm | 2,5 N·m | 848 mm | 3698 g | 6188 g | 50 N·m | 20 ft·lb | |
| 96503105 | 5 FK | 730NR | 10-50 N·m | 7-37 ft·lb | 3/8 | 364 mm | 28 mm | 33 mm | 23 mm | 24 mm | 0,25 N·m | 280,5 mm | 973 g | 1763 g | 5 N·m | 1 ft·lb | Jetzt entdecken |
| 96503110 | 10 FK | 730NR | 20-100 N·m | 15-75 ft·lb | 1/2 | 420 mm | 28 mm | 33 mm | 23 mm | 24 mm | 0,5 N·m | 336,5 mm | 1146 g | 1934 g | 10 N·m | 2,5 ft·lb | Jetzt entdecken |
| 96503120 | 20 FK | 730NR | 40-200 N·m | 30-150 ft·lb | 1/2 | 513,5 mm | 28 mm | 43 mm | 23 mm | 26 mm | 1 N·m | 425 mm | 1583 g | 2370 g | 10 N·m | 5 ft·lb | Jetzt entdecken |
Technologien und Leistungsmerkmale
Factory calibration certificate (ISO calibration)
Our torque tools, transducers, and test equipment are delivered with a factory calibration certificate in accordance with DIN EN ISO 6789-2:2017, and based on DKD-R 10-8 for traceability of the measuring equipment.
Low-wear flexible rod system
Our torque wrench is equipped with a low-wear trigger system with a bending beam. Unlike conventional torque wrenches with coiled springs, the flexible rod is not preloaded in unloaded state, which means that the 'spring' does not need to be reset to '0' after use.
QuickRelease
The QuickRelease safety lock prevents unintentional loss of insert tools. These click securely into place, and are only released again at the push of a button for a quick tool change.
2-component handle
Our 2-component handle is non-slip and ergonomically designed. It is resistant to the most common oils, greases, fuels, brake fluids, and Skydrol. The arrow markings on the handle indicate the direction of operation.
Eigenschaften
- clicking type with dual stop signal
- no reset to '0' required
- the measuring element is only under load when a force is applied
- with QuickRelease ratchet
- with QuickRelease safety lock
- fast, precise adjustment with QuickSelect quick adjustment
- dual scale N·m/ft·lb
- clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
- optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791
- easy adjustment without disassembly via 2 external adjustment screws
- in sturdy plastic box (size 65 in sheet steel box)
- with 2-component handle
- calibration certificate in accordance with DIN EN ISO 6789-2:2017
- accuracy ± 4%
Produkt-Highlights
Adjustment does not require disassembly.
Quick adjustment from outside, no disassembly of the torque wrench required, with 2 adjustment points for the maximum & minimum values.
Clear fine adjustment.
The easy-to-use and easy-to-read double scale in N·m/ft·lb allows precise and easy target torque adjustment for reliable and accurate application.
Clicking dual stop signal.
When the target torque is reached, MANOSKOP® 730N provides a noticeable tactile dual stop signal.
