Vridvinkel-och momentnycklar MANOSKOP®

714

Artikel-Nr. 96500940|EAN 4018754222841

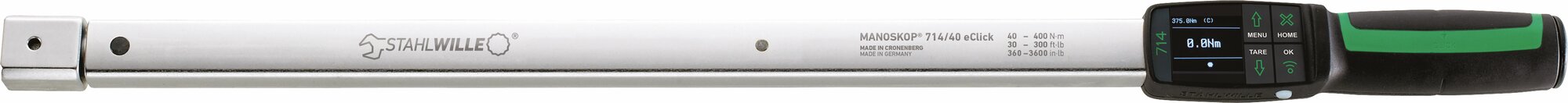

Torque and angle-controlled torque wrench for bolted joints in accordance with the torque, angle of rotation, torque with 'angle of rotation' monitoring variable and angle of rotation with 'torque' monitoring variable tightening methods.
With patented electromechanical release: precise electronic measurement combined with the familiar mechanical ‘click’.
Visual evaluation of the bolted joint.
Simple documentation of the recorded measurements on the PC via the USB interface and via an optional Bluetooth low energy module.
Thanks to the combination of the patented electromechanical clicking type and the display and acoustic feedback, the wrench provides signalling with maximum optimisation.

Produkt-Varianten

Art. no.	Str.	Modell	Mätområde N·m	Mätområde ft·lb	Mätområde in·lb	Längd mm (L)	Bredd mm (b)	Höjd mm (h)	Typ av batteri	Storlek verktygsfäste [invändig fyrkant]	LF	SF	Vikt (g)	Vikt med låda	Beteckning	Maß-Skizze
96500100	100	714	100-1000 N·m	74-750 ft·lb	900-9000 in·lb	1343 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	22 x 28 mm	1343 mm	55 mm	4990 g	10500 g	Vridvinkel-och momentnycklar MANOSKOP® 714 100-1000N·m 22 x 28 mm L. 1343mm	Jetzt entdecken
96500901	1	714	1-10 N·m	0,7-7,5 ft·lb	9-90 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	9 x 12 mm	188 mm	17,5 mm	370 g	795 g	Vridvinkel-och momentnycklar MANOSKOP® 714 1-10N·m 9 x 12 mm L. 226mm	Jetzt entdecken
96500902	2	714	2-20 N·m	1,5-15 ft·lb	18-180 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	9 x 12 mm	188 mm	17,5 mm	380 g	805 g	Vridvinkel-och momentnycklar MANOSKOP® 714 2-20N·m 9 x 12 mm L. 226mm	Jetzt entdecken
96500904	4	714	4-40 N·m	3-30 ft·lb	36-360 in·lb	252 mm	28 mm	23 mm	Micro (AAA) 1,5V	9 x 12 mm	214 mm	17,5 mm	420 g	845 g	Vridvinkel-och momentnycklar MANOSKOP® 714 4-40N·m 9 x 12 mm L. 252mm	Jetzt entdecken
96500906	6	714	6-60 N·m	4,5-45 ft·lb	54-540 in·lb	393 mm	28 mm	23 mm	Micro (AAA) 1,5V	9 x 12 mm	355 mm	17,5 mm	810 g	1235 g	Vridvinkel-och momentnycklar MANOSKOP® 714 6-60N·m 9 x 12 mm L. 393mm	Jetzt entdecken
96500910	10	714	10-100 N·m	7,4-75 ft·lb	90-900 in·lb	466 mm	28 mm	23 mm	Micro (AAA) 1,5V	9 x 12 mm	428 mm	17,5 mm	1085 g	1655 g	Vridvinkel-och momentnycklar MANOSKOP® 714 10-100N·m 9 x 12 mm L. 466mm	Jetzt entdecken
96500920	20	714	20-200 N·m	15-150 ft·lb	180-1800 in·lb	547 mm	28 mm	23 mm	Micro (AAA) 1,5V	14 x 18 mm	516 mm	25 mm	1361 g	1896 g	Vridvinkel-och momentnycklar MANOSKOP® 714 20-200N·m 14 x 18 mm L. 547mm	Jetzt entdecken
96500940	40	714	40-400 N·m	30-300 ft·lb	360-3600 in·lb	687 mm	28 mm	23 mm	Micro (AAA) 1,5V	14 x 18 mm	656 mm	25 mm	1765 g	5155 g	Vridvinkel-och momentnycklar MANOSKOP® 714 40-400N·m 14 x 18 mm L. 687mm
96500965	65	714	65-650 N·m	48-480 ft·lb	580-5800 in·lb	890 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	22 x 28 mm	890 mm	55 mm	3222 g	7000 g	Vridvinkel-och momentnycklar MANOSKOP® 714 65-650N·m 22 x 28 mm L. 890mm	Jetzt entdecken
96500980	80	714	80-800 N·m	60-600 ft·lb	720-7200 in·lb	1158 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	22 x 28 mm	1158 mm	55 mm	4572 g	10400 g	Vridvinkel-och momentnycklar MANOSKOP® 714 80-800N·m 22 x 28 mm L. 1158mm	Jetzt entdecken

Eigenschaften

electromechanical triggering
acoustic and visual trigger signal
4 measuring modes (torque, angle of rotation, torque with 'angle of rotation' monitoring variable, angle of rotation with 'torque' monitoring variable)
high-resolution colour OLED display and side signal lights
visual evaluation of the bolted joint: yellow light (pre-warning threshold reached), green light (within tolerance range), red light (measurement outside tolerance range)
freely configurable menu structure
battery compartment/battery pack with bayonet connection
optional: Li-ion battery no. 7195-2 and charger no. 7160
3 function modes: triggering (patented electromechanical triggering), peak-hold (indicating mode with peak value display) and track (indicating mode with actual value display)
micro USB interface for data communication
optional Bluetooth low energy-module (5.2)
QuickRelease safety lock - switching system for insert tools
data storage for up to 2,500 processes, including date and time stamp
up to 200 joints in a maximum of 25 guided sequences can be programmed
different tolerance limits adjustable depending on the type of bolted joint
fast and precise setting via the keypad
no unintentional adjustments thanks to password-protected keypad lock
acoustic and visual signal warns of torque wrench overload and forced triggering in clockwise tightening mode
automatic indication of the next calibration date, user-configurable according to elapsed time and/or number of operations
fully automatic calibration and adjustment with the perfectControl® calibration and adjustment device No. 7794-2 (torque) or 7794-3 (torque and angle of rotation) for reducing error influencing factors
units of measurement: N·m, ft·lb, in·lb
automatic extension length correction: when an insert tool with a non-standard extension length is used, input the extension length to ensure that the required target value is achieved
ready for operation again immediately after release
clockwise and anticlockwise tightening - the insert tool must be flipped over for anticlockwise torque in 'triggering' function mode
torque and angle of rotation displays simultaneously
measurement regardless of the force application point (for sizes 1, 2, and 4)
safe handling due to the ergonomically shaped 2-component handle (resistant to the most common oils, greases, fuels, brake fluids and Skydrol)
3 certificates included (torque indicating/triggering in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
in sturdy plastic box (sizes 40-100 in steel box)
registered design, patented
supplied with SensoMaster 4 software, USB cable, 4 batteries AAA/LR03, 1.5 V
angle of rotation display resolution 0.1°
angle of rotation accuracy ± 1°, ± 1 digit to 100°, >100° at least 1%, ± 1 digit
torque display resolution ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m; > 400 N·m: 1 N·m
torque accuracy ± 2%, ± 1 digit

Produkt-Highlights

KONTROLLERAD.

Det går att dokumentera med alla våra Digitala vridvinkel-/vridmomentnycklar. Med hjälp av en programvara, som erbjuds som tillbehör, kan de programmeras och dessa sparade värden kan avläsas och sparas i datorn – till exempel verktygsserienummer, datum och tid då skruvningen gjordes, börvärde för vridmoment och vridvinkel samt faktiskt uppnådda vridmoment och vinklar.

Elektromekanisk utlösning.

Det bästa av två världar: Elektromekaniska momentnycklar från STAHLWILLE förenar ett elektroniskt momentverktygs precision med den beprövade känslan av äkta, mekanisk utlösning.

DOKUMENTERANDE.

Omfattande möjligheter för dokumentation. Upp till 2 000 förskruvningar sparas med tidsangivelse.

MÅNGSIDIG.

Tre funktionslägen: Click (utlösande), Peak (indikerande drift med visning av toppvärde) och Track (indikerande drift med visning av aktuellt värde).

MÅNGSIDIG.

Fyra mätlägen (vridmoment, vridvinkel, vridmoment med kontrollvariabel vridvinkel, vridvinkel med kontrollvariabel vridmoment).
