Vridvinkel-och momentnycklar MANOSKOP®

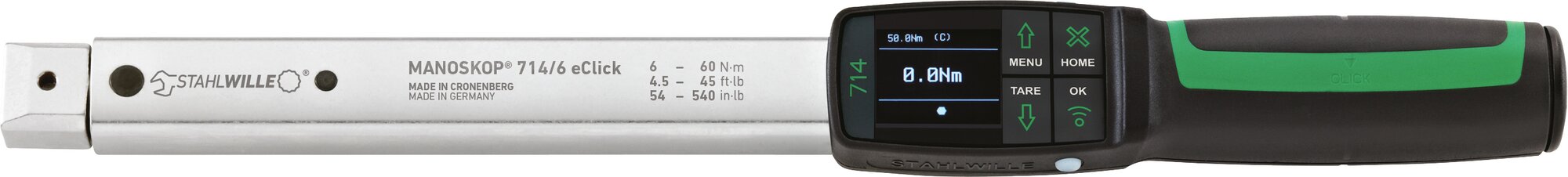

714 eClick

Artikel-Nr. 96500906|EAN 4018754222810

Torque and angle-controlled torque wrench for bolted joints in accordance with the torque, angle of rotation, torque with 'angle of rotation' monitoring variable and angle of rotation with 'torque' monitoring variable tightening methods.
With patented eClick technology (electromechanical click): accurate electronic measurement combined with the familiar mechanical click.
Visual evaluation of the bolted joint.
Simple documentation of the recorded measurements on the PC via the USB interface and via optional communication modules (Bluetooth LE or WLAN).
Thanks to the combination of the patented electromechanical clicking type and the display and acoustic feedback, the wrench provides signalling with maximum optimisation.

Produkt-Varianten

Art. no.	Modell	Storlek	Verktygshållarstorlek [inre kvadrat]	Mätområde N·m	Mätområde ft·lb	Mätområde in·lb	Längd mm (L)	Bredd mm (b)	Höjd mm (h)	Batterityp	LF	SF	Vikt (g)	Vikt med låda	Maß-Skizze
96500100	714 eClick	100	22 x 28 mm	100-1000 N·m	74-750 ft·lb	900-9000 in·lb	1343 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	1343 mm	55 mm	4990 g	10500 g	Jetzt entdecken
96500901	714 eClick	1	9 x 12 mm	1-10 N·m	0,7-7,5 ft·lb	9-90 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	188 mm	17,5 mm	370 g	795 g	Jetzt entdecken
96500902	714 eClick	2	9 x 12 mm	2-20 N·m	1,5-15 ft·lb	18-180 in·lb	226 mm	28 mm	23 mm	Micro (AAA) 1,5V	188 mm	17,5 mm	380 g	805 g	Jetzt entdecken
96500904	714 eClick	4	9 x 12 mm	4-40 N·m	3-30 ft·lb	36-360 in·lb	252 mm	28 mm	23 mm	Micro (AAA) 1,5V	214 mm	17,5 mm	420 g	845 g	Jetzt entdecken
96500906	714 eClick	6	9 x 12 mm	6-60 N·m	4,5-45 ft·lb	54-540 in·lb	393 mm	28 mm	23 mm	Micro (AAA) 1,5V	355 mm	17,5 mm	810 g	1235 g
96500910	714 eClick	10	9 x 12 mm	10-100 N·m	7,4-75 ft·lb	90-900 in·lb	466 mm	28 mm	23 mm	Micro (AAA) 1,5V	428 mm	17,5 mm	1085 g	1655 g	Jetzt entdecken
96500920	714 eClick	20	14 x 18 mm	20-200 N·m	15-150 ft·lb	180-1800 in·lb	547 mm	28 mm	23 mm	Micro (AAA) 1,5V	516 mm	25 mm	1361 g	1896 g	Jetzt entdecken
96500940	714 eClick	40	14 x 18 mm	40-400 N·m	30-300 ft·lb	360-3600 in·lb	687 mm	28 mm	23 mm	Micro (AAA) 1,5V	656 mm	25 mm	1765 g	5155 g	Jetzt entdecken
96500965	714 eClick	65	22 x 28 mm	65-650 N·m	48-480 ft·lb	580-5800 in·lb	890 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	890 mm	55 mm	3222 g	7000 g	Jetzt entdecken
96500980	714 eClick	80	22 x 28 mm	80-800 N·m	60-600 ft·lb	720-7200 in·lb	1158 mm	30,6 mm	25,6 mm	Micro (AAA) 1,5V	1158 mm	55 mm	4572 g	10400 g	Jetzt entdecken

Eigenschaften

eClick - electromechanical click
acoustic and visual clicking
4 measuring modes (torque, angle of rotation, torque with ‘angle of rotation’ monitoring variable, angle of rotation with ‘torque’ monitoring variable)
high-resolution colour OLED and side signal lights
visual evaluation of the bolted joint: yellow light (pre-warning threshold reached), green light (within tolerance range), red light (measurement outside tolerance range)
freely configurable menu structure
battery cap/battery pack with bayonet connection
optional: Li-ion battery no. 7195-2 and charger no. 7160
3 function modes: clicking (patented electromechanical click), peak hold (indicating mode with peak value display) and track (indicating mode with actual value display)
micro USB interface for data communication
optional Bluetooth Low Energy module (5.2) or WLAN module
QuickRelease safety lock - switching system for insert tools
data storage for up to 2,500 bolting processes, including date and time stamp
up to 200 bolted joints in a maximum of 25 sequence diagrams can be programmed
different tolerance limits can be set depending on the type of bolted joint
fast and precise adjustment via the keyboard
no unintentional adjustments thanks to password-protected keypad lock
acoustic and visual signal warns of torque wrench overload and forced clicking in clockwise tightening mode
automatic indication of the next calibration date, user-configurable by time interval and/or number of joints
fully automatic calibration and adjustment with the perfectControl® calibration and adjustment system no. 7794-2 (torque) or 7794-3 (torque and angle of rotation) for reducing error influencing factors
Units of measurement: N·m, ft·lb, in·lb
automatic extension length correction: option of entering a deviating extension length to ensure the required target value is achieved
ready for operation again immediately after release
for a controlled tightening process. The insert tool must be turned in clicking mode
torque and angle of rotation displays visible at the same time
measurement regardless of the force application point (for sizes 1, 2, and 4)
safe handling due to the ergonomically shaped 2-component handle (resistant to the most common oils, greases, fuels, brake fluids, and Skydrol)
3 certificates included (torque indicating/clicking in accordance with DIN EN ISO 6789-2:2017, angle of rotation based on VDI/VDE 2648-2)
in sturdy plastic box (sizes 40-100 in steel box)
registered design, patented
supplied with SensoMaster 4 software, USB cable, 4 micro-batteries AAA/LR03, 1.5 V
angle of rotation display resolution 0.1°
angle of rotation display accuracy ±1°, ±1 digit to 100°, >100° at least 1%, ±1 digit
torque display resolution ≤ 60 N·m: 0.01 N·m; > 60 N·m: 0.1 N·m; > 400 N·m: 1 N·m
torque display accuracy ±2%, ±1 digit

Produkt-Highlights

KONTROLLERAD.

Det går att dokumentera med alla våra Digitala vridvinkel-/vridmomentnycklar. Med hjälp av en programvara, som erbjuds som tillbehör, kan de programmeras och dessa sparade värden kan avläsas och sparas i datorn – till exempel verktygsserienummer, datum och tid då skruvningen gjordes, börvärde för vridmoment och vridvinkel samt faktiskt uppnådda vridmoment och vinklar.

Elektromekanisk utlösning.

Det bästa av två världar: Elektromekaniska momentnycklar från STAHLWILLE förenar ett elektroniskt momentverktygs precision med den beprövade känslan av äkta, mekanisk utlösning.

DOKUMENTERANDE.

Omfattande möjligheter för dokumentation. Upp till 2 000 förskruvningar sparas med tidsangivelse.

MÅNGSIDIG.

Tre funktionslägen: Click (utlösande), Peak (indikerande drift med visning av toppvärde) och Track (indikerande drift med visning av aktuellt värde).

MÅNGSIDIG.

Fyra mätlägen (vridmoment, vridvinkel, vridmoment med kontrollvariabel vridvinkel, vridvinkel med kontrollvariabel vridmoment).
