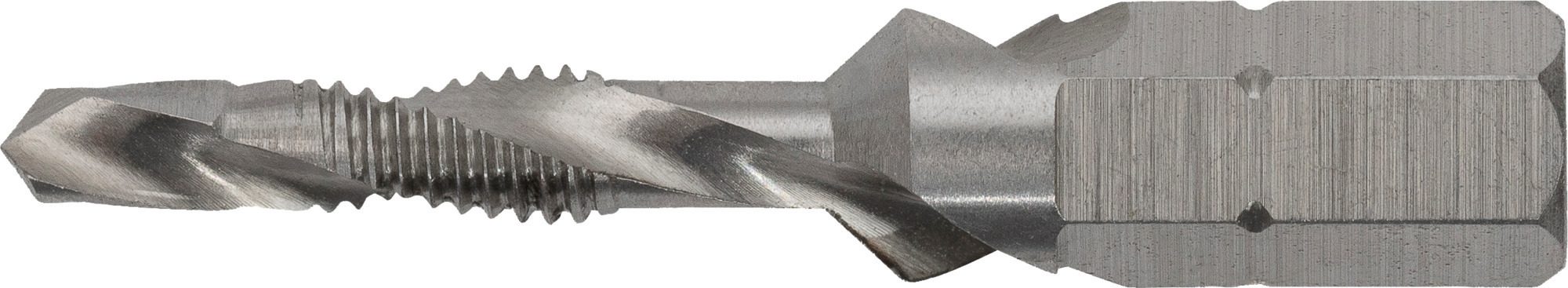

Combination thread bits
Combination thread bits
800
Artikel-Nr. 56080005|EAN 4022668015536
Produkt-Varianten
| Product no. | Model | for thread | Length mm (L) | External hex (inch) | d | hex drive external | Pitch | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
| 56080003 | 800 | M3 | 36 mm | 1/4" | 2,6 mm | 6,3 | 0,50 | 8 g | Jetzt entdecken |
| 56080004 | 800 | M4 | 39 mm | 1/4" | 3,4 mm | 6,3 | 0,70 | 8 g | Jetzt entdecken |
| 56080005 | 800 | M5 | 40 mm | 1/4" | 4,3 mm | 6,3 | 0,80 | 8 g | |
| 56080006 | 800 | M6 | 44 mm | 1/4" | 5,1 mm | 6,3 | 1,00 | 10 g | Jetzt entdecken |
| 56080008 | 800 | M8 | 51 mm | 1/4" | 6,9 mm | 6,3 | 1,25 | 12 g | Jetzt entdecken |
| 56080012 | 800 | M12 | 66 mm | 1/4" | 10,3 mm | 6,3 | 1,75 | 28 g | Jetzt entdecken |
| 56080020 | 800 | M10 | 59 mm | 1/4" | 8,6 mm | 6,3 | 1,50 | 26 g | Jetzt entdecken |
Eigenschaften
- Combination tap for drilling, tapping and countersinking in one operation
- Suitable only for through holes in easily machinable materials
- Right-cutting
- Standard tolerance ISO2/6H
- Quality HSSG
- Coating P0
