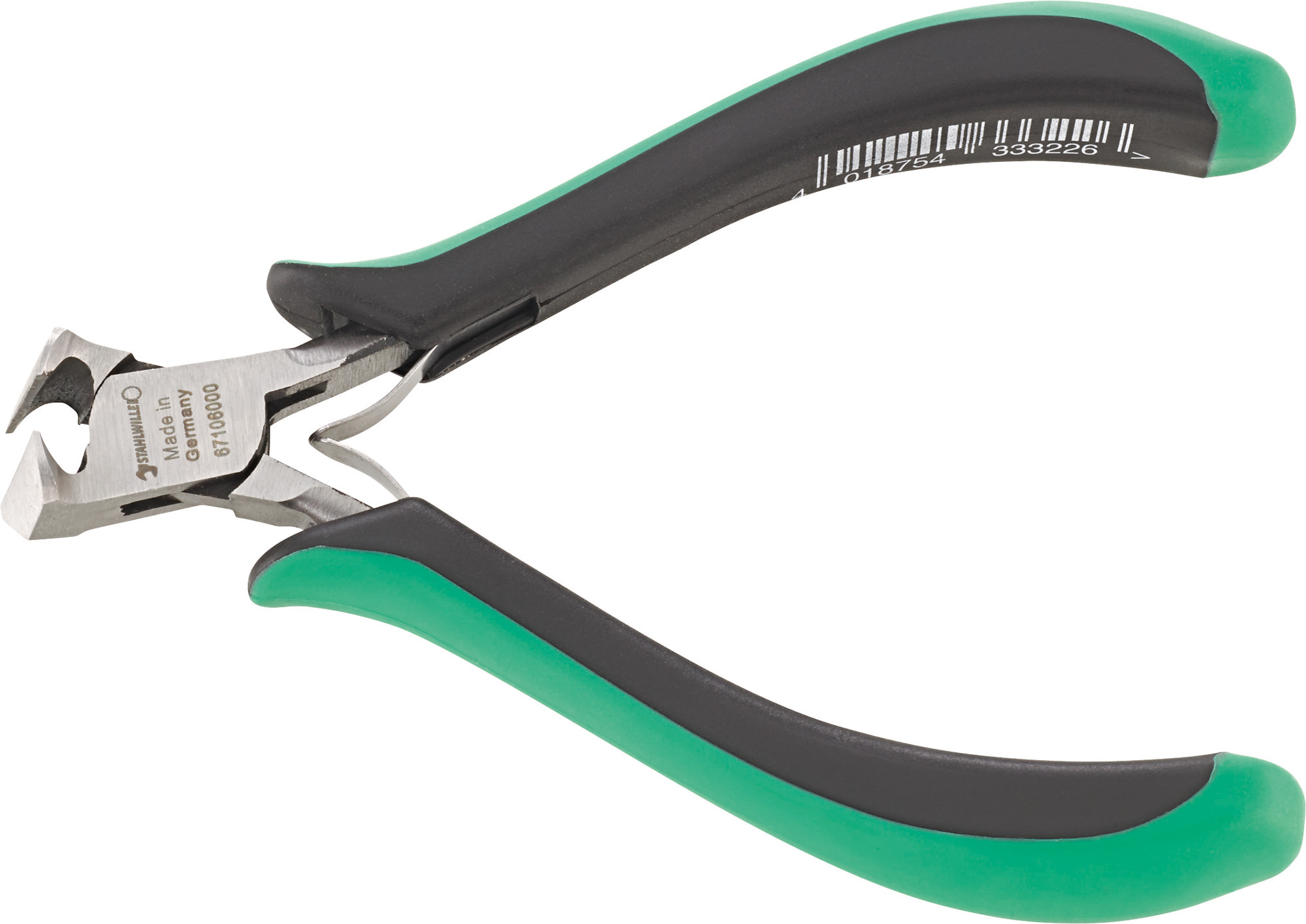

Electronic diagonal cutter
Electronic diagonal cutter
6710
- Cutting geometry rotated by 90° and angled sideways enables precise work e.g. on electronic boards.
- The box joint with zero backlash enables highest precision with a long lifetime.
- Self-opening and easy-running blades thanks to built-in double spring for gentle and smooth movements.
- Ergonomic thumb rest improves handling of the pliers.
- The 2-component handle ensures secure grip and accurate operation.
Produkt-Varianten

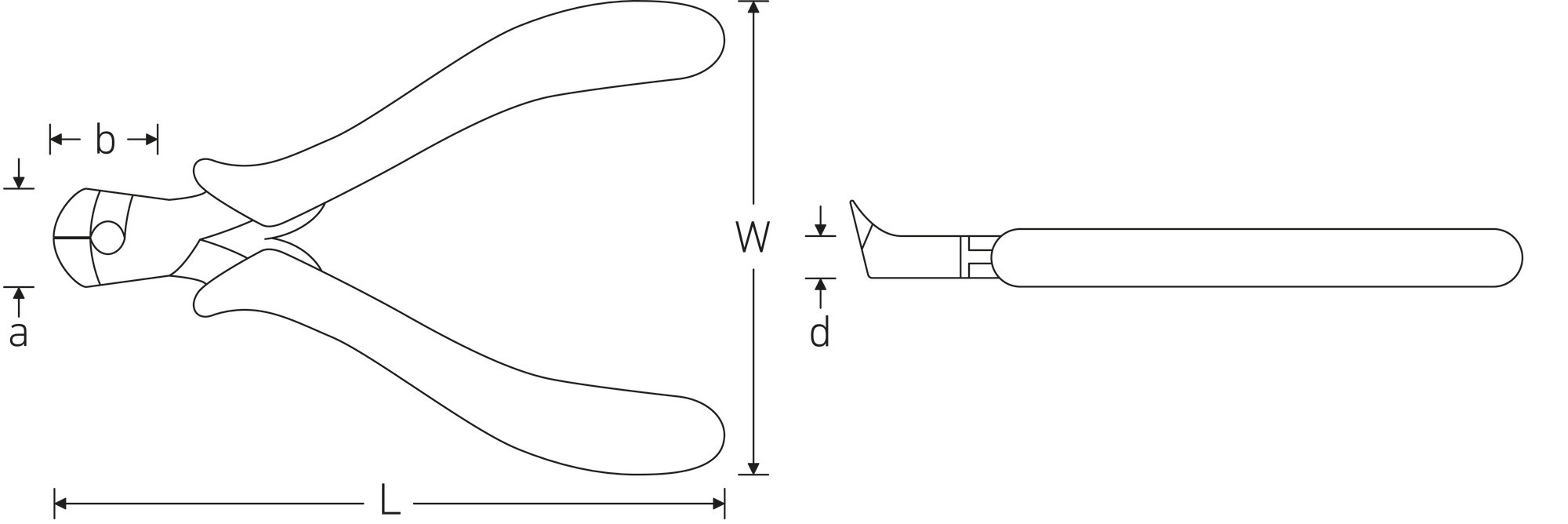

| Product no. | Length mm (L) | Width mm (b) | Soft wire (1) | Medium-hard wire (2) | Head | Handles | Head width-electronics-mm (a) | Head thickness-electronics-mm (d) | Head length-electronics-mm (b) | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 67106000 | 120 mm | 56 mm | 0,6 mm | 0,3 mm | polished | 2-component handles | 13 mm | 18 mm | 6 mm | 78 g |
Eigenschaften
- with 2-component handles
- extended handle cover for better slip resistance
- ergonomic thumb rest improves handling of the pliers
- DIN ISO 9654
- for demanding work in electronics / precision mechanics
- long cutting edge, 20° angle
- long service life, no play, push-through joint
- with double leaf spring for smooth movement
- cutting edges induction hardened to approx. 62 HRC
Produkt-Highlights

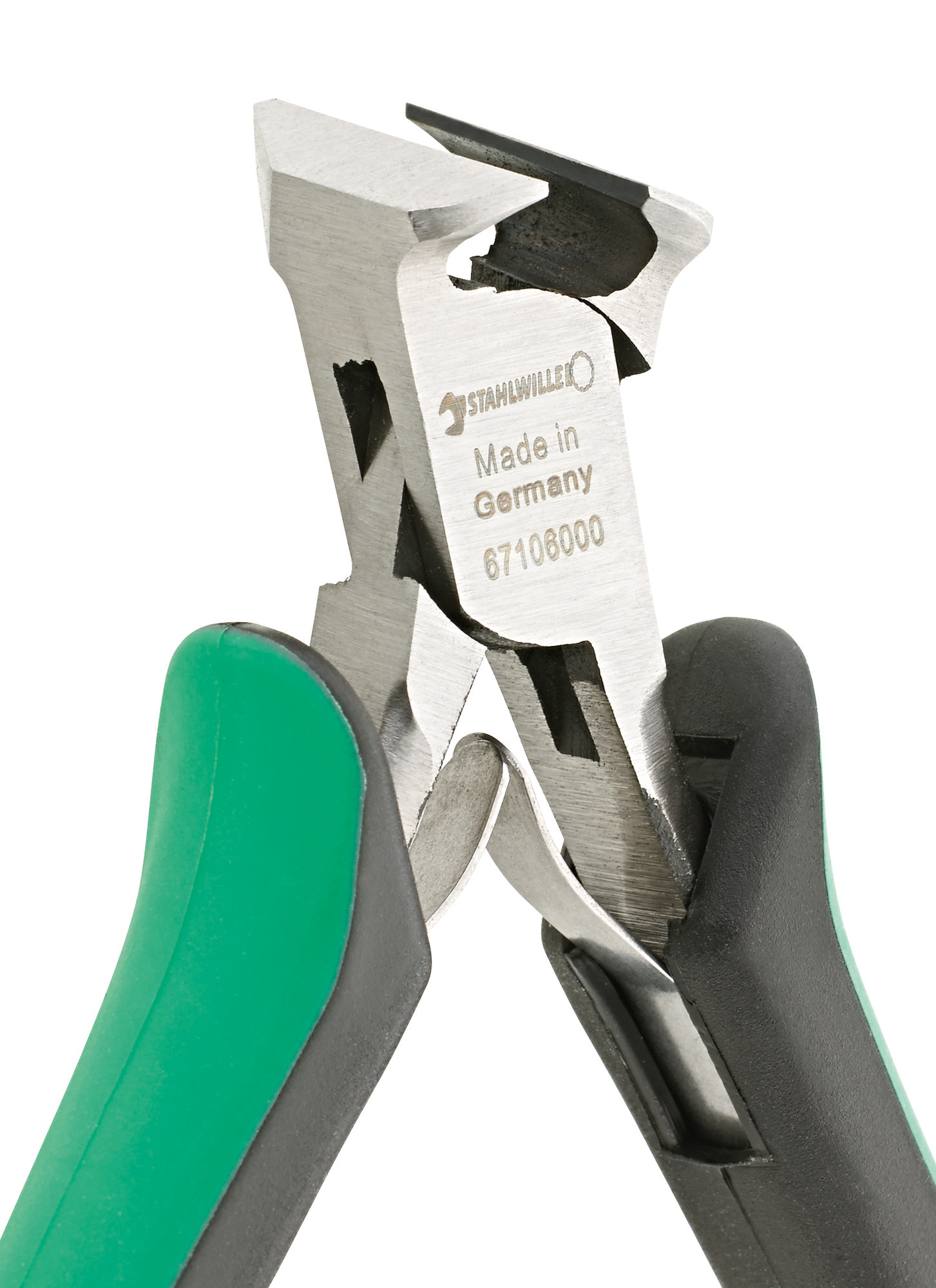

Optimised cutting geometry.

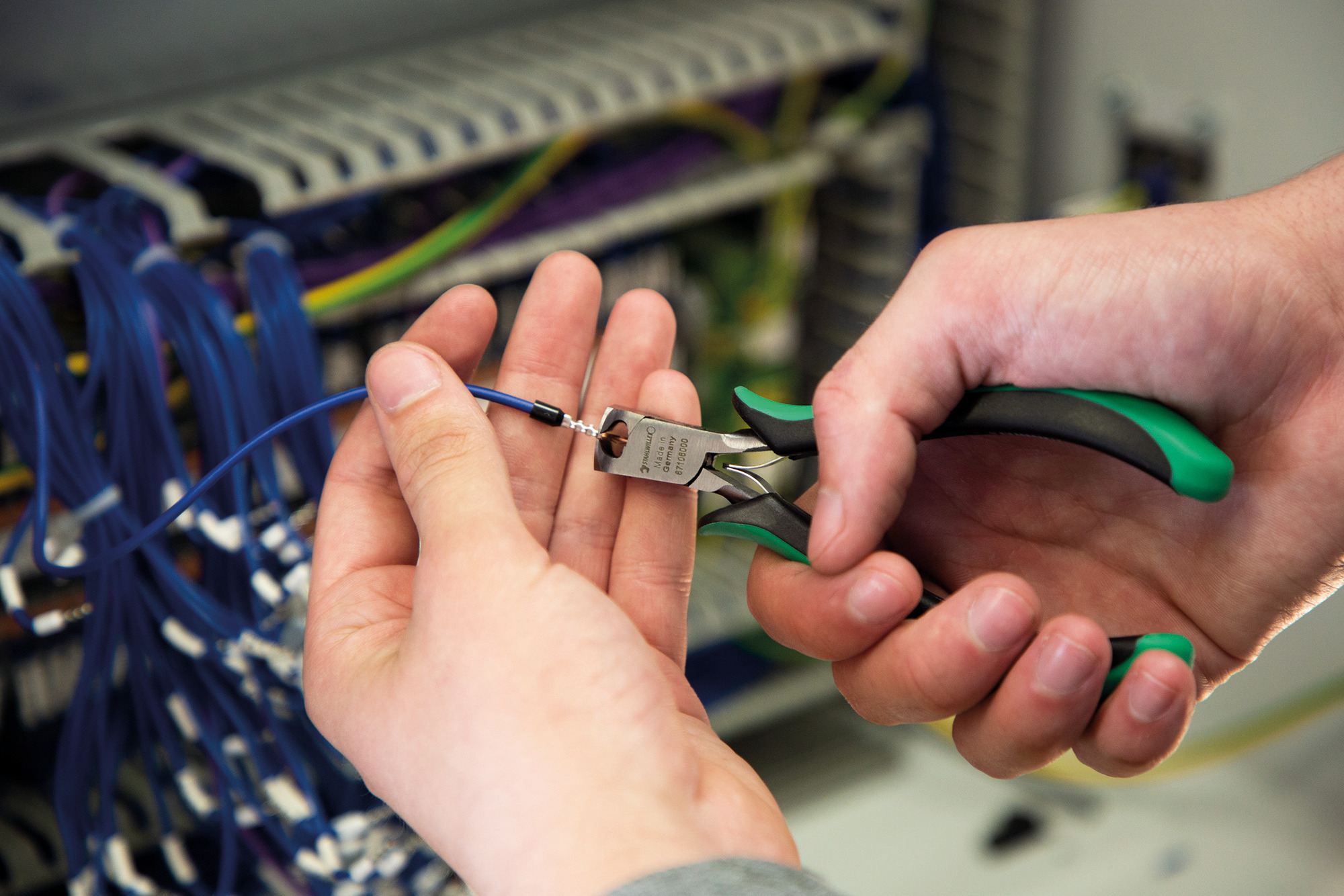

The cutting edges are rotated 90° and angled sideways. This special geometry facilitates precise cutting in certain situations, especially when working on boards or other flat materials where a particularly precise cutting angle is required.
Optimal handling.
The slim head of the electronics cutter means it can be used in confined work areas. The smooth-running double leaf spring joints reduce effort, while the extended handle covers with multi-component material provide improved slip resistance and added comfort.
Precision and durability.
The cutter is specially designed for the finest precision work. Its rigid box joint and sharp cutting edges guarantee precise cuts with different wire thicknesses. At the same time, the high-quality materials of the electronics pliers offer remarkable durability and service life.
Outstanding craftsmanship.
The tool is forged from high-quality steel which gives it outstanding stability and durability in continuous use.
