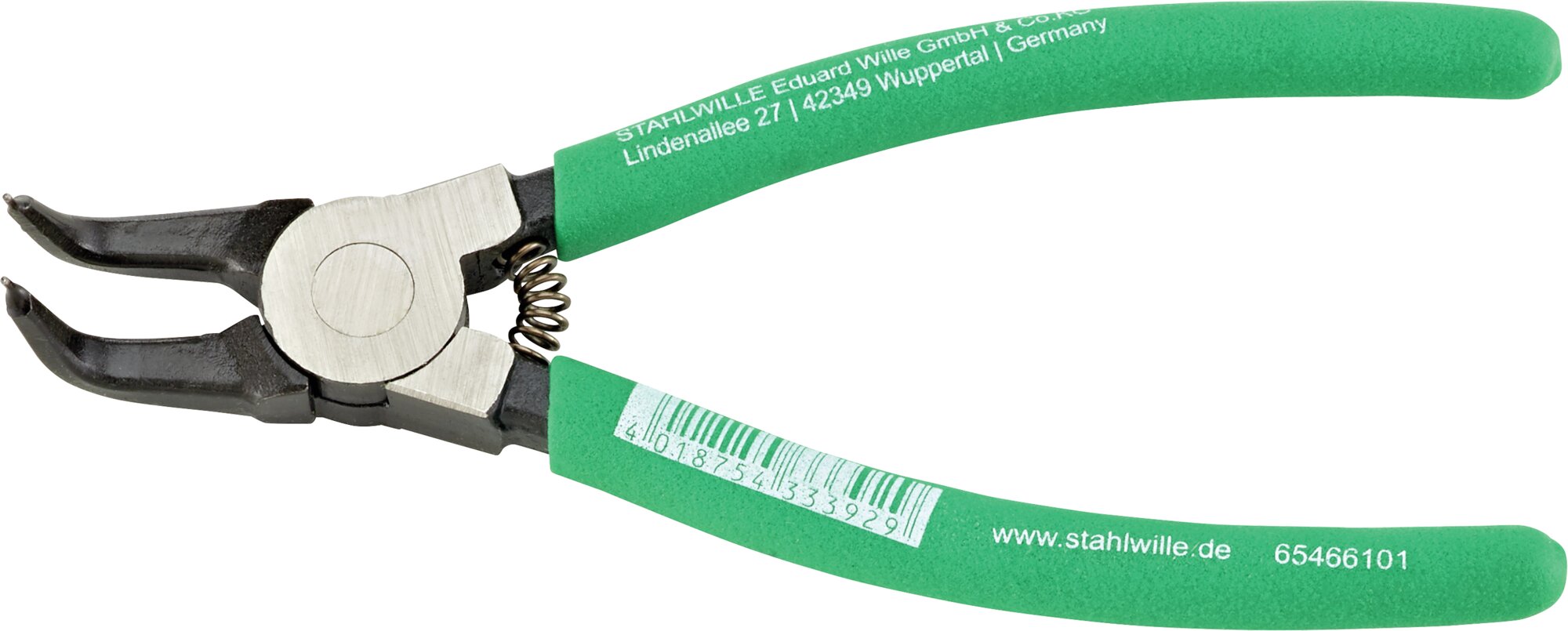

Circlip pliers for external circlips
Circlip pliers for external circlips
6546
Artikel-Nr. 65466101|EAN 4018754333929
- DIN 5254 B
- Angled jaws for easier work on components not directly accessible.
- Cylindrical precision tips for optimum gripping of retaining ring mounting holes.
- Anti-slip handles due to plastic coating with roughened surface
- Top of handle marked with ring type and diameter, inside of handle marked with EAN code.
Produkt-Varianten
| Product no. | Size | Length mm (L) | Head | Handles | for circlips | Tip diameter [mm] | Weight | |
|---|---|---|---|---|---|---|---|---|
| 65466101 | A01 | 125 mm | polished | dip-coated with sure-grip surface | 3-10 mm | 0,9 mm | 105 g | |
| 65466111 | A11 | 125 mm | polished | dip-coated with sure-grip surface | 10-25 mm | 1,3 mm | 105 g | Jetzt entdecken |
| 65466121 | A21 | 170 mm | polished | dip-coated with sure-grip surface | 19-60 mm | 1,8 mm | 160 g | Jetzt entdecken |
| 65466131 | A31 | 210 mm | polished | dip-coated with sure-grip surface | 40-100 mm | 2,3 mm | 236 g | Jetzt entdecken |
| 65466141 | A41 | 275 mm | polished | dip-coated with sure-grip surface | 85-140 mm | 3,2 mm | 468 g | Jetzt entdecken |
Eigenschaften
- DIN 5254 B
- circlip pliers with 90° angled jaws
- for gripping, inserting and removing outer rings on shafts or axles
- drop forged
- cylindrical precision tips
- with closing spring
- polished head
- plastic coated handle
