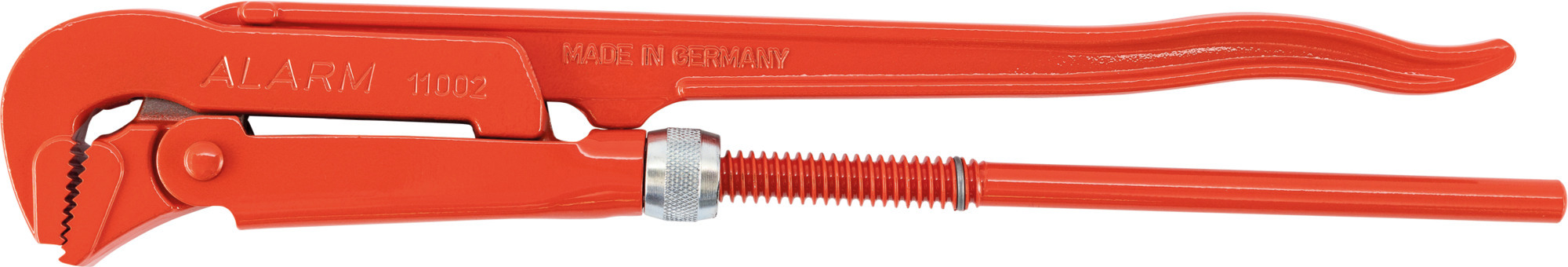

Swedish pipe wrenches 90°
Swedish pipe wrenches 90°
110
- Thanks to the 90° angled jaw shape, the pliers remain stable and parallel to the workpiece, even with large diameters.
- The adjustment screw allows for continuous and flexible adaptation to different workpiece sizes.
- The special 3-point support ensures a reliable grip, even on smooth or slippery surfaces.
- Made of durable Chrome Alloy Steel and additionally tempered for maximum durability and wear protection.
- For greater ergonomics and safety, the pliers are equipped with integrated pinch protection that effectively prevents crushing.
Produkt-Varianten
| Product no. | Model | Jaw opening max. (mm) | Length mm (L) | Header | Handles | Pipe diameter max. (inch) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
| 56011000 | 110 | 48 mm | 310 mm | Form C, according to DIN 5234 | Double T-profile handle, fully forged | 1 " | 780 g | Jetzt entdecken |
| 56011002 | 110 | 65 mm | 425 mm | Form C, according to DIN 5234 | Double T-profile handle, fully forged | 1.1/2 " | 1500 g | |
| 56011004 | 110 | 80 mm | 540 mm | Form C, according to DIN 5234 | Double T-profile handle, fully forged | 2 " | 2600 g | Jetzt entdecken |
| 56011006 | 110 | 115 mm | 685 mm | Form C, according to DIN 5234 | Double T-profile handle, fully forged | 3 " | 4900 g | Jetzt entdecken |
| 56011008 | 110 | 140 mm | 815 mm | Form C, according to DIN 5234 | Double T-profile handle, fully forged | 4 " | 5615 g | Jetzt entdecken |
Eigenschaften
- Form A, angled at 90°
- with optimum corner dimension for hidden and difficult-to-access screw connections
- secure hold thanks to 3-point support
- self-clamping on the workpiece
- safety clamp protection against crushing injuries
- adjusting nut secured against loss
- DIN 5234 A
Produkt-Highlights
Particularly stable support.
The 90° angled jaw shape ensures a particularly stable, parallel support on the workpiece. This is a great advantage, especially when working on pipes, fittings or larger diameters where conventional pliers quickly slip off. The induction-hardened teeth also ensure a permanently strong grip.
Safe, controlled power transmission.
The 3-point support guarantees a stable and reliable grip - even on slippery, lacquered or chrome-plated surfaces. Ideal for working on smooth metal pipes or sensitive materials where controlled power transmission is particularly important.
Self-clamping for one-handed operation.
The finely crafted, precise teeth ensure a firm bite into the material and enable controlled turning. Once applied, the Swedish pipe wrench clamps itself onto the pipe. This allows for effortless one-handed operation, which is particularly advantageous in confined or hard-to-reach areas, such as under the sink or in installation shafts.
